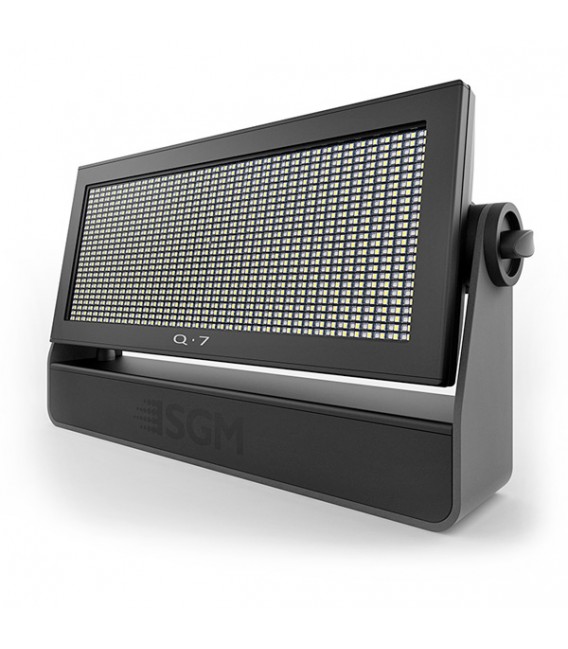

Flood/Blind/Strobe Light with 2000 RGBW SMD LEDs - IP65

More details

New

  • Black
  • White
  • Custom Custom

Availability: In Stock

3 330,00 €

You will not be charged VAT with your selected delivery address.

- +

  • I I I I I

    Description

    Q-7

    • 2000 x RGBW SMD LEDs
    • Color temperature of 5,700K
    • High output of 25163 lumens
    • 110º wide-angle coverage
    • Multifunction light : flood, blind and strobe
    • CTC linear control from 2000K - 10000K
    • Ultra-high-speed strobe effects
    • Accurate 16bit dimming performance
    • DMX, RDM and wireless control
    • IP65
    • Flicker-free
    • The SGM patented dehumidifier integrated
    • Optionnal barndoors and filters
    • Winner of the PIPA Award (Best Lighting Product of the Year 2015)
    Introduction of the Q-7 by SGM

    LED Technology

    The Q-7 is equipped with 2,000 high-power SMD RGBW LEDs to create a powerful and seamless wide-angle projection with a fast-feedback strobe effect. It is not only a powerful color-changing flood/blinder/strobe but also a precise dynamic white luminaire with 2000K - 10000K color temperature control. The LEDs expected lifetime is 50,000 hours.

    Wide coverage with optional accessories

    The 110º beam angle of the Q-7, not only creates a remarkable strobe effect over large stages, but also a wide and rich area of light for shorter-throw purposes. The Q-7 is designed to illuminate façades, theatrical scenery, and cycloramas with a symmetric and even light projection. Optional accessories like 4-way and 8-way barndoors and filter frames add extended control and customization capabilities.

    Performance over distance

    While the Q-7 achieves an impressive performance in any application, this robust and reliable luminaire has an optimum response in distances between 1 and 5 meters. When used as a flood light over surfaces, the Q-7 offers a bright beam range, not only in the horizontal plane, but also in vertical coverage.

    Dimming and color mixing

    One of the big demands of the lighting industry is a strobe/flood light with good dimming and calibrated color mixing. That is exactly what the Q-7 delivers. Extremely high quality throughout the deep saturates as well as in its reproduction of warm pastels and subtle cold hues. The high-output and the detailed tints are further enhanced through a superior color mixing for perfectly smooth color transitions.

    Continuous output and LED frequency control

    The Q-7 is intended to strobe and blind audiences, however, it is also the perfect luminaire to illuminate surfaces for long-term installs where a continuous output is needed. With the Q-7 the amount of light of the scenes will not diminish over the time. Another powerful feature of the Q-7 is the flicker-free performance and the ability to change the LEDs frequency, so they can match the shutter adjustments in cameras.

    Mounting options

    The Q-7 may be rigged by using one or two easy-fit omega bracket with ¼ turn fasteners. It comes supplied with a basic floor stand to increase stability, allowing users to access the omega locking points easily. Being fully RDM compatible, the Q-7 is ideal for installation in non-accessible locations. Multiple Q-7 units may be rigged with optional BCC-2 and BCC-4 brackets.


    Vidéos

    Beyonce - Kit de 750 Q-7 - Formation World Tour

    Présentation du Q-7


    About SGM

    THE SGM TECHNOLOGY

    IP Rating

    All SGM lights are protected by an IP rating of 65 or 66. The durable IP65-rating ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well. The IP-66 rating include the same protection, adding a protection against multi-directional, high-pressure water jets while the IP-65 is protected against low pressure.

    Dehumidification

    Every SGM light is equipped with an internal built-in dehumidifier protecting the fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks.

    SGM’s patented DEHUMIDIFIER, incorporated in the SGM product range, constantly removes trapped hydrogen from inside of the lighting fixture in a solid state electrolytic process with no moving parts. SGM’s DEHUMIDIFIER breaks down corrosive H2SO4 molecules, deriving from polluted air, and eliminates the effects hereof. Hereby, the unique process eliminates any risk of humidity, which would otherwise lead to condensation and corrosion.

    Thermal management

    To achieve optimum performance of the LEDs at all times, SGM lights are optimized to manage heat impact through SGM's unique thermal management technology.

    High power light-emitting diodes (LEDs) use up to 5,000 milliwatts or more in a single LED. However, most of the electricity in an LED turns into heat rather than light. In fact, about 70% becomes heat generation while only 30% becomes light. Therefore, in order to get more light from your LEDs, it is crucial to have efficient thermal management. The SGM technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. All SGM LED products consist of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters.

    ABOUT SGM LIGHT

    SGM company

    Originally founded in 1975, SGM brings more than 40 years of experience within the stage lighting business.

    In 2009, SGM decided to bring in industry pioneer Peter Johansen to head the new Research & Development center in Denmark, with the intention to transfer technology, previously only seen possible within stage lighting, into architectural lighting.

    With field expertise dating back to the invention of the smoke machine in the 70s, Peter Johansen, founder of Martin Professional, successfully established the company headquarters in Denmark in 2012, and followed by the introduction of an architectural division offering superior dynamic LED lighting, which comprises colors, strobe effects, pixel lights, positions, patterns, and gobos, in practically maintenance-fee fixtures.


    Related articles
    Novelty Group takes SGM to Solidays Festival

    Novelty Group takes SGM to Solidays Festival

    2016-08-11

    For the 2016 edition of the Solidays festival, Novelty groups chose SGM fixtures to light up the new Arena Club stage.

    SGM in pole position for Monaco Grand Prix

    SGM in pole position for Monaco Grand Prix

    2016-06-20

    This year, SGM products have been choosen to light the tunnel of the famous Grand Prix de Monaco

    Light Festival 2015 with SGM in Lyon

    Light Festival 2015 with SGM in Lyon

    2016-01-03

    Daniel Knipper, light designer of the Lyon light festival 2015, introduced his work "Regards" on the 8th of december...


    Specifications
    Optical
    Source lumineuse2000 x LEDs SMD RGBW
    Beam angle(s)110° fixe
    Photometric
    Total output22 500 lm (all LEDs on) - 2600 lm (red) - 5000 lm (green) - 1200 lm (blue) - 12 000 lm (white)
    Efficacity50 lm/W
    White temperature5700K
    Control & Program
    ProtocolUSITT DMX512A - CRMX - W-DMX™ G2/G3/G4/G4S
    Setting and addressingControl panel, RDM or RFID
    DMX channels3, 4, 6 ou 8
    Colour temperature control2000K - 10000K
    Wireless DMXLumenRadio CRMX
    Standalone modeQuick color - Up to 24 programmable scenes - Standalone mode programmable by RFID
    Connectivity
    Data (DMX)IP65 Neutrik HD locking XLR 5-pin cable, 0.5m
    Rigging possibilitiesFloor stand (included) or hanging (Omega clamps included)
    Mounting pointsTwo quarter-turn locking points
    OrientationAny
    Safety featuresFour times two quarter-turn locking points
    Minimum distance to combustible materials0.3 metre
    Minimum distance to illuminated surfaces0.3 metre
    Physical characteristics
    Height497 mm
    Width268 mm
    Depth122 mm
    Weight8.1 kg
    IP classIP65
    MaterialAluminium, tempered glass (lens)
    Environment
    Temperature range, Operating−40° to +50°C
    Temperature range, Start-up−20° to +50°C
    Temperature range, Storage−40° to +80°C
    CoolingActive, forced air, temperature-regulated, low noise
    Max. humidity98%
    Approvals
    2014/30/EU: EMC DirectiveEN 55103-1, EN 55103-2, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
    2014/35/EU: Low Voltage DirectiveEN 60598-1, EN 60598-2-17, EN 62471, EN 60529
    RoHS2 Directive2011/65/EU
    ULStandard 1573
    Additional information
    Included itemsTwo Omega brackets with 1/4-turn fasteners - Floor stand and screws - User manual - Wireless DMX antenna
    Fixture features
    Tilt0 - 190°
    DehumidifierBase / Head
    Power
    Consumption450W
    AC Power, nominal208 - 240VAC 50/60 Hz
    Maximum inrush current @ 240VAC20A
    Power factor0.99 PF (230V)
    PowerPower cable 1m with bare end
    I I I I I

    Accessories

    SGM

    A-4

    SGM

    Accessory Holder - Q-7 / X-5

    SGM

    Barndoor 4-way

    SGM

    Barndoor 8 way

    SGM

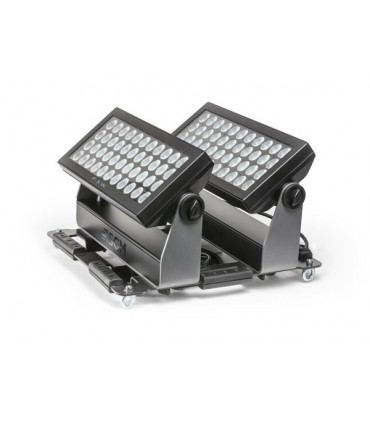

    BCC-2 Dual Bracket
