P-5

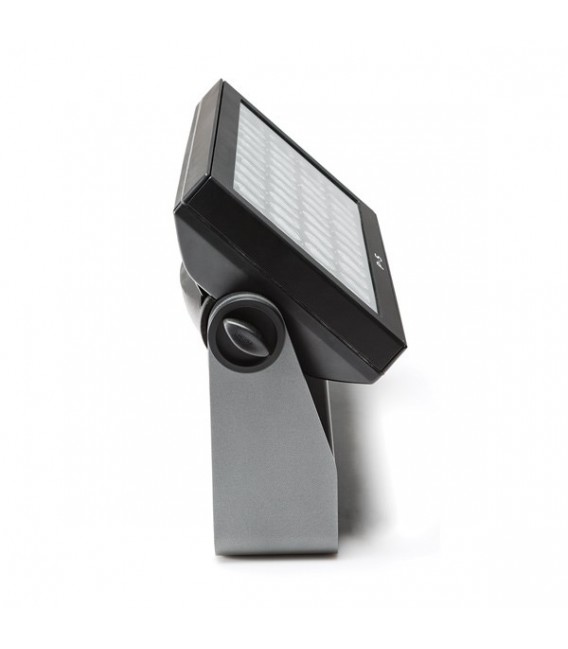

Introduction of P-5

LED Technology

The P-5 mounts 44 high-power 10W LEDs with RGBW in each of the 44 lens reflectors to deliver a bright and accurate beam projection. It is not only a powerful color-changing wash light, but also a precise dynamic white luminaire with 2000K - 10000K CTC color temperature control. The LEDs expected lifetime is 50,000 hours.

Optics

The P-5 is able to illuminate many different areas, since it allows the user to modify the beam angle with three precise and different interchangeable lenses. While the 43º lens kit delivers a nearly 1:1 performance for shorter or flood type applications, the 21º kit offers controllable coverage for medium throws. The 15º lens kit concentrates all the light output into a single point, to generate a powerful spot over longer distances. Optional 4-way and 8-way barndoors add even more control and accuracy.

Dimming and color mixing

Most lighting designers prefer the P-5 because of the way it creates and mixes color with no undesireble artifacts. No hotspots and no fading, just smooth uniform color shades. With this LED wash, it is, not only possible to achieve deep saturates, but also warm pastels and subtle, but rich, cold hues. The P-5's high-output performance is further enhanced through the detailed tints made possible by a superior color mixing system for perfectly smooth color transitions. The P-5 also includes a very accurate dimming performance at both high and low values, with no color shifts.

Photometrics

This powerful wash delivers 20031 verified lumens as maximum output with a 43º lens. However, one of the big advantages of the P-5 is the impressive brightness in colors. It outputs 4725 lumens in Red, 5806 lumens in Green, and 1353 lumens in Blue. This means a breathtaking amount of light for only 420W.

Performance at distance

While the P-5 is designed to achieve an impressive performance for any application, this reliable luminaire has an optimum response in distances between 5 and 25 meters. This impressive capability is possible by the powerful optical throw and the intelligently engineered physical construction of the P-5. The control options of the RDM compatible P-5 are further enhanced with its built-in Wireless DMX Receiver.

Mounting options

The P-5 may be rigged by using one or two easy-fit omega brackets with ¼ turn fasteners. It also includes a basic floor stand to increase stability, while allowing users to easily access the omega locking points. Being fully RDM compatible with Wireless DMX capability, the P-5 is ideal for those special installations in non-accessible locations. Multiple P-5 units may be rigged with the optional BCC-2 and BCC-4 brackets.
