Clearance

SGM

Q-10

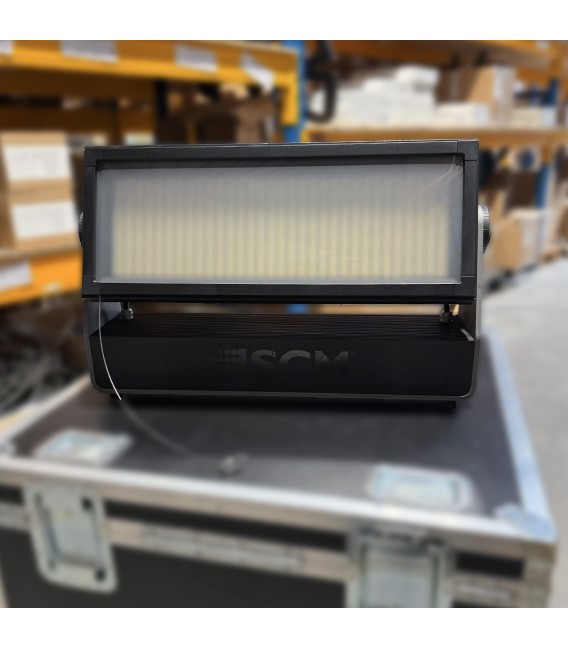

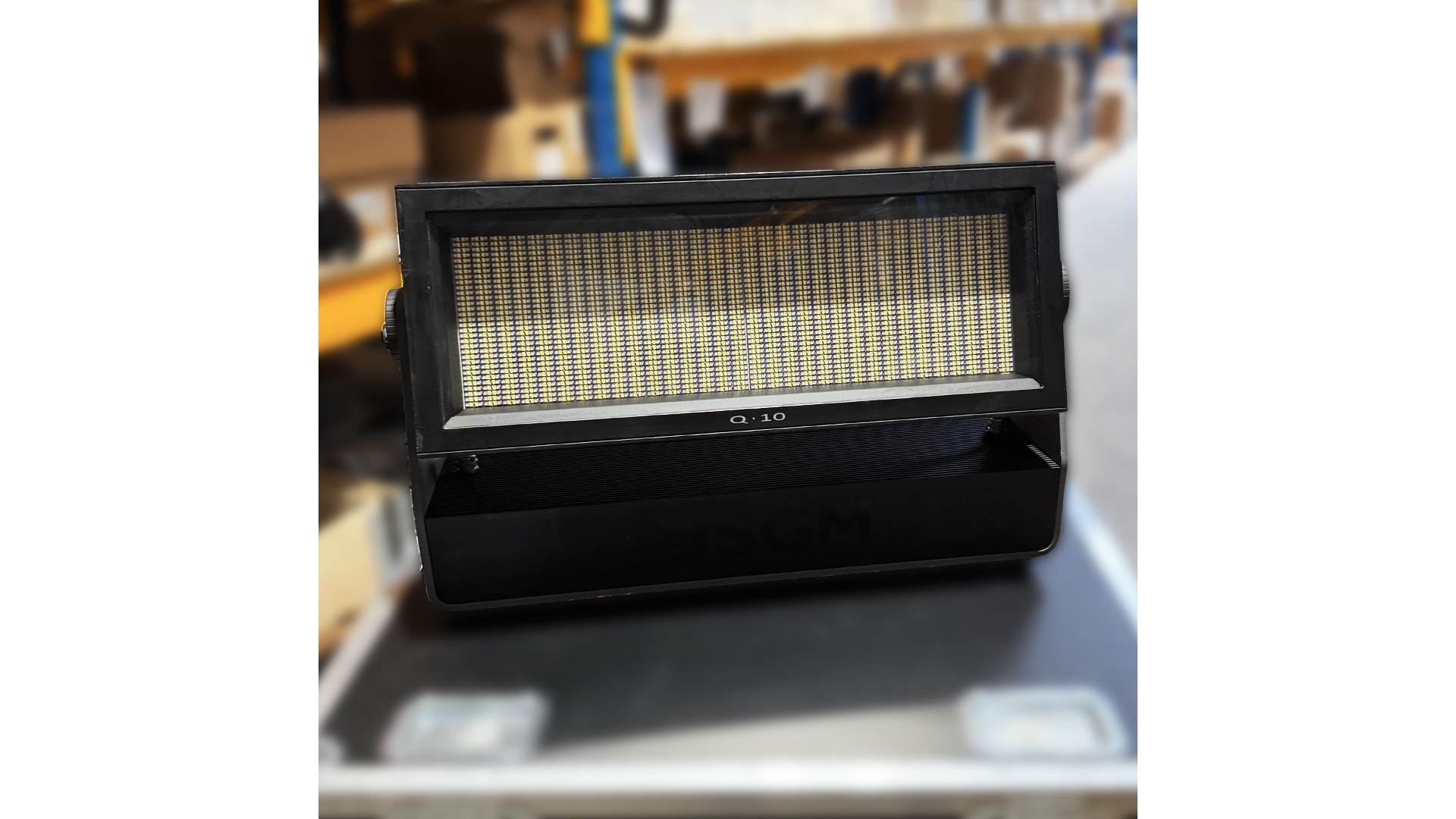

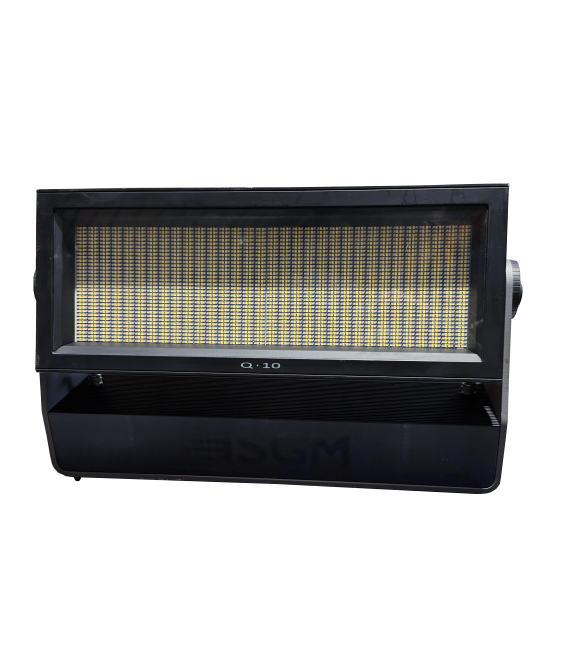

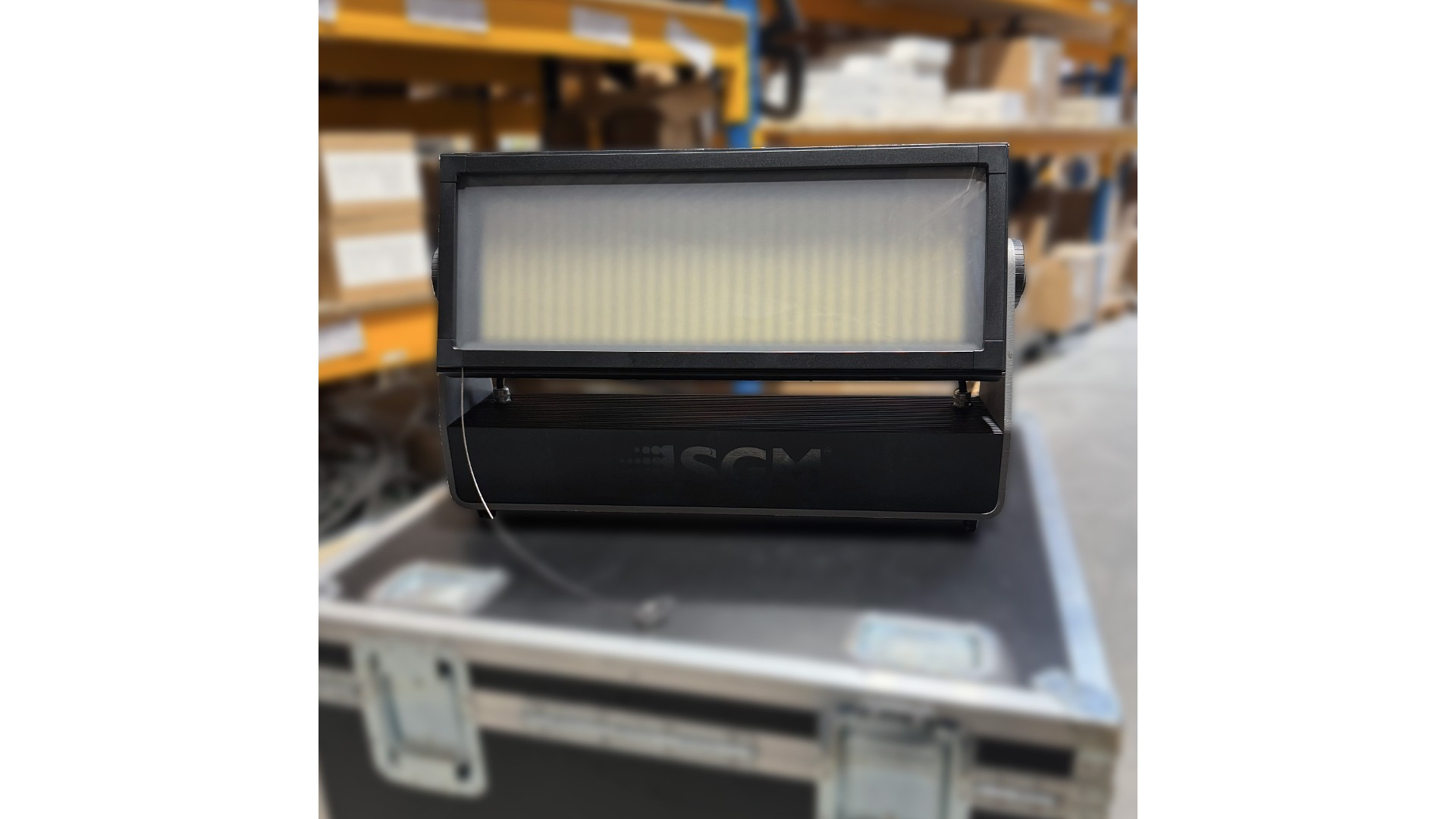

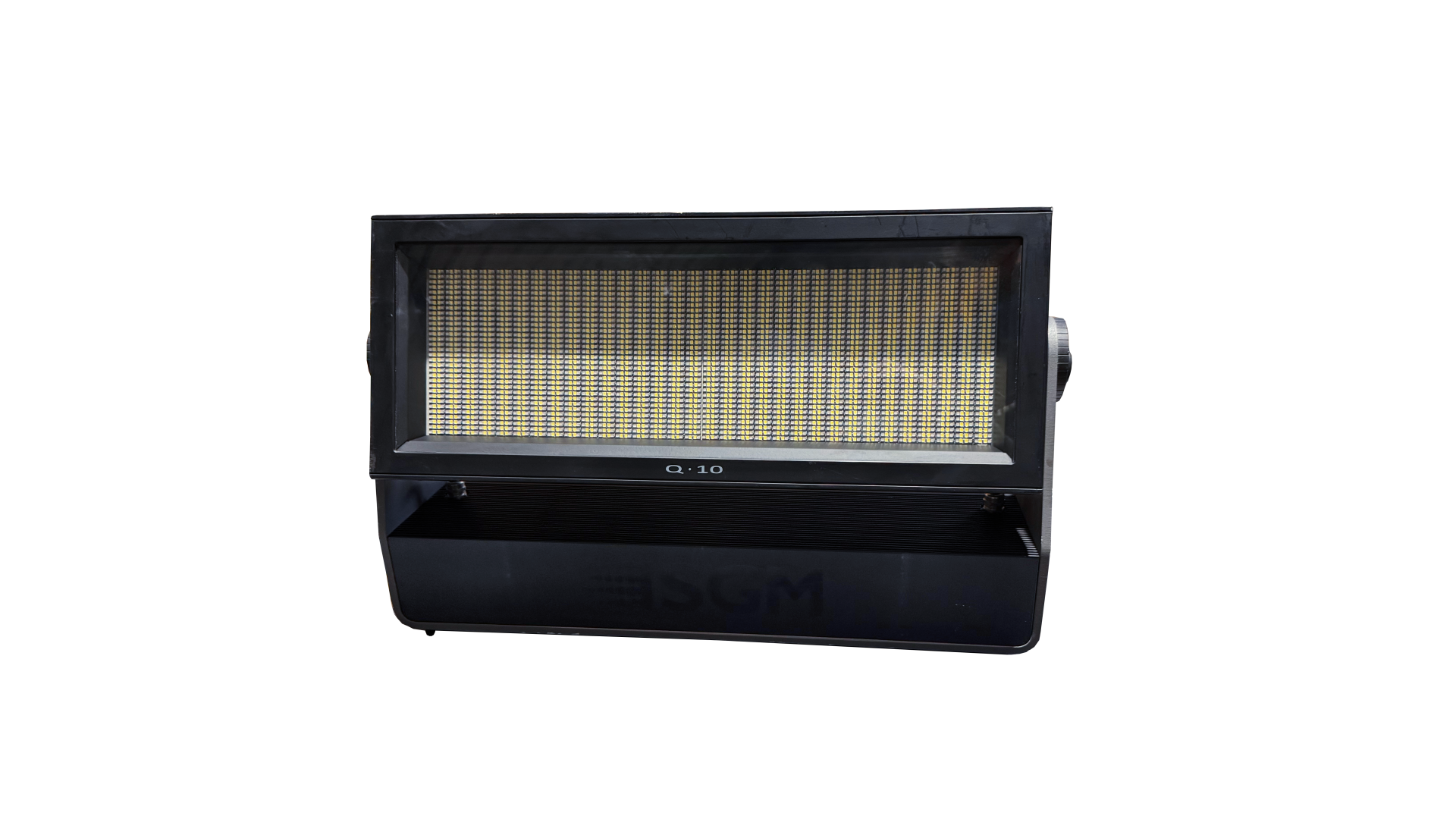

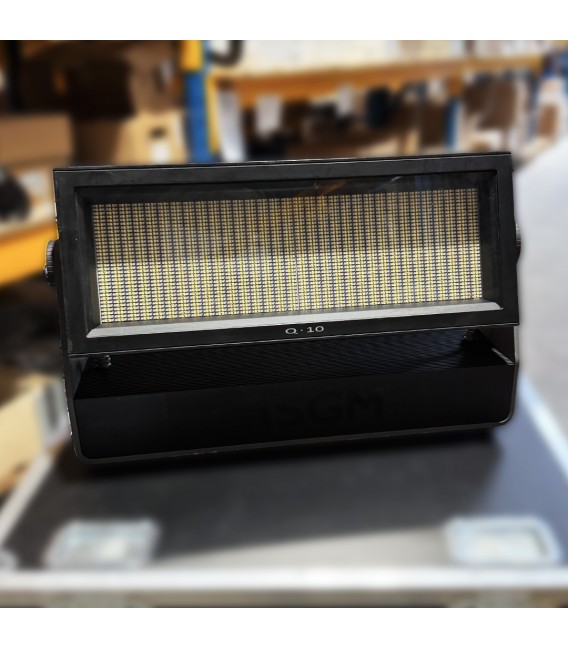

Static light with 2,048 x RGB LEDs + 2,048 x White LEDs - IP65 - Strobe/Flood/Pixel/Blind.

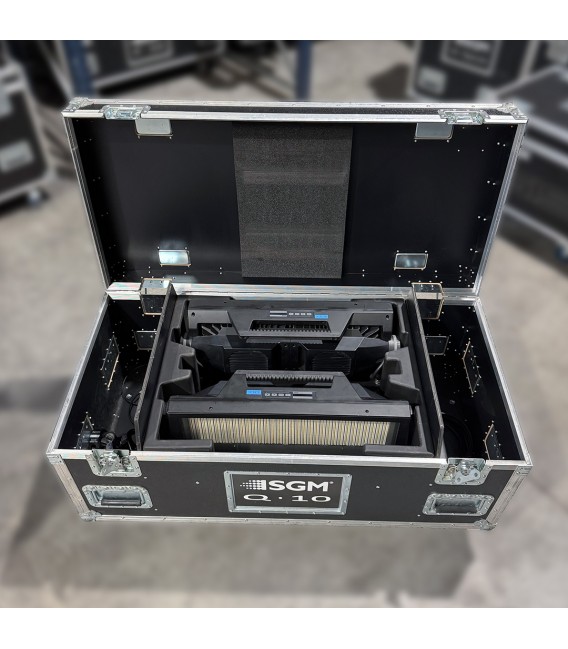

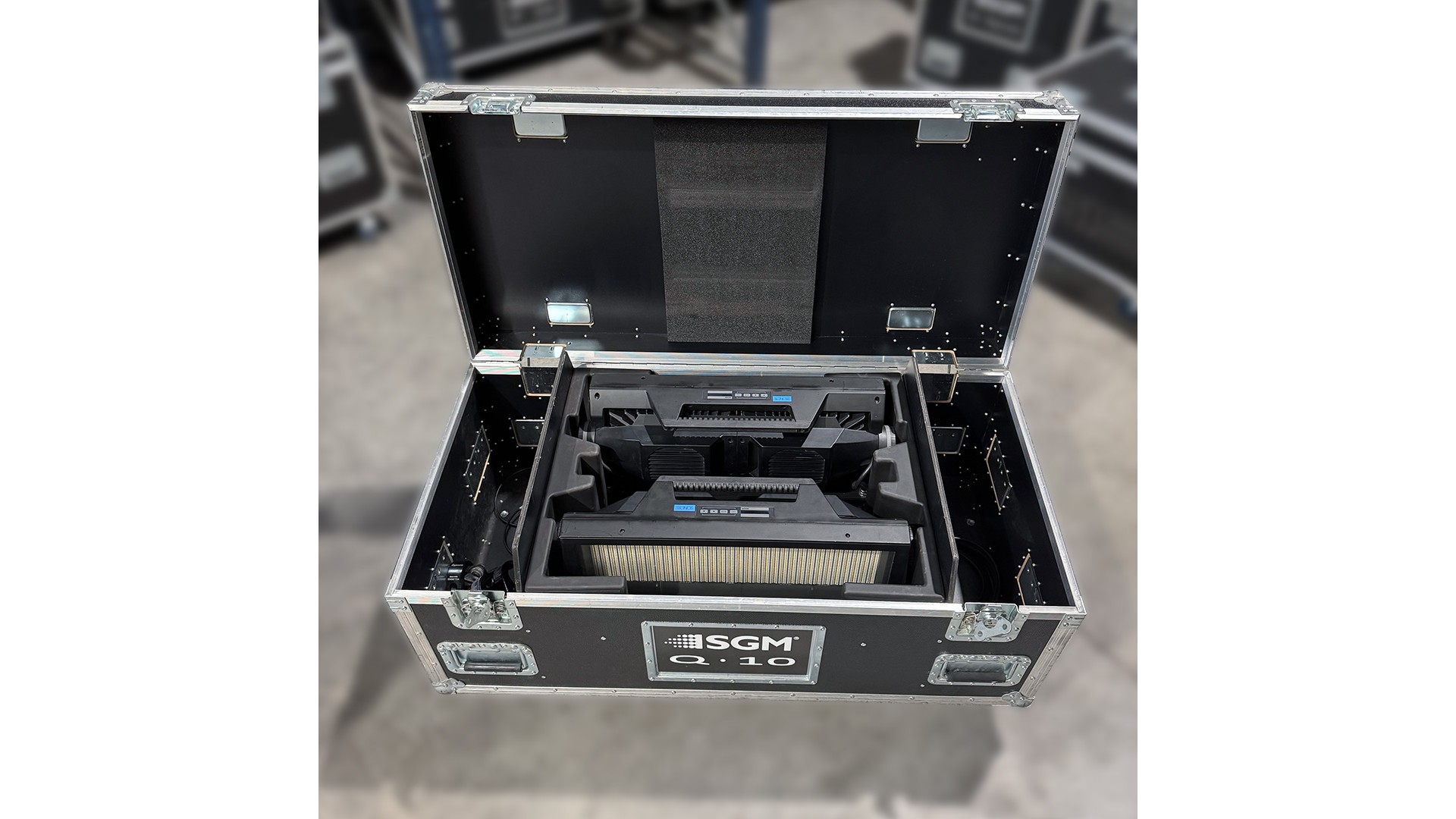

Used condition. Flight case for 2 units available.

Condition: Used

I I I I I

Specifications

Optical
Source lumineuse	2,048 x RGB SMD LEDs & 2,048 x white SMD LEDs
Beam angle(s)	110° fixe
Addressable pixels	8 individually controllable LED segments
Photometric
Total output	59878 lm (toutes LEDs), 2998 lm (bleu) , 15951 lm (vert), 5829 lm (rouge)
Efficacity	50 lm/W
Colour temperature range	2000K - 10000K
CRI	83
Physical characteristics
Height	702 mm
Width	402mm
Depth	206 mm
Weight	19,80 kg
IP class	IP65
Material	Aluminium, Steel, Plastic, PC/ASA, rubber
Environment
Temperature range, Operating	-40°C to 50°C
Temperature range, Start-up	-20°C to 50°C
Temperature range, Storage	-40°C to 80°C
Max. humidity	98%
Approvals
2014/30/EU: EMC Directive	EN 55103-1, EN 55103-2, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
2014/35/EU: Low Voltage Directive	EN 60598-1, EN 60598-2-17, EN 62471, EN 60529
RoHS2 Directive	2011/65/EU
Additional information
Included items	1 Omega bracket with 1/4-turn fasteners - 2 metres Power Cable with Neutrik TRUE1 powerCON - User manual
Fixture features
Tilt	0 - 190°
Dimming	Electronic
Strobe	Ultra-high-speed strobe effect (1-50Hz)
Dehumidifier	Base / Head
Control & Program

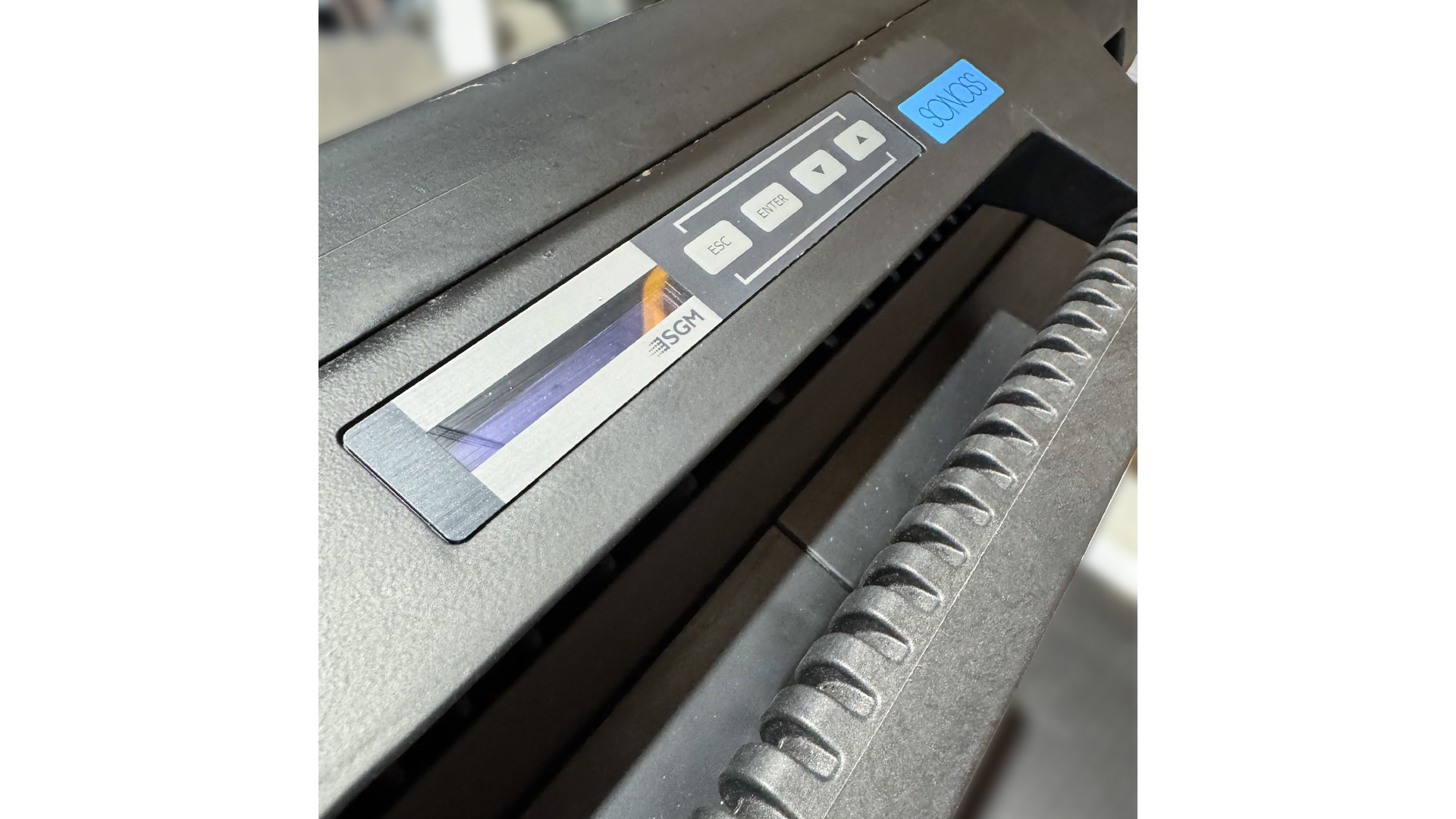

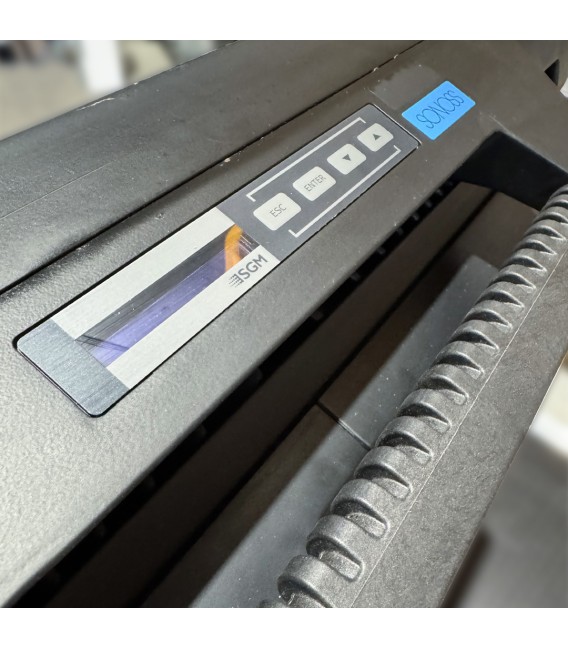

Setting and addressing	Control panel or RDM
DMX channels	6, 8, 10, 27 or 30
16-bit control	Dimmer & colors
Colour temperature control	2000K - 10000K

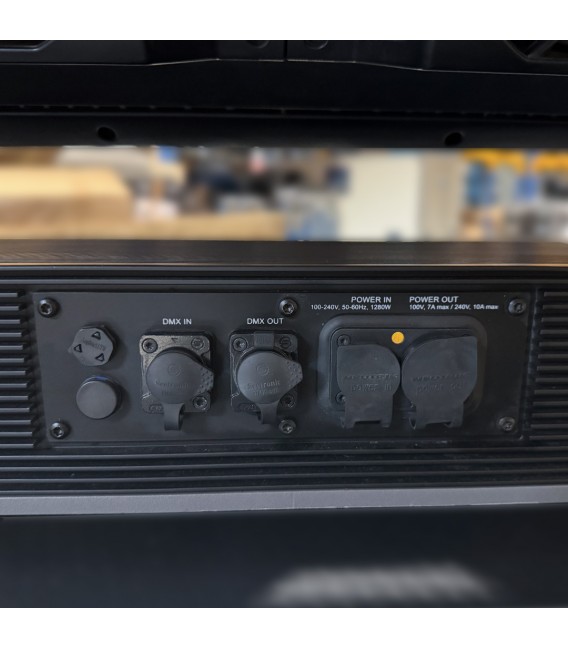

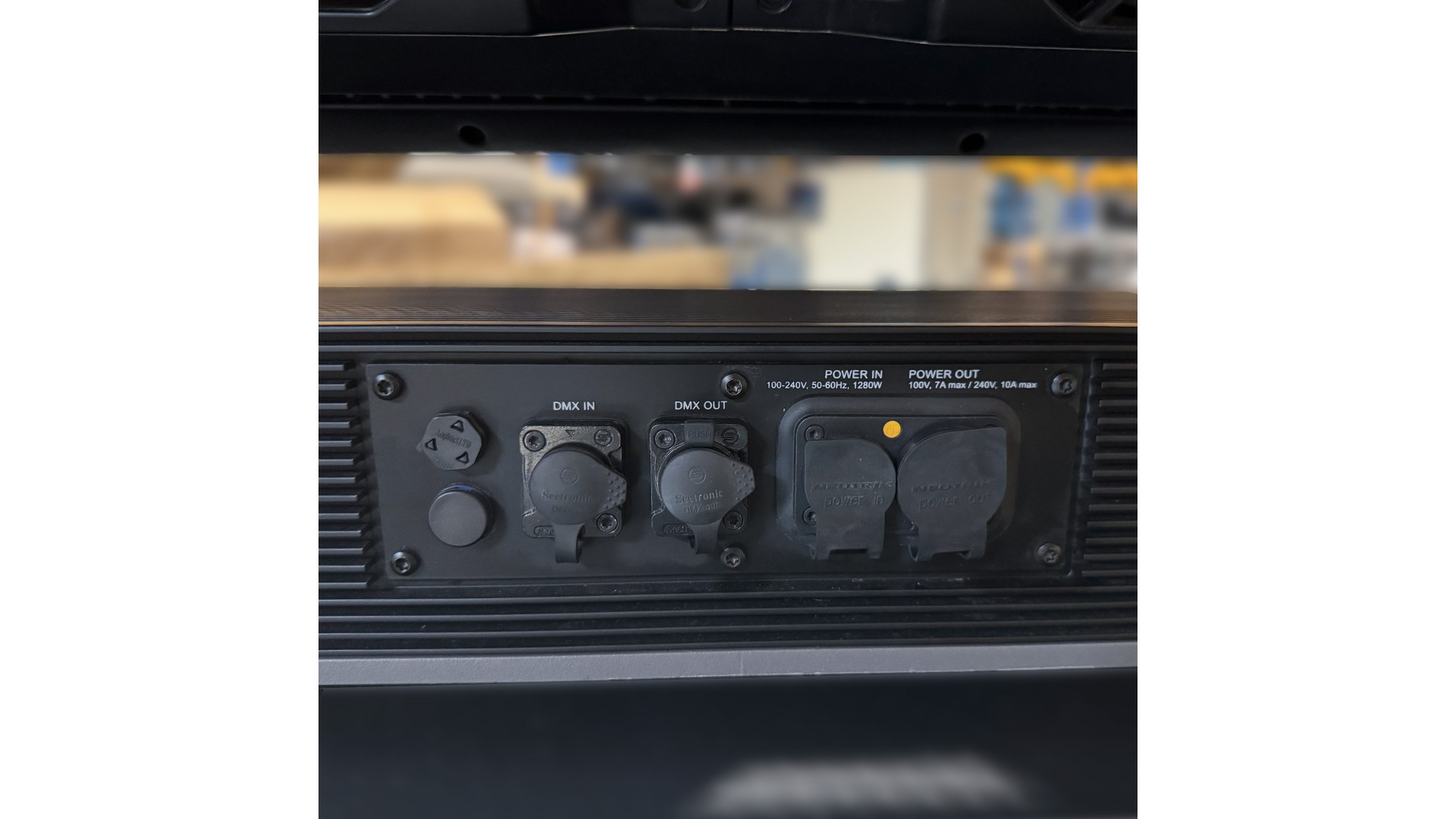

Cabled DMX	5-pin XLR input and output
Wireless DMX	LumenRadio with RDM
Standalone mode	Couleur rapide RGB - Jusqu'à 24 scènes programmables
Power
Consumption	1000W
Standby power	39W
AC Power, nominal	100 - 277VAC 50/60 Hz
AC Power, max. rating	90 - 305VAC 50/60 Hz
