| Optical | |
| Source lumineuse | 48 x LEDs RGBW 24W |
| Beam angle(s) | 10° |
| Photometric | |
| Total output | 39 690 lm (all LEDs) - 7 127 lm (red) - 13 535 lm (green) - 2 821 lm (blue) |
| Efficacity | 33 lm/W |
| Colour temperature range | 2000K - 10000K |
| Control & Program | |
| Protocol | USITT DMX512A - CRMX - W-DMX™ G2/G3/G4/G4S |
| Setting and addressing | Control panel or RDM |
| DMX channels | 6, 8, 10, 27 or 30 |
| Colour temperature control | 2000K - 10000K |
| Wireless DMX | LumenRadio CRMX |
| Power | |
| Power supply unit | Auto-ranging electronic switch-mode |
| Consumption | 1130W - 1400W maximum |
| Power factor | 0.99 PF (230V) |

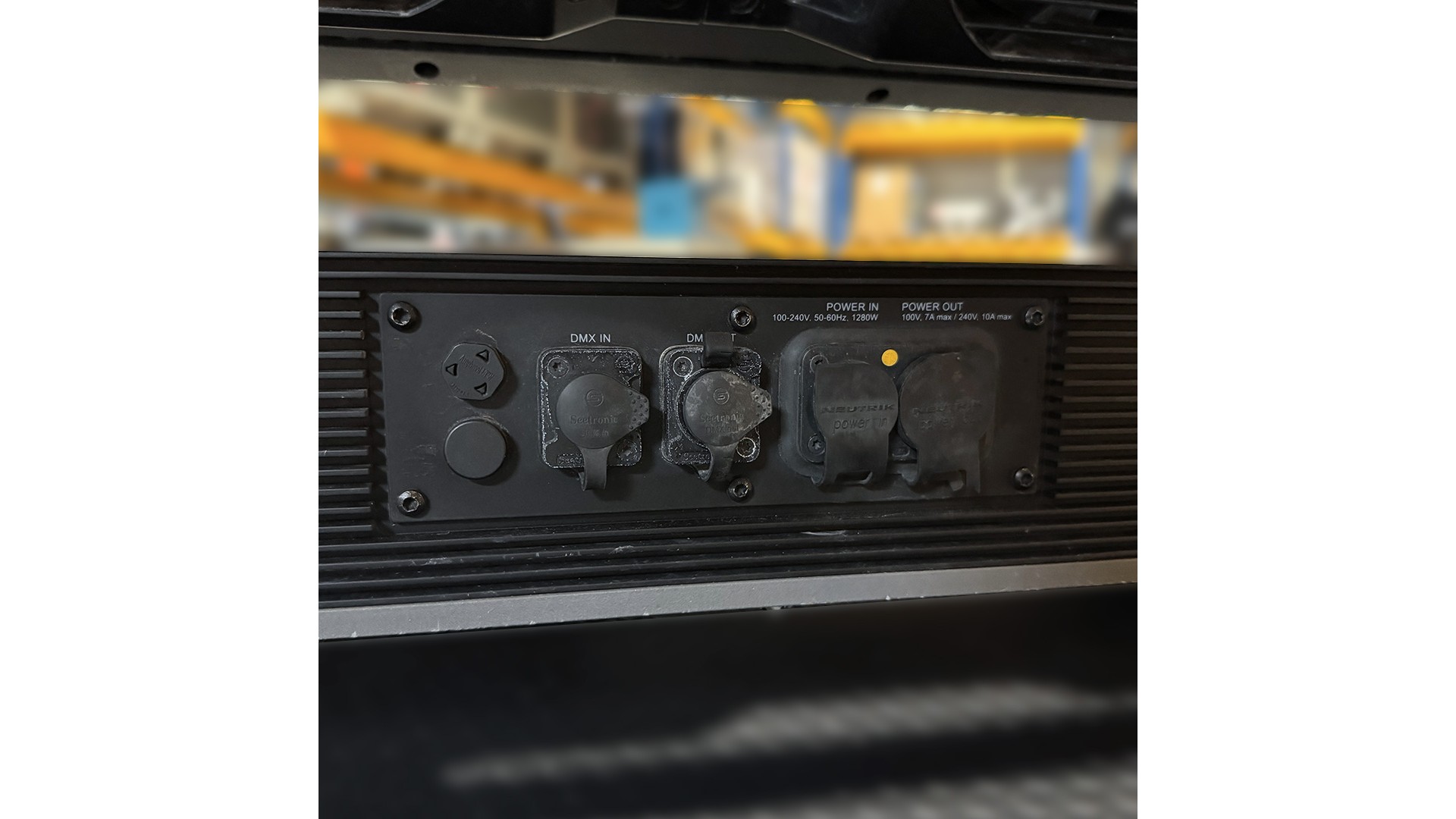

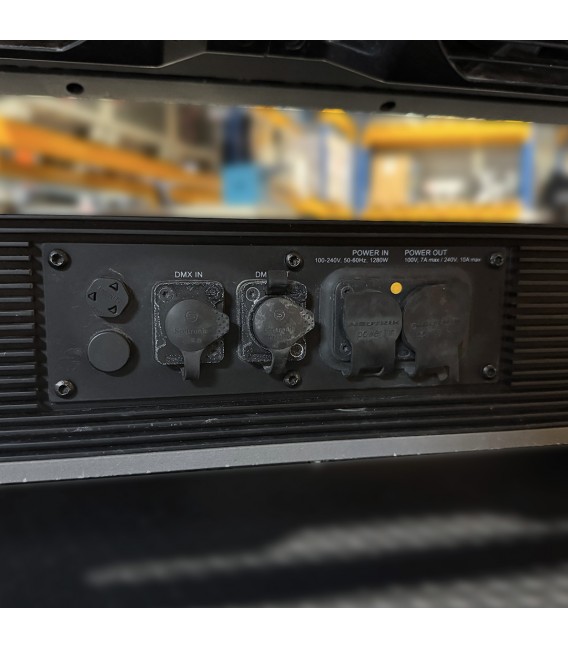

| DC Power | Neutrik powerCON TRUE1 |
| Physical characteristics | |
| Height | 402 mm |
| Width | 702 mm |
| Depth | 206 mm |
| Weight | 20.90 kg |
| IP class | IP65 |
| Environment | |
| Temperature range, Operating | −40° to +50°C |
| Temperature range, Start-up | −20° to +50°C |
| Temperature range, Storage | −40° to +80°C |
| Max. humidity | 98% |
| Fixture features | |
| Tilt | 0 - 190° |
| Dimming | Electronic |
| Strobe | Ultra-high-speed strobe effect (1-50Hz) |
| Mounting points | Two quarter-turn locking points |
| Orientation | Any |
| Safety features | Four times two quarter-turn locking points |
| Minimum distance to combustible materials | 0.3 metre |
| Minimum distance to illuminated surfaces | 0.3 metre |
P-10 - Colour filters emulation chart- 275.8 Kb
DMX chart for the emulation of LEE colour filters. Rev 1.1.
P-10 - DMX Chart- 411.7 Kb
Description of the channels for the 6, 8, 10, 27 or 30 DMX channels modes. Rev 0.91.
P-10 RGBW - Data Sheet- 40.5 Kb
