| Optical | |

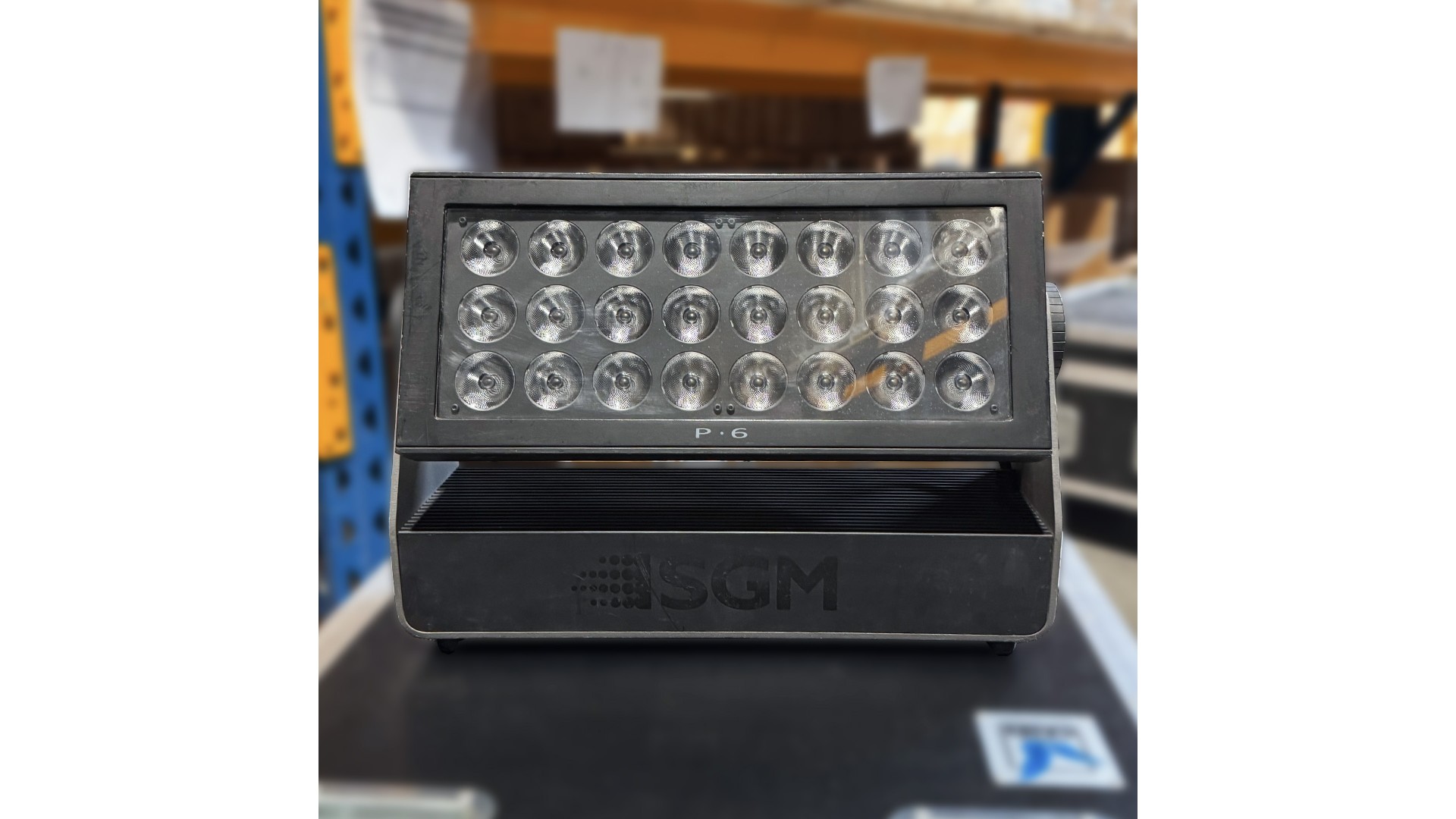

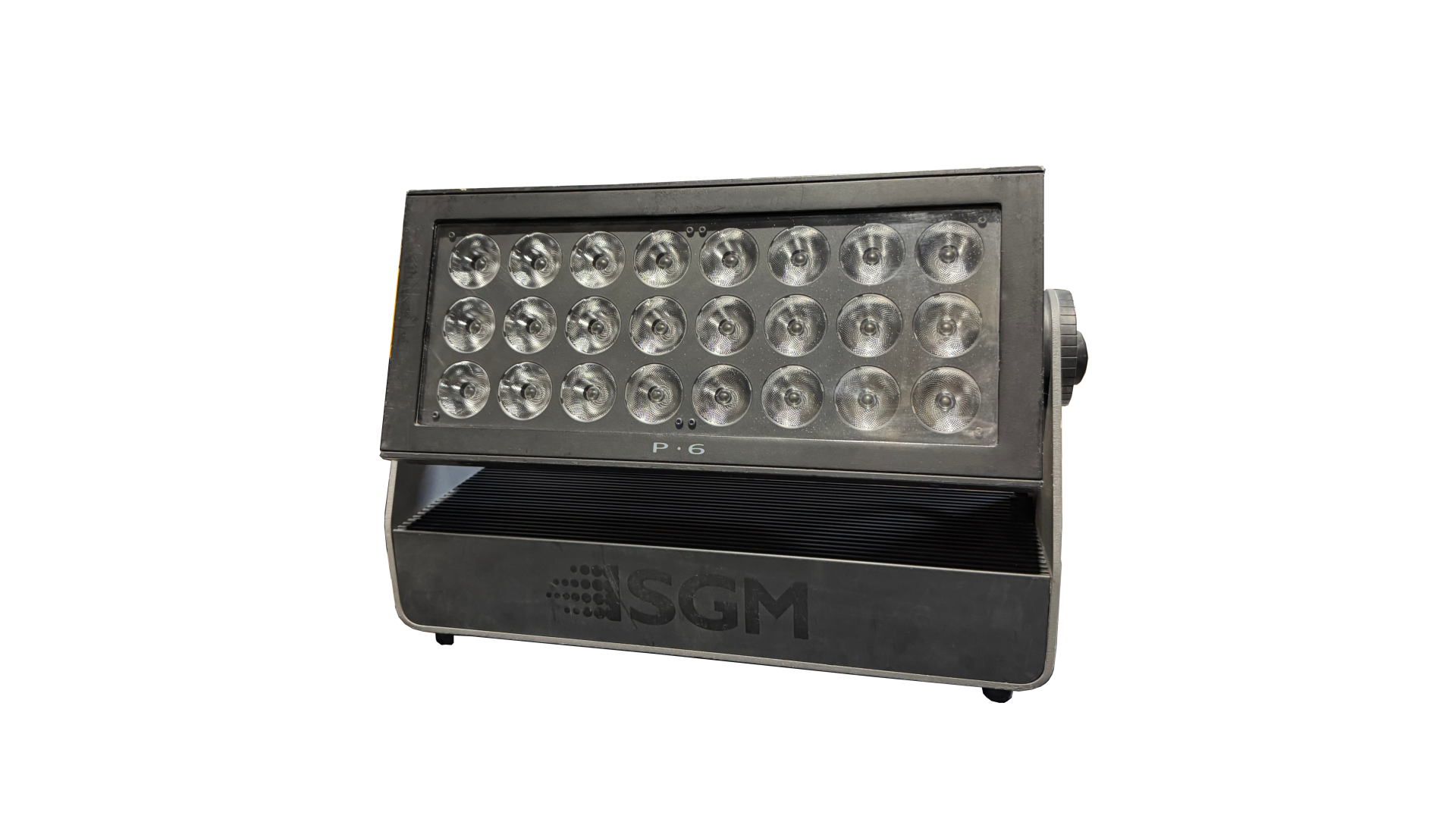

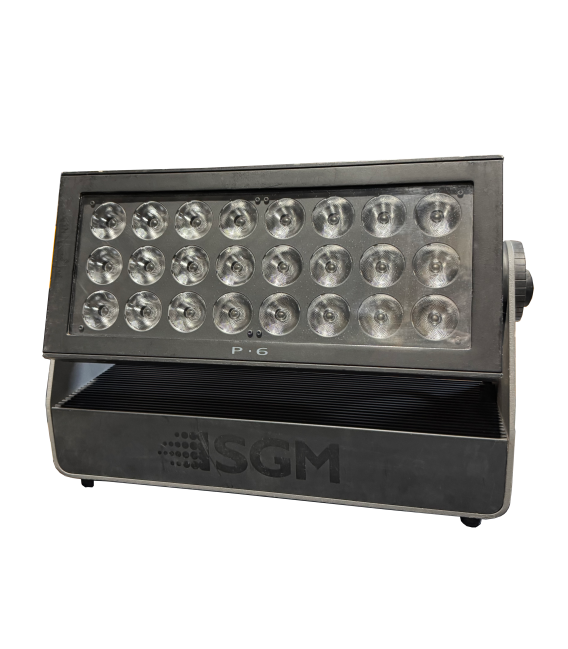

| Source lumineuse | 24 x 24W RGBW LEDs |
| Beam angle(s) | 11° (with 10° lens), 18° (with Med filter frame), 47° (with Wide filter frame) |
| Photometric | |
| Total output | 12000 lux à 5m |
| Efficacity | 36 lm/W |
| Colour temperature range | 2000K - 10000K |
| Physical characteristics | |
| Height | 320 mm |
| Width | 508 mm |
| Depth | 166 mm |
| Weight | 14.50 kg |
| IP class | IP66 |
| Material | Aluminium, PC/ASA, Caoutchouc et Acier |
| Environment | |
| Temperature range, Operating | −40° to +50°C |
| Temperature range, Start-up | −20° to +50°C |
| Temperature range, Storage | −40° to +80°C |
| Max. humidity | 98% |
| Approvals | |
| 2014/30/EU: EMC Directive | EN 55103-2 EN 55015 EN 61547 EN 61000-3-2 EN 61000-3-3 EN 55032 |
| 2014/35/EU: Low Voltage Directive | EN 60598-1, EN 60598-2-17, EN 62471, EN 60529 |
| RoHS2 Directive | 2011/65/EU |
| Additional information | |
| Included items | Two Omega brackets with 1/4-turn fasteners - 2 metres Power Cable with Neutrik TRUE1 powerCON - User manual |
| Fixture features | |
| Tilt | 220° |
| Dimming | Electronic |
| Strobe | Ultra-high-speed strobe effect (1-50Hz) |
| Mounting points | Four times two quarter-turn locking points |
| Orientation | Any |
| Safety features | Possibilité de passer une élingue de sécurité dans le crochet |
| Minimum distance to combustible materials | 0.3 metre |
| Control & Program | |
| DMX channels | 4, 6, 8, 9, 10, 18, 21, 24, 26, 27, 40 |
| 16-bit control | Dimmer & colors |
| Cabled DMX | 5-pin XLR input and output |
| Wireless DMX | LumenRadio with RDM |
| Standalone mode | Couleur rapide RGB - Jusqu'à 24 scènes programmables |
| Power | |
| Standby power | 10W |
| AC Power, nominal | 115 - 277V 50/60Hz |
| AC Power, max. rating | 100 - 305V 50/60Hz |
