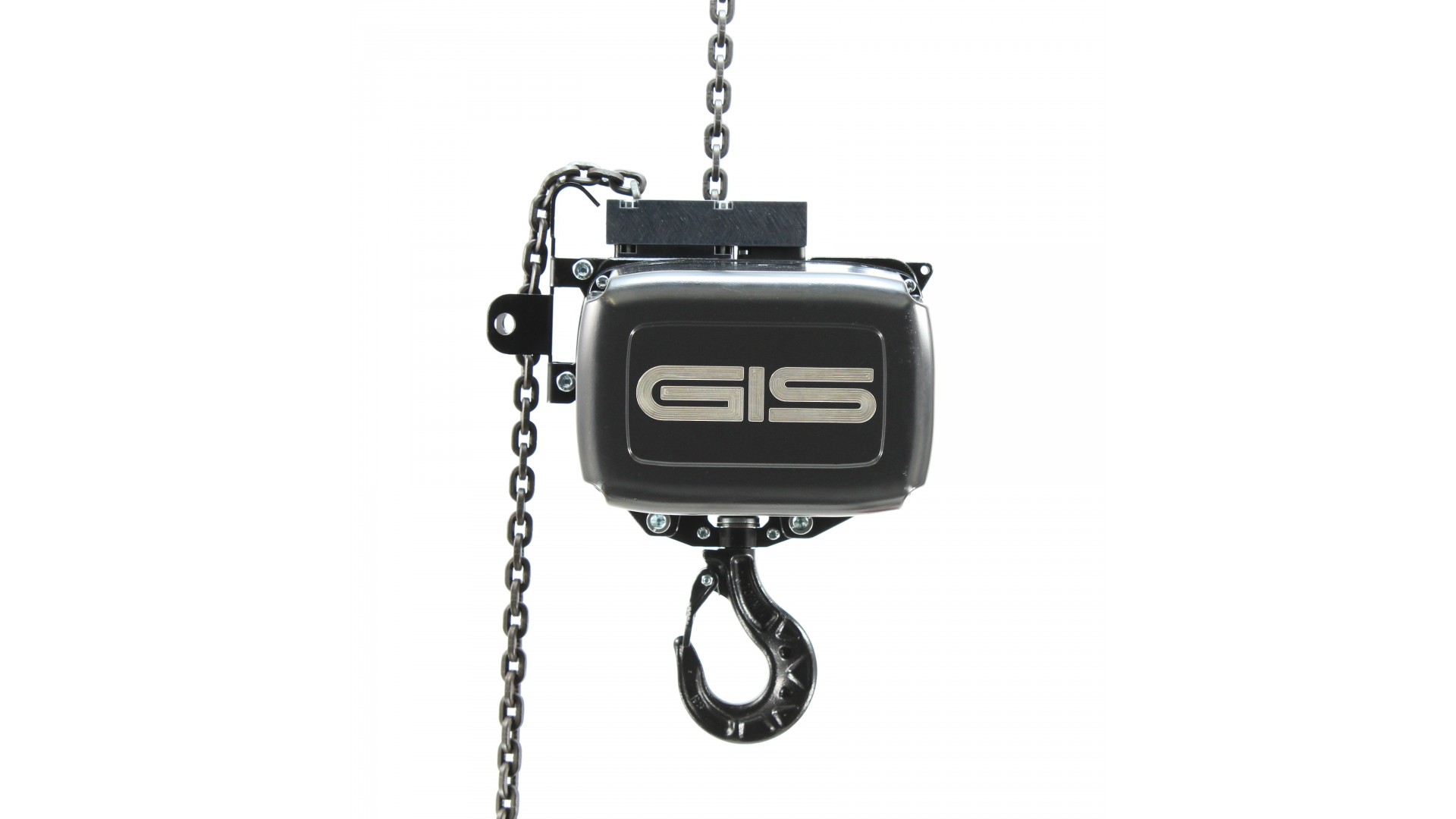

GIS

GIS

LP

Availability: On Order

1 830,00 €

You will not be charged VAT with your selected delivery address.

- +

  • I I I I I

    Dimensions

    Dimensions GIS LPM D8+

    A1B1B2C1C2H1
    293 mm414 mm24 mm162 mm133 mm519 mm

    Related articles
    Come & see us at JTSE Paris 2018!

    Come & see us at JTSE Paris 2018!

    2018-10-22

    The 27th & 28th of November, we will be happy to meet you on booth 158 during 2 days of the JTSE exhibition.

    Discover all our solutions at JTSE Paris 2017

    Discover all our solutions at JTSE Paris 2017

    2017-11-10

    We will exhibit our whole range at the JTSE 2017 in Paris on November 21 and 22. Meet us on our booth 104-107 !


    Specifications
    Motor features
    Load Capacity800 kg en D8 / 500 kg en D8+
    Lifting speed4 m/min ou 8m/min
    FEM class1Bm
    Insulation classF
    Noise level in operation60 dBA à 1m
    Motor HP0.55 kW en version 4m/min ou 0.72 kW en version 8m/min
    Chain specifications
    Chain dimensions5.25 x 15mm
    Approx. chain weight0.69 kg par mètre
    Electrical features of the hoist
    Power consumption (full load)1.8 A
    Physical characteristics
    Weight22 kg en D8 / 23 kg en D8+
    IP classIP65
    Hook specifications
    Hook opening24 mm

    Download(s)
    pdf

    GIS LP - Declaration of conformity- 852.6 Kb

    Declaration of conformity to European Standards.


    pdf

    GIS LP - Dimension drawings and specs- 952.5 Kb

    2D drawings with dimensions and specifications for D8, D8+ and C1 versions


    pdf

    GIS LP - User manuel- 5.3 Mb

    Instructions of use in French for the LP500 hoist series.
