| Physical characteristics | |
| Height | 154 mm |
| Width | 220 mm |
| Depth | 522 mm |
| Weight | 32 kg |
| IP class | IP66 |
| Motor features | |

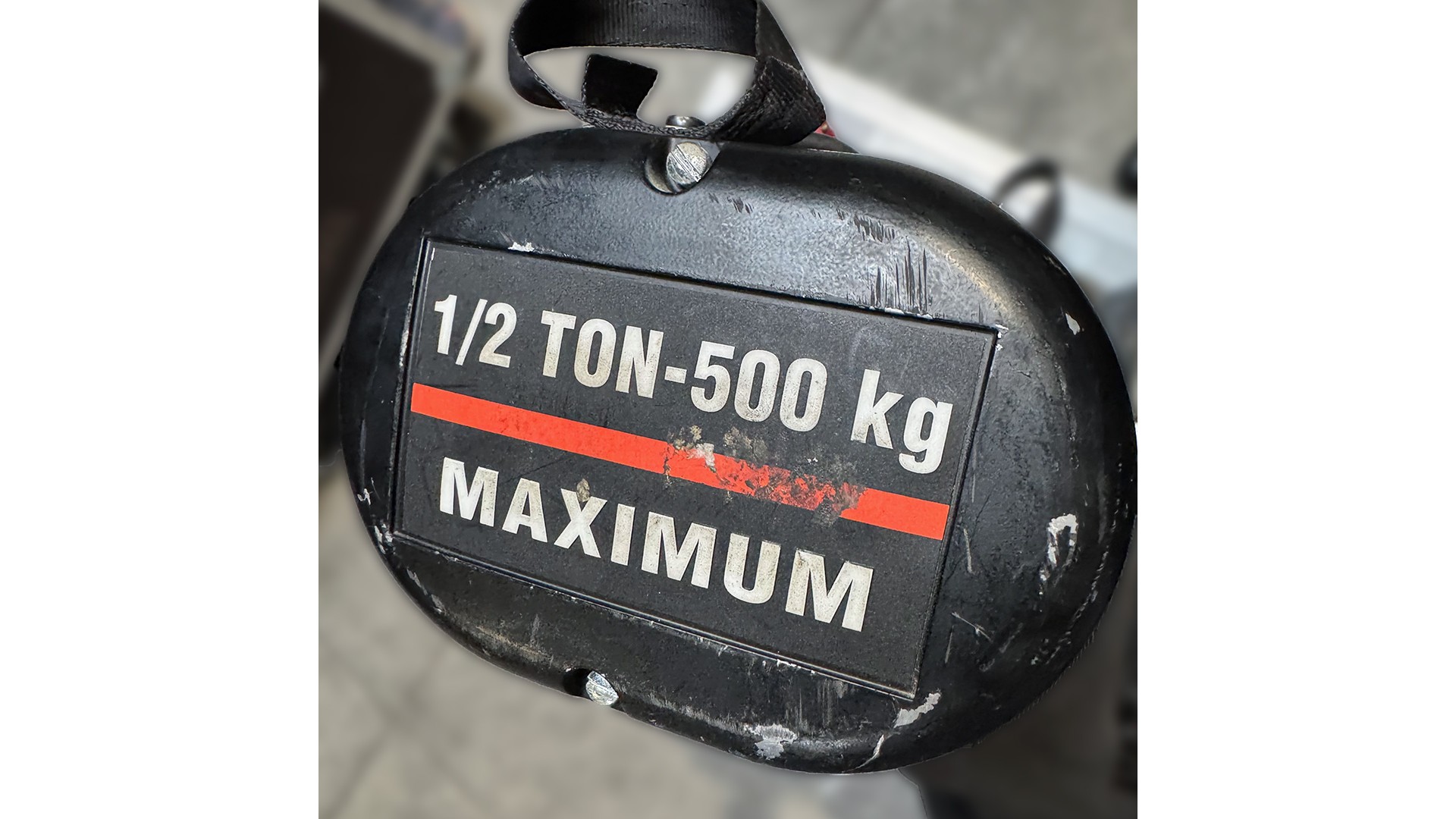

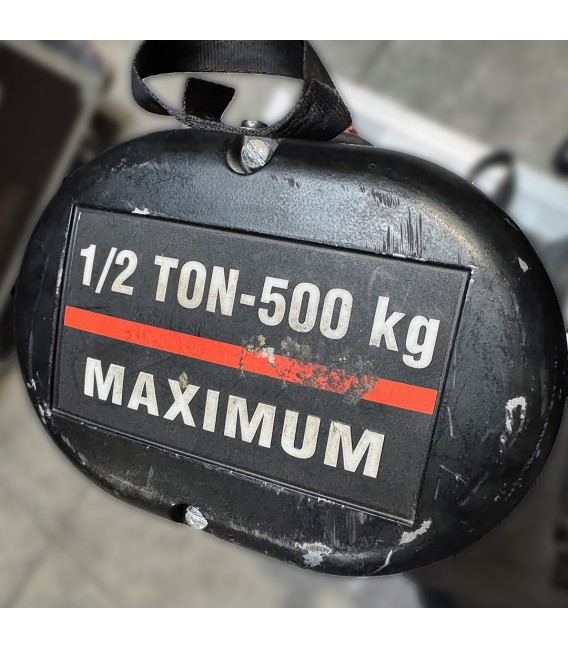

| Load Capacity | 500 kg |
| Lifting speed | 4m / min |
| FEM class | 2M |
| Noise level in operation | 68 db |
| Duty factor | 40% |
| Motor HP | 1/2 HP |

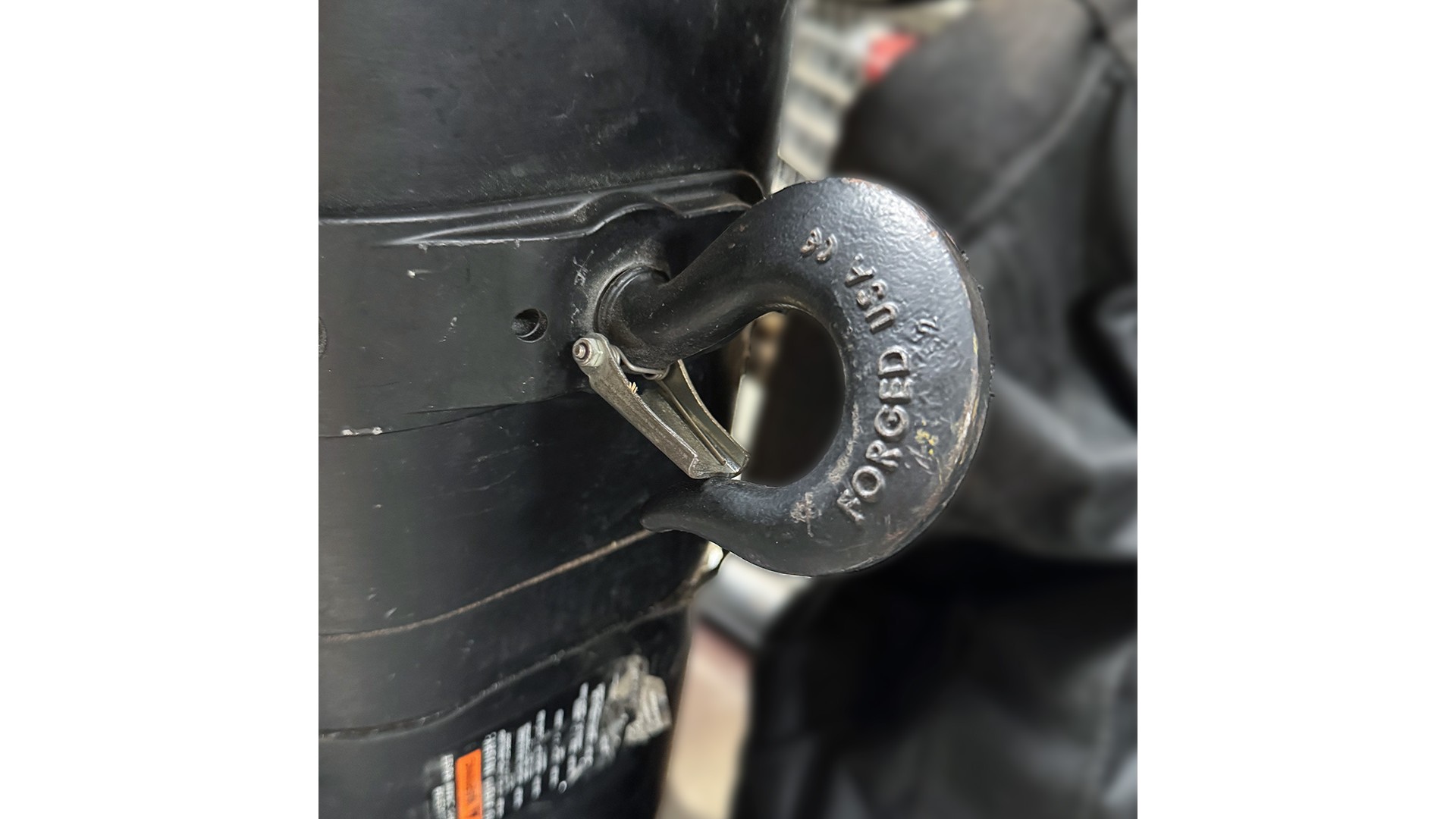

| Hook specifications | |

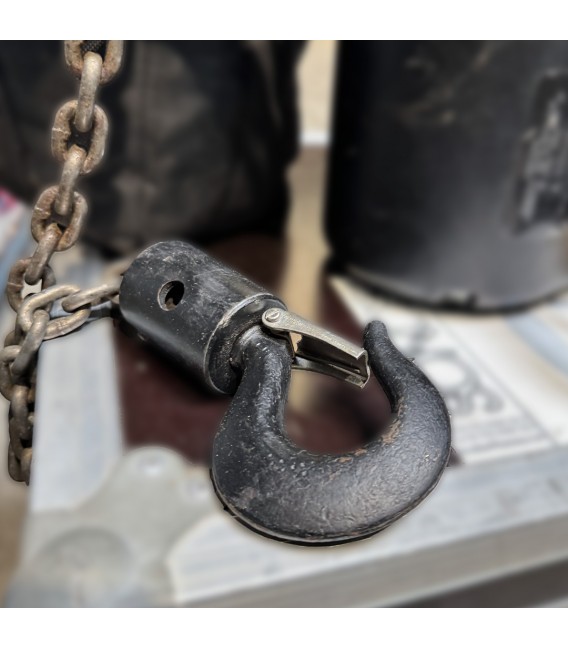

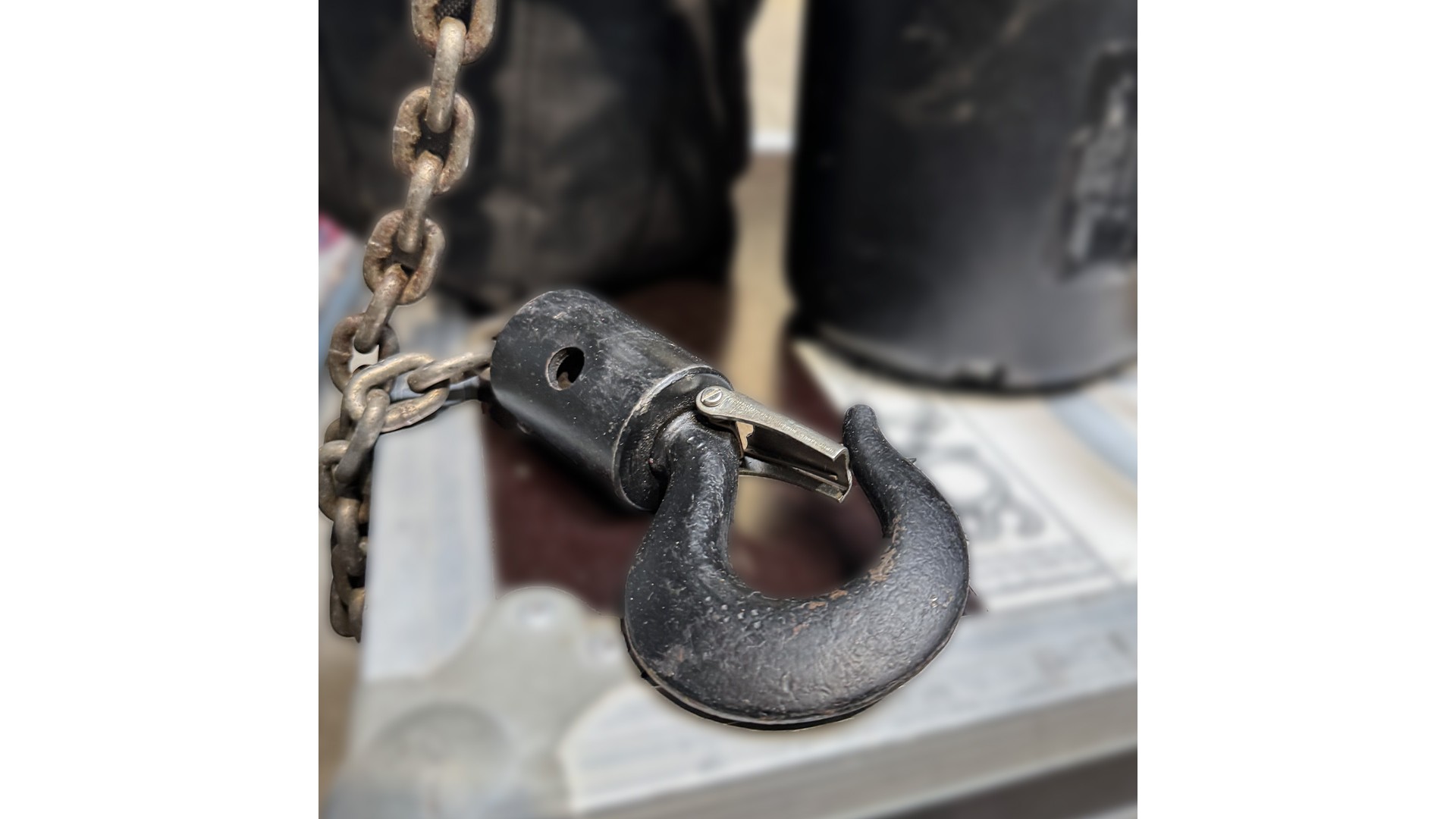

| Chain hook | Swivel hook |

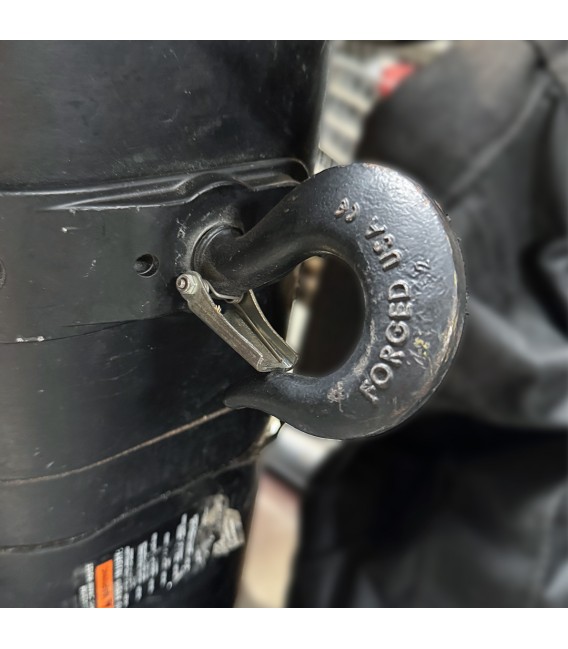

| Body hook | Crochet pivotant 360° |
| Chain specifications | |
| Chain dimensions | 6.3 x 18.9 |
| Approx. chain weight | 1.2 kg |

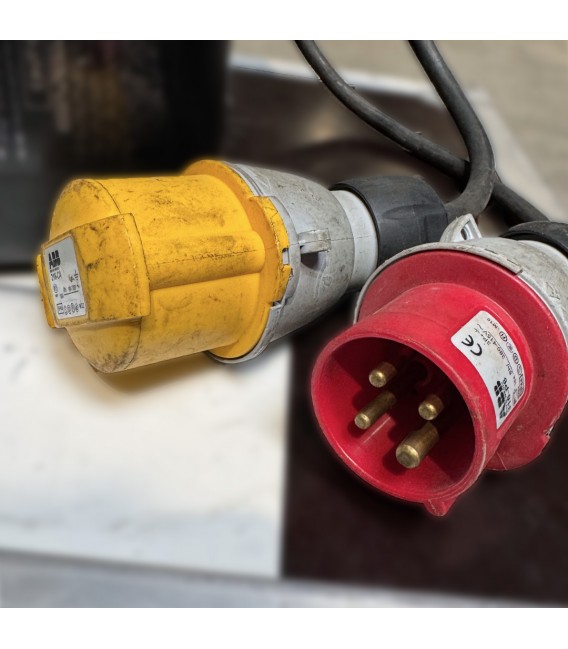

| Electrical features of the hoist | |
| Power consumption (full load) | 1.2A |
| Operating voltage | 400-3-50 |
I I I I I

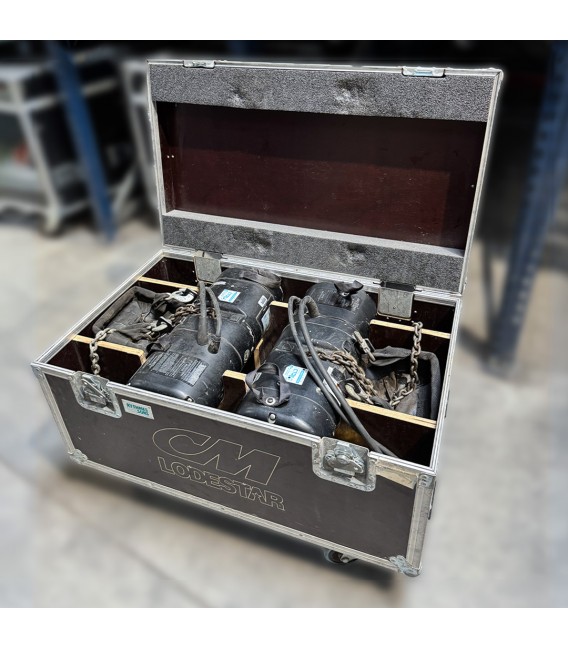

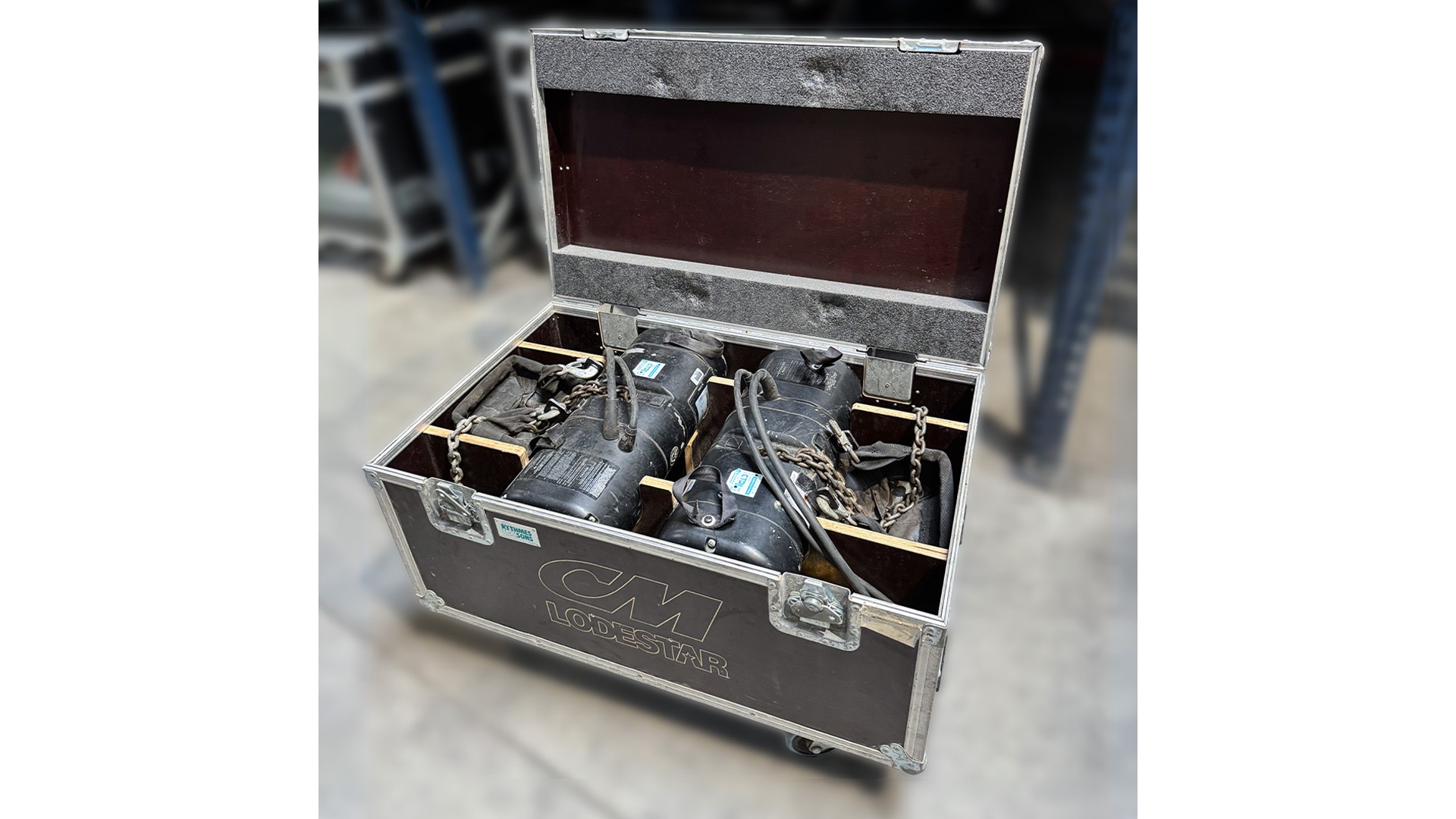

Accessories
