SGM

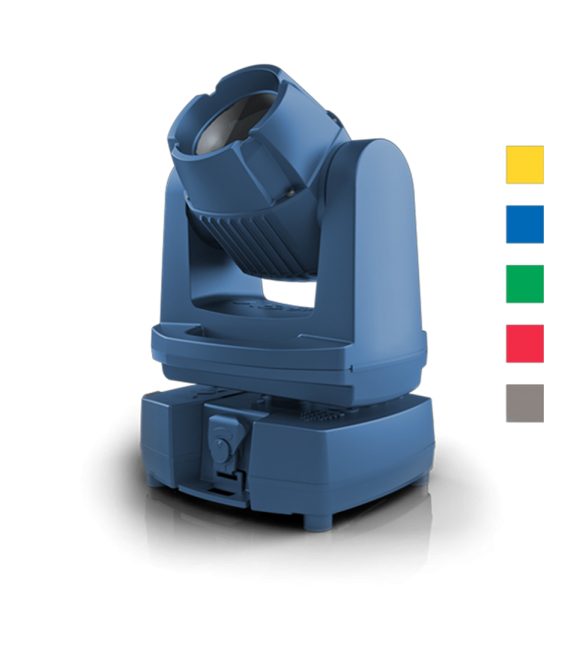

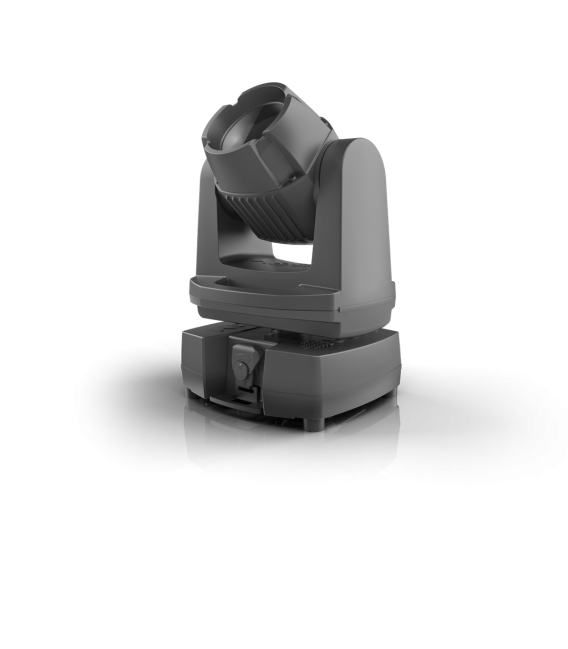

This compact LED moving head is the ideal companion for the G-1 Beam, and is designed for any type of outdoor event and smaller venues in need of small moving wash lights with high output, uniform colors from a distance and color calibration to match other SGM fixtures.
New
The G-1 Wash is a small and reliable LED luminaire with a powerful 40W color LED engine. Unlike other fixtures in its range, the G-1 Wash can operate during the rain, delivering a high output over long distances with almost no safety distance to surrounding objects (0.3 m minimum distance). It comes in a configuration with 19 high-power LEDs; four red, four green, four blue and seven white LEDs. The LEDs expected lifetime is 50,000 hours.
The G-1 Wash delivers no less than 5078 luxes at 3 meters after optics, with a beam angle of 8.5º, and an efficacy of 31 lumen per watt. It gives the necessary brightness to create tight mid-air wash RGBW effects, while keeping a good f-stop for cameras and a 0.3m minimum safety distance to objects.
Being a 100% wireless moving head, the G-1 Wash offers a vast variety of options for your setup. However, the G-1 Wash can also be wired (with or without batteries). When used as a battery-driven fixture, the G-1 Wash offers an impressive 12 - 14 hours operation in typical use.
The G-1 Wash includes a fast endless pan movement feature, which truly expands the possibilities when programming the fixture. Furthermore, with the G-1 Wash, SGM has introduced a patent pending position pre-set programming. Thanks to this feature, it is possible to program up to nine internal pan / tilt presets that can be combined with up to eight internal standalone programs.
The G-1 Wash comes in two varieties: with or without the base unit. With the base, usability is diverse since batteries can be inserted, and thus positioning is independent from any power source proximity. Without the base, the G-1 Wash can be mounted onto the ceiling, in a rig or in a wall mount. In this case, the base can be placed remotely as power supply, or the head can be powered through an external power supply.
All SGM lights are protected by an IP rating of 65 or 66. The durable IP65-rating ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well. The IP-66 rating include the same protection, adding a protection against multi-directional, high-pressure water jets while the IP-65 is protected against low pressure.
Every SGM light is equipped with an internal built-in dehumidifier protecting the fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks.
SGM’s patented DEHUMIDIFIER, incorporated in the SGM product range, constantly removes trapped hydrogen from inside of the lighting fixture in a solid state electrolytic process with no moving parts. SGM’s DEHUMIDIFIER breaks down corrosive H2SO4 molecules, deriving from polluted air, and eliminates the effects hereof. Hereby, the unique process eliminates any risk of humidity, which would otherwise lead to condensation and corrosion.
To achieve optimum performance of the LEDs at all times, SGM lights are optimized to manage heat impact through SGM's unique thermal management technology.
High power light-emitting diodes (LEDs) use up to 5,000 milliwatts or more in a single LED. However, most of the electricity in an LED turns into heat rather than light. In fact, about 70% becomes heat generation while only 30% becomes light. Therefore, in order to get more light from your LEDs, it is crucial to have efficient thermal management. The SGM technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. All SGM LED products consist of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters.
Originally founded in 1975, SGM brings more than 40 years of experience within the stage lighting business.
In 2009, SGM decided to bring in industry pioneer Peter Johansen to head the new Research & Development center in Denmark, with the intention to transfer technology, previously only seen possible within stage lighting, into architectural lighting.
With field expertise dating back to the invention of the smoke machine in the 70s, Peter Johansen, founder of Martin Professional, successfully established the company headquarters in Denmark in 2012, and followed by the introduction of an architectural division offering superior dynamic LED lighting, which comprises colors, strobe effects, pixel lights, positions, patterns, and gobos, in practically maintenance-fee fixtures.
Optical | |
Source lumineuse | 19 High power R, G, B, W LEDs |
Beam angle(s) | 8.5° |
Photometric | |
Total output | 5000 lux at 3 m |
White temperature | 5700K |
Fixture features | |
Pan | Endless |
Tilt | 240° |
Pan Modes | 540° - 360° - 360° shortest path - continuous CW - continuous CCW |
Dimming | Electronic |
Strobe | Ultra-high-speed strobe effect (1-50Hz) |
Built-in macro effects | 50 |
Dehumidifier | Base / Head |
Control & Program | |
Protocol | USITT DMX512A - CRMX - W-DMX™ G2/G3/G4/G4S |
Setting and addressing | Control panel or RDM |
DMX channels | 13 |
16-bit control | Dimmer, pan and tilt |
Cabled DMX | 5-pin XLR input and output |
Wireless DMX | LumenRadio CRMX |
Standalone mode | 8 internal standalone programs & 9 pan/tilt presets |
Connectivity | |
Data (DMX) | IP65 Neutrik HD locking XLR 5-pin cable, 0.2m |
Power | |
Power supply unit | Auto-ranging electronic switch-mode |
Consumption | 60W |
Standby power | 8W |
AC Power, nominal | 100-240VAC 50/60Hz |
AC Power, max. rating | 90-264VAC 50/60Hz |
Maximum inrush current @ 240VAC | 6.9A |
DC Power | Neutrik powerCON TRUE1 |
Battery | |
Battery type | Lithium-Ion battery |
Battery capacity (non-stop) | 6-8 hours |
Battery capacity (typical use) | 12-14 hours |
Battery charge time up to 100% | 12-16 hours |
Battery charge time up to 70% | 8-12 hours |
Durability | 500+ full charge cycles |
Memory effect | 85% battery capacity after 500 full charge cycles |
Battery status | Batterie level indicator |
Physical characteristics | |
Height | 465 mm |
Width | 219 mm |
Depth | 255 mm |
Weight | 8.6 kg (incl. batteries) |
IP class | IP65 |
Material | Aluminium, Steel, Plastic, PC/ASA, rubber |
Environment | |
Temperature range, Operating | −40° to +50°C |
Temperature range, Start-up | −20° to +50°C |
Temperature range, Storage | −40° to +80°C |
Cooling | Passive |
Max. humidity | 98% |
Approvals | |
2014/30/EU: EMC Directive | EN 55103-1, EN 55103-2, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3 |
2014/35/EU: Low Voltage Directive | EN 60598-1, EN 60598-2-17, EN 62471, EN 60529 |
RoHS2 Directive | 2011/65/EU |
Additional information | |
Included items | 1 Omega bracket with 1/4-turn fasteners - 2 metres Power Cable with Neutrik TRUE1 powerCON - User manual |
Mounting points | Two quarter-turn locking points |
Orientation | Any |
Safety features | Two quarter-turn locking points |
Minimum distance to combustible materials | 0.3 metre |
Minimum distance to illuminated surfaces | 0.3 metre |
