P-6

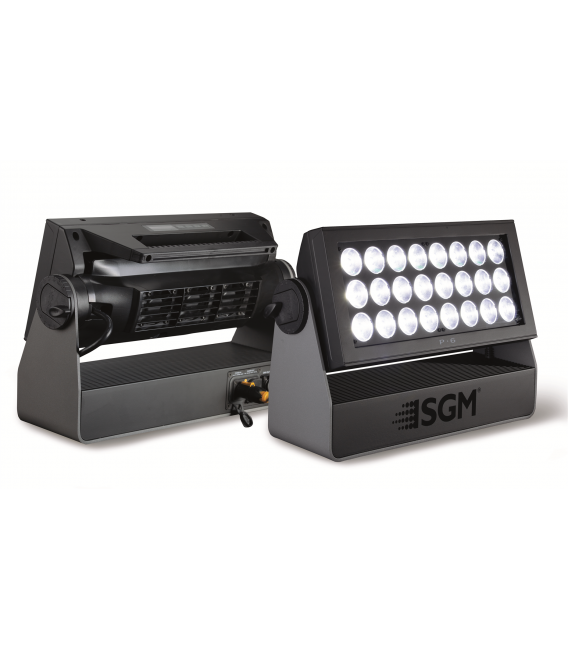

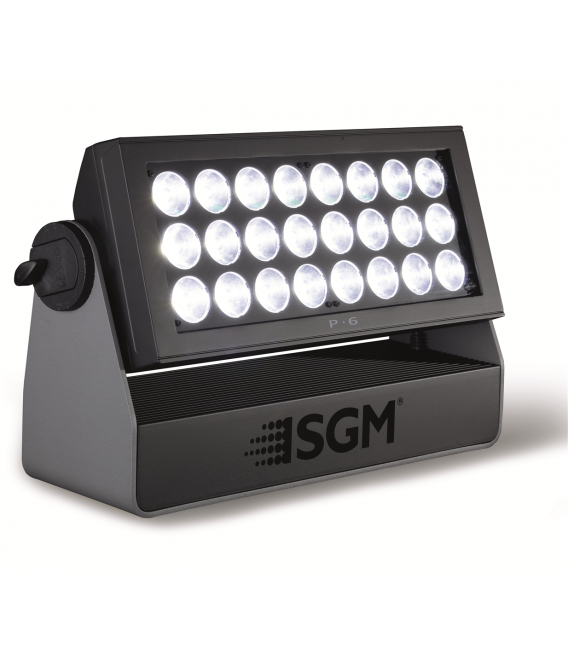

Static light Wash / Strobe / Flood / Pixel / Blinder with 24 high-power 24W RGBW LEDs - IP66

More details

New

  • Black
  • White
  • Custom Custom

Availability: On Order

3 955,00 €

You will not be charged VAT with your selected delivery address.

- +

  • I I I I I

    Description

    P6

    • 24 high-power RGBW 24W LEDs
    • Light output of 20,500 lumens
    • 10° native beam angle
    • Multifunction : Wash, strobe, flood, pixel and blinder
    • IP66
    • 6 individually controllable segments
    • Tilt lock with angle indicator and integrated handle
    • Magnetic holographic filter frames in options
    • CTC linear control from 2,000K to 10,000K
    • Wireless DMX and RDM
    • Ultra-high-speed strobe effects
    • Easy-fit barndoors in options
    • The SGM patented dehumidifier integrated
    Introduction of P-6

    LED Technology

    The P-6 features 24 high-power RGBW 24W LEDs with a superior optical performance. All the components have been designed to achieve the maximum output performance in a lightweight and compact size. The LEDs expected lifetime is 50,000 hours.

    Optics

    The 24 individual lenses of the P-6 deliver a native 10º beam angle with even distribution for long throws. Its standard round and symmetrical beam can be manipulated with an optional set of magnetic holographic filters (19º, 45º, 63º/12º elliptical horizontal and 12º/63º elliptical vertical), an empty frame for custom filters, and barndoors.

    Photometrics

    One of the most important key points of the P-6 is the possibility of achieving high lux values in a low-profile luminaire. The P-6 delivers lumen and 12000 lux at 5 meters with the 10º native lens; outperforming any other Full-Color LED washes in its size. The optical magnetic filter frames take advantage of this high light output, spreading this powerful illuminance over close and medium distances.

    Colors

    The amazing color selection is the unique identity of the P series worldwide. The P-6 continues this successful development by delivering superior color palette, including outstanding blues, rich salmons, powerful reds, and detailed cyans. This is possible because of the superior SGM's color development, based on accurate calibration and advanced firmware.

    Pixel Mapping

    The LEDs in the P-6 are divided into six individually controllable segments, which generates wide-ranging color effects and pixel-mapping combinations for creative lighting designs. Each segment provides fast feedback, individual RGB control, and smooth dimming.

    Powerful features

    The P-6 also delivers many great features such as Plus / Minus Green control for fine tuning, a vast color filter emulation, Quick Color settings, different pixel and strobe pre-programmed macros and effects, and a super-fast strobe with duration and rate parameters.

    Mounting options

    Because of its integrated handle and included omega brackets, the SGM P-6 is easy to transport, to rig, and to focus. It can be orientated in any position and it comes with 2 x 2 ¼ turn locking points to allow the use of one or two clamps. The built-in safety wire eyelet in the base protects the unit when rigged.


    About SGM

    THE SGM TECHNOLOGY

    IP Rating

    All SGM lights are protected by an IP rating of 65 or 66. The durable IP65-rating ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well. The IP-66 rating include the same protection, adding a protection against multi-directional, high-pressure water jets while the IP-65 is protected against low pressure.

    Dehumidification

    Every SGM light is equipped with an internal built-in dehumidifier protecting the fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks.

    SGM’s patented DEHUMIDIFIER, incorporated in the SGM product range, constantly removes trapped hydrogen from inside of the lighting fixture in a solid state electrolytic process with no moving parts. SGM’s DEHUMIDIFIER breaks down corrosive H2SO4 molecules, deriving from polluted air, and eliminates the effects hereof. Hereby, the unique process eliminates any risk of humidity, which would otherwise lead to condensation and corrosion.

    Thermal management

    To achieve optimum performance of the LEDs at all times, SGM lights are optimized to manage heat impact through SGM's unique thermal management technology.

    High power light-emitting diodes (LEDs) use up to 5,000 milliwatts or more in a single LED. However, most of the electricity in an LED turns into heat rather than light. In fact, about 70% becomes heat generation while only 30% becomes light. Therefore, in order to get more light from your LEDs, it is crucial to have efficient thermal management. The SGM technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. All SGM LED products consist of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters.

    ABOUT SGM LIGHT

    SGM company

    Originally founded in 1975, SGM brings more than 40 years of experience within the stage lighting business.

    In 2009, SGM decided to bring in industry pioneer Peter Johansen to head the new Research & Development center in Denmark, with the intention to transfer technology, previously only seen possible within stage lighting, into architectural lighting.

    With field expertise dating back to the invention of the smoke machine in the 70s, Peter Johansen, founder of Martin Professional, successfully established the company headquarters in Denmark in 2012, and followed by the introduction of an architectural division offering superior dynamic LED lighting, which comprises colors, strobe effects, pixel lights, positions, patterns, and gobos, in practically maintenance-fee fixtures.


    Specifications
    Optical
    Source lumineuse24 x 24W RGBW LEDs
    Beam angle(s)11° (with 10° lens), 18° (with Med filter frame), 47° (with Wide filter frame)
    Photometric
    Total output12000 lux à 5m
    Efficacity36 lm/W
    Colour temperature range2000K - 10000K
    Physical characteristics
    Height320 mm
    Width508 mm
    Depth166 mm
    Weight14.50 kg
    IP classIP66
    MaterialAluminium, PC/ASA, Caoutchouc et Acier
    Environment
    Temperature range, Operating−40° to +50°C
    Temperature range, Start-up−20° to +50°C
    Temperature range, Storage−40° to +80°C
    Max. humidity98%
    Approvals
    2014/30/EU: EMC DirectiveEN 55103-2 EN 55015 EN 61547 EN 61000-3-2 EN 61000-3-3 EN 55032
    2014/35/EU: Low Voltage DirectiveEN 60598-1, EN 60598-2-17, EN 62471, EN 60529
    RoHS2 Directive2011/65/EU
    Additional information
    Included itemsTwo Omega brackets with 1/4-turn fasteners - 2 metres Power Cable with Neutrik TRUE1 powerCON - User manual
    Fixture features
    Tilt220°
    DimmingElectronic
    StrobeUltra-high-speed strobe effect (1-50Hz)
    Mounting pointsFour times two quarter-turn locking points
    OrientationAny
    Safety featuresPossibilité de passer une élingue de sécurité dans le crochet
    Minimum distance to combustible materials0.3 metre
    Control & Program
    DMX channels4, 6, 8, 9, 10, 18, 21, 24, 26, 27, 40
    16-bit controlDimmer & colors

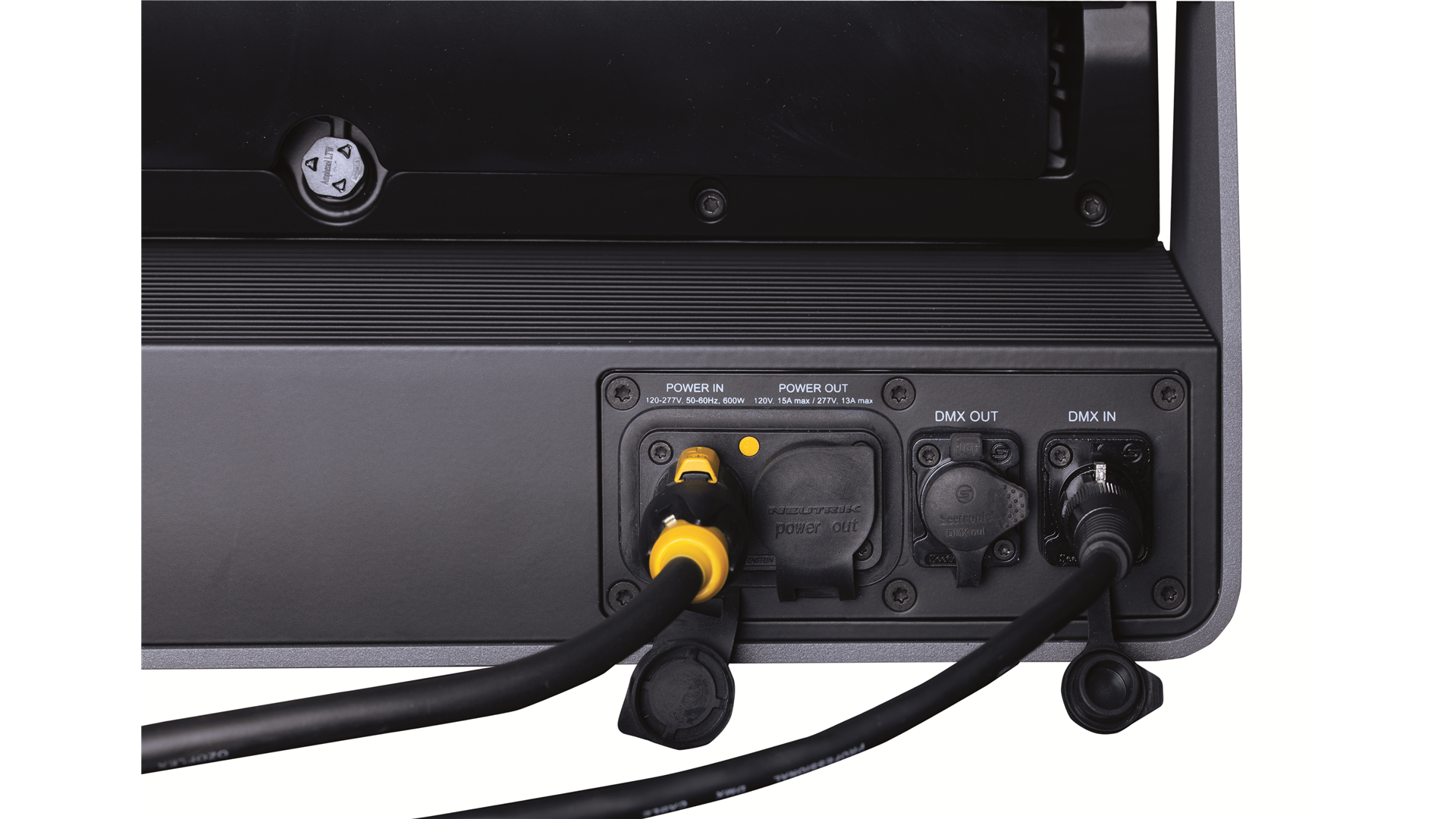

    Cabled DMX5-pin XLR input and output
    Wireless DMXLumenRadio with RDM
    Standalone modeCouleur rapide RGB - Jusqu'à 24 scènes programmables
    Power
    Standby power10W
    AC Power, nominal115 - 277V 50/60Hz
    AC Power, max. rating100 - 305V 50/60Hz
