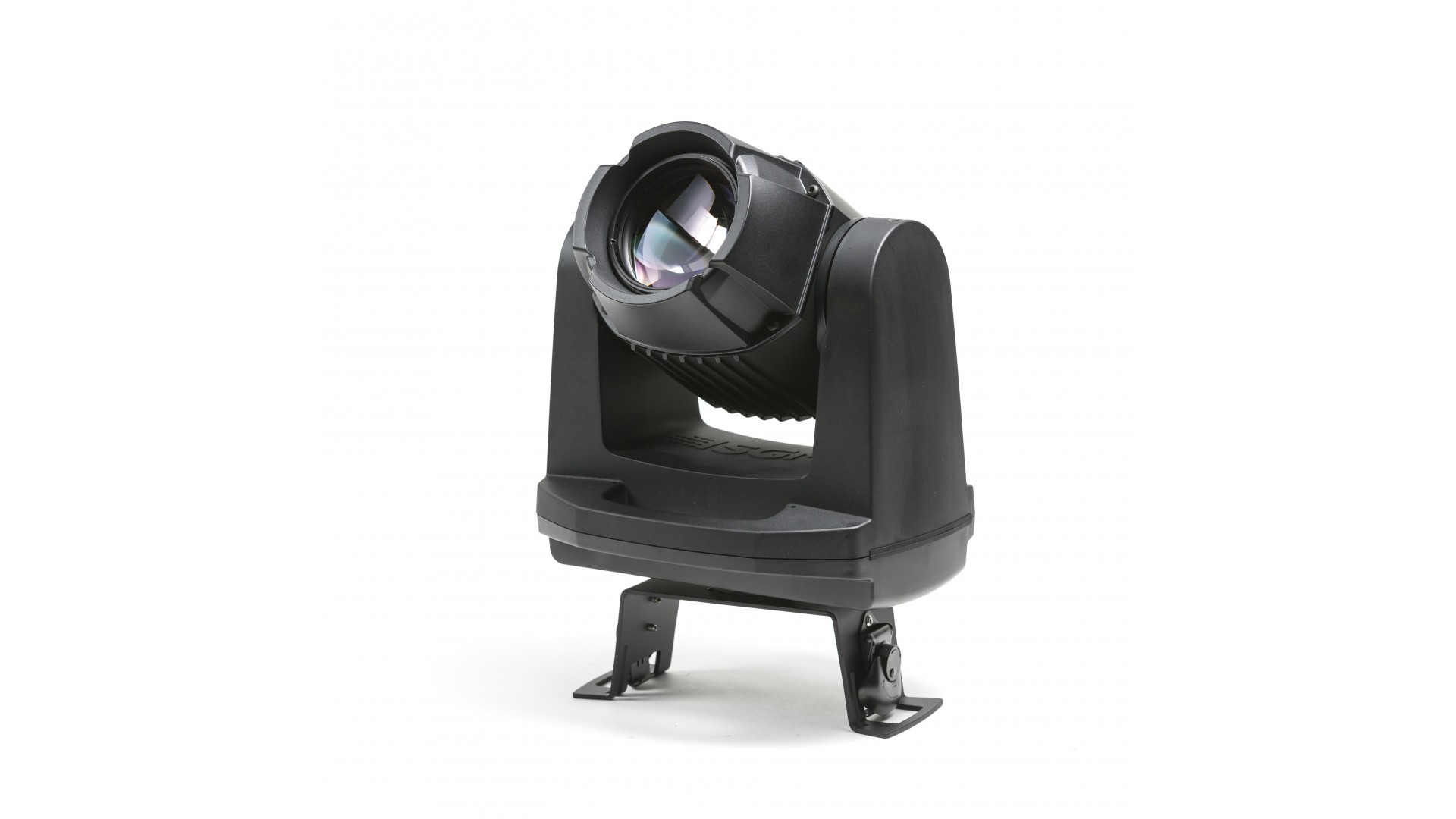

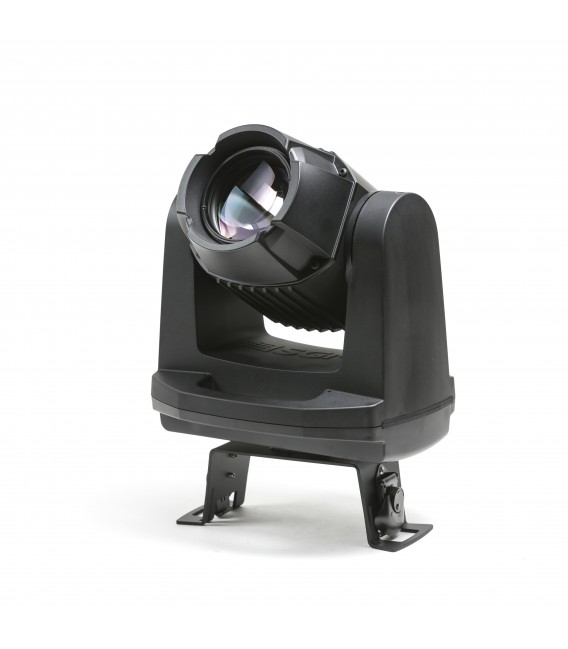

G-1 Beam

Beam Moving Head light - battery-driven - 40W White LED - IP65 - Compact and lightweight

More details

New

  • Black
  • White
  • Custom Custom

Availability: On Order

2 885,00 €

You will not be charged VAT with your selected delivery address.

- +

  • I I I I I

    Description

    G-1 Beam

    • 40W White LED Lightsource
    • 2.8º beam angle
    • color wheel, 19 gobos and gobo shake
    • 6,500K white
    • Ultra-high-speed strobe effect
    • Battery-driven
    • Flicker-free
    • DMX, RDM and wireless control
    • IP65
    • Integrated patented dehumidifier / unique technologie
    • Silent performance
    • Maintenance-free
    Introduction of SGM G-1 Beam

    LED Technology

    The G-1 Beam is a small and reliable LED luminaire with a powerful 40w white LED engine. Unlike other fixtures in its range, the G-1 Beam can operate during the rain, delivering a sharp and crisp beam with almost no safety distance to surrounding objects (0.3 m minimum distance). The LEDs expected lifetime is 50,000 hours.

    Photometrics

    The G-1 Beam delivers no less than 53244 luxes at 3m, which is a staggering light output for a LED fixture of this size. It gives the necessary brightness to create tight mid-air beams and sharp effects, while keeping a good f-stop for cameras and a 0.3 m minimum safety distance to objects.

    Projection

    One of the big benefits of the G-1 Beam is its defined beam of light. The gobo projection is focused in a very detailed way, so the pattern is clearly visible at any moment. Even when 2.8º is the native aperture in the G-1 Beam, it is also possible to obtain a narrower beam angle by using the physical pseudo-zoom adjustable down to 0.3º. A shake effect is also available for all gobo designs.

    Color wheel G-1 BeamColor Wheel
    G-1 Beam gobo wheelGobo Wheel

    Battery and wired operation

    Being a 100% wireless moving head, the G-1 Beam offers a vast variety of options for your setup. However, the G-1 Beam can also be wired (with or without batteries). When used as a battery-driven fixture, the G-1 Beam offers an impressive 12 - 14 hours operation in typical use.

    Special movement features

    The G-1 Beam includes a fast endless pan movement feature, which truly expands the possibilities when programming the fixture. Furthermore, with the G-1 Beam, SGM has introduced a patent pending position pre-set programming. Thanks to this feature, it is possible to program up to nine internal pan / tilt presets that can be combined with up to eight internal standalone programs.

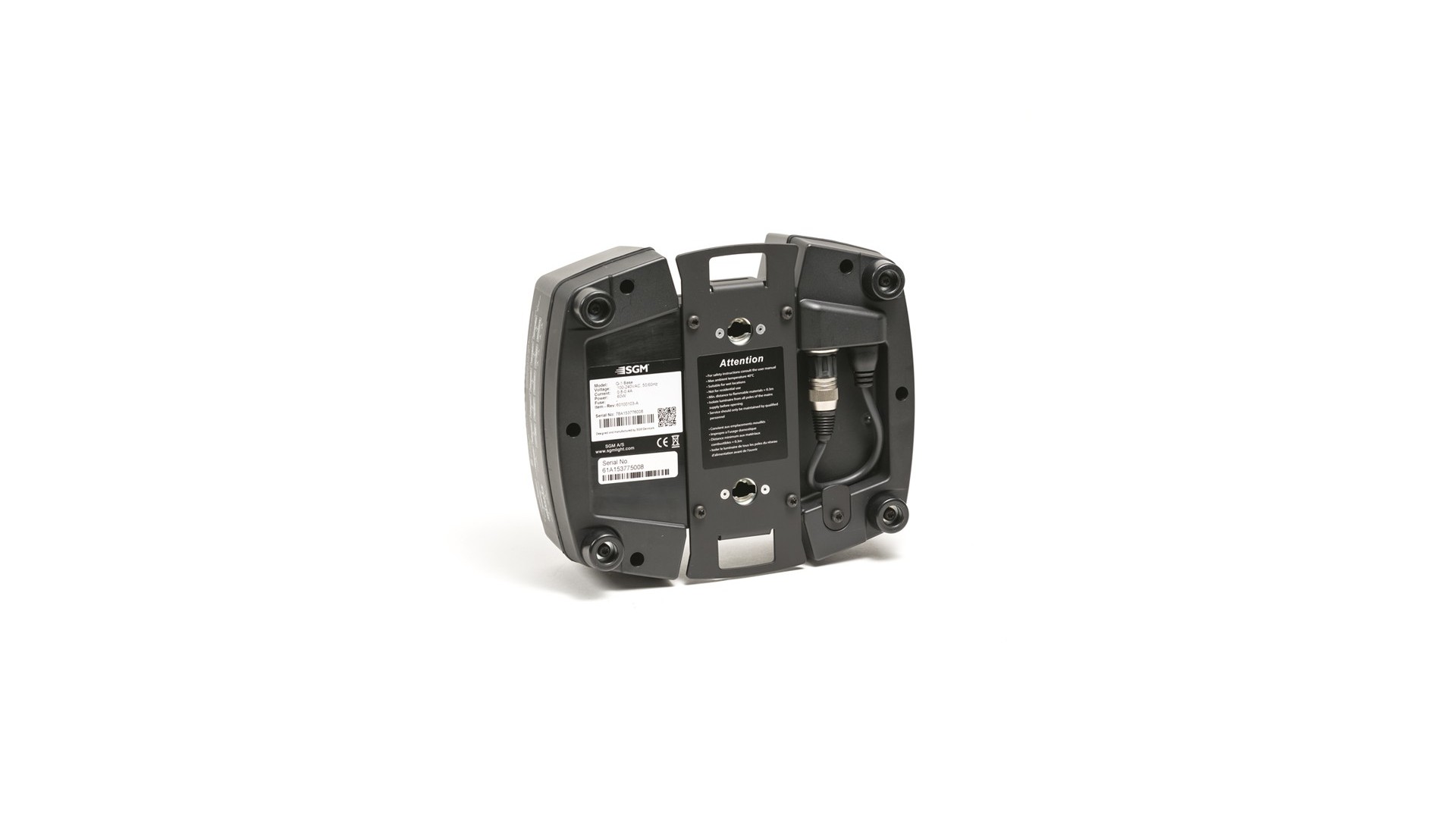

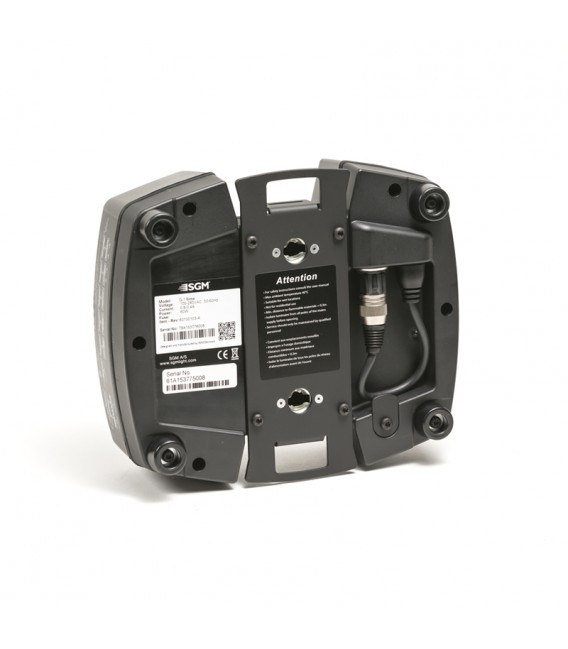

    Mounting options

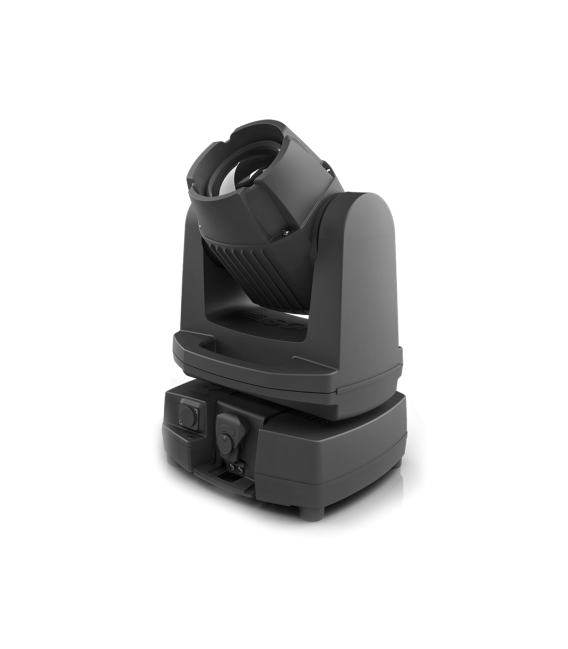

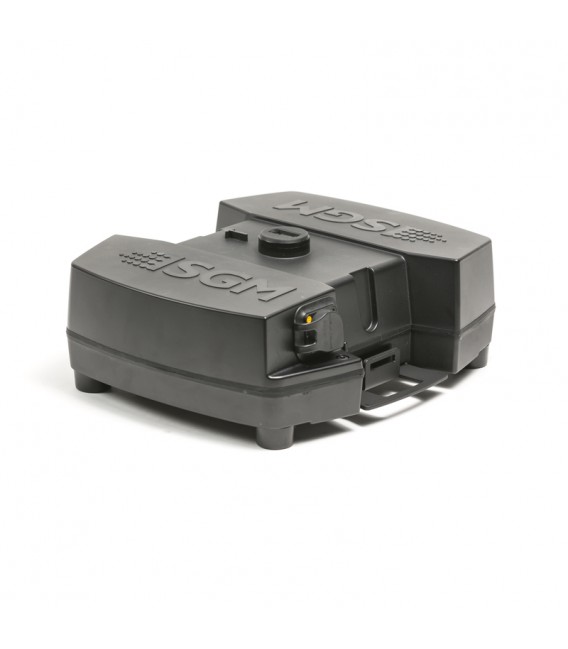

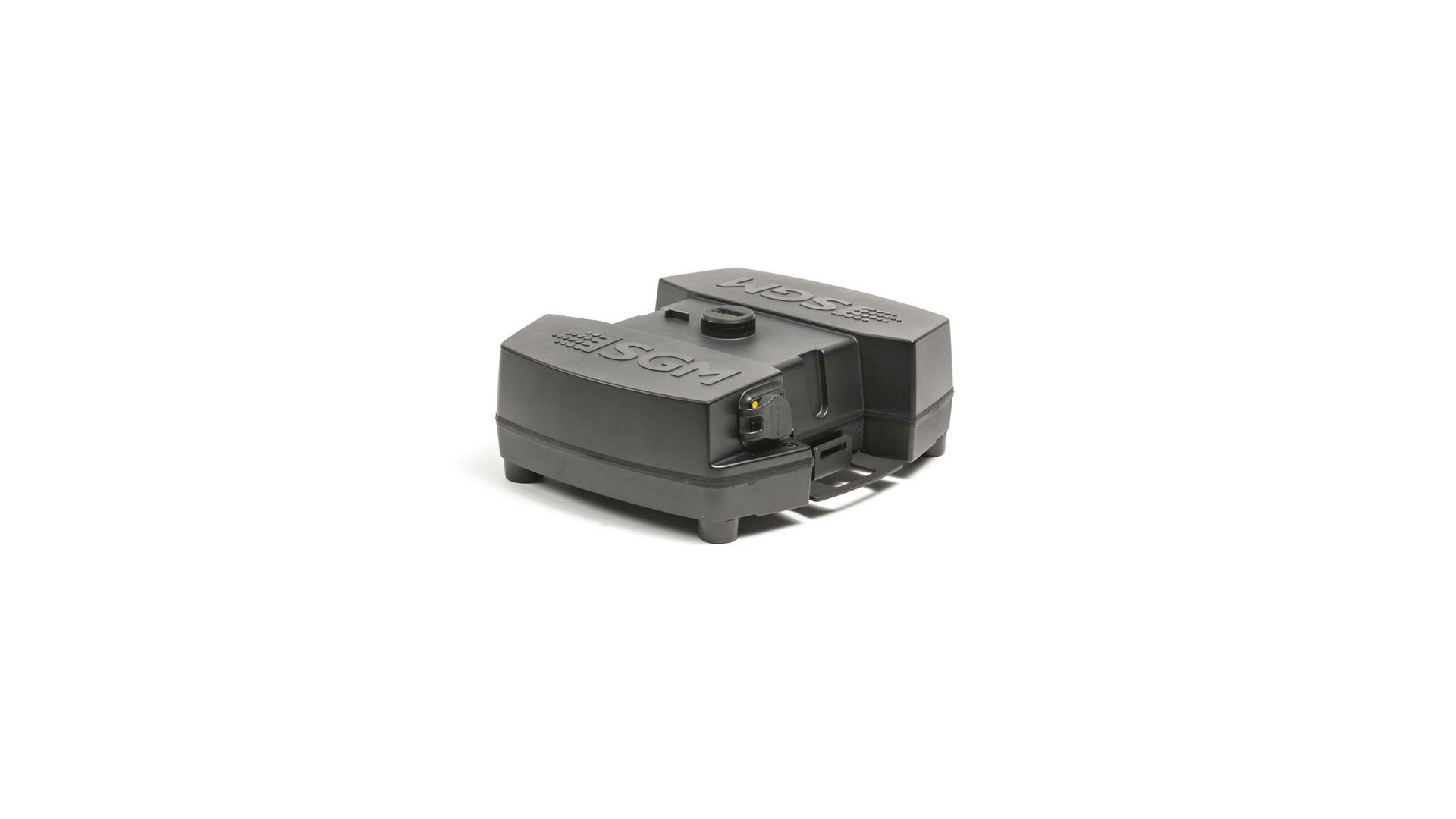

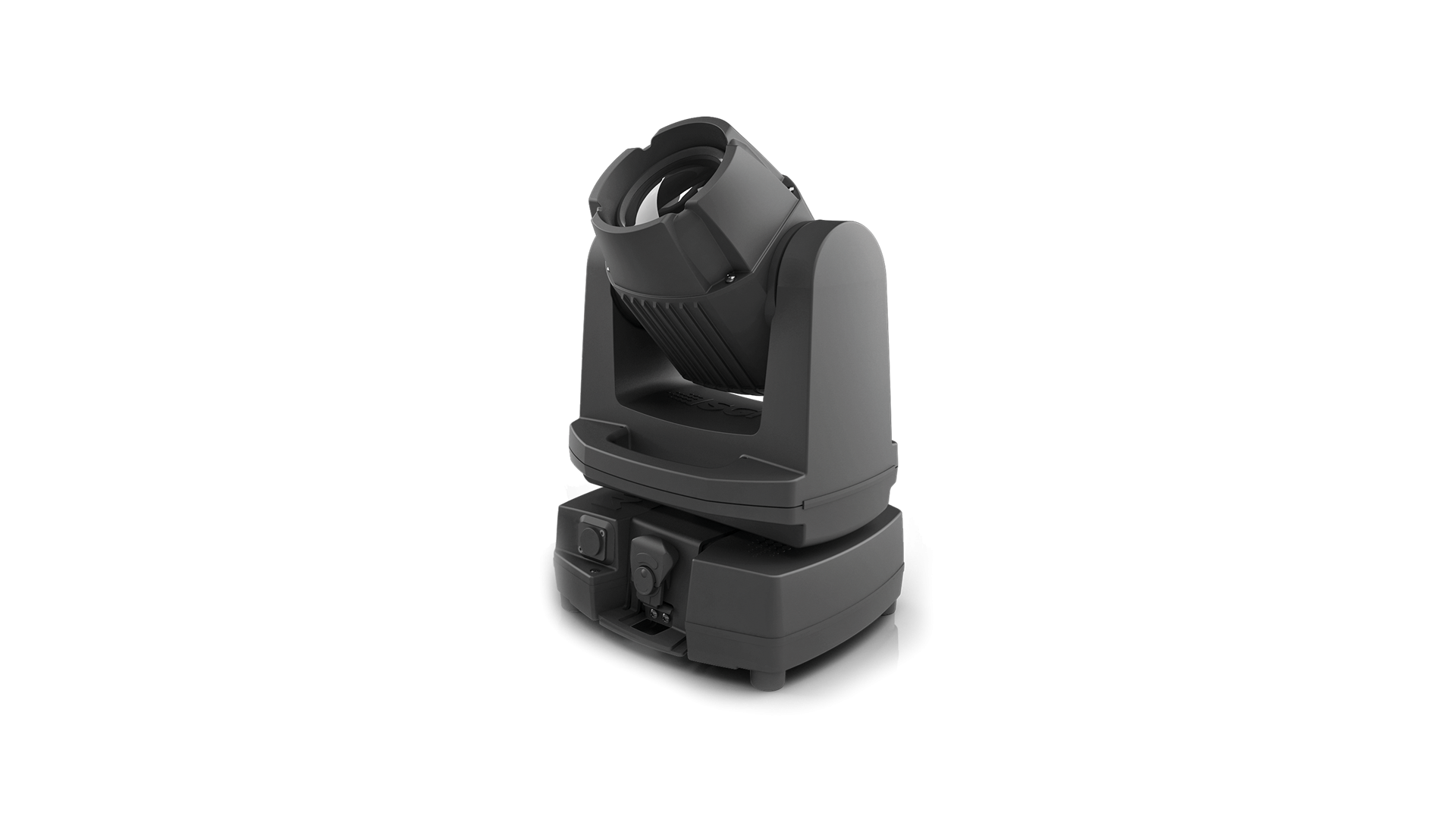

    The G-1 Beam comes in two varieties: with or without the base unit. With the base, usability is diverse since batteries can be inserted, and thus positioning is independent from any power source proximity. Without the base, the G-1 Beam can be mounted onto the ceiling, in a rig or in a wall mount. In this case, the base can be placed remotely as power supply, or the head can be powered through an external power supply.


    Vidéos

    Présentation du G-1 Beam de SGM

    G-1 Beam - Test en conditions réelles...


    About SGM

    THE SGM TECHNOLOGY

    IP Rating

    All SGM lights are protected by an IP rating of 65 or 66. The durable IP65-rating ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well. The IP-66 rating include the same protection, adding a protection against multi-directional, high-pressure water jets while the IP-65 is protected against low pressure.

    Dehumidification

    Every SGM light is equipped with an internal built-in dehumidifier protecting the fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks.

    SGM’s patented DEHUMIDIFIER, incorporated in the SGM product range, constantly removes trapped hydrogen from inside of the lighting fixture in a solid state electrolytic process with no moving parts. SGM’s DEHUMIDIFIER breaks down corrosive H2SO4 molecules, deriving from polluted air, and eliminates the effects hereof. Hereby, the unique process eliminates any risk of humidity, which would otherwise lead to condensation and corrosion.

    Thermal management

    To achieve optimum performance of the LEDs at all times, SGM lights are optimized to manage heat impact through SGM's unique thermal management technology.

    High power light-emitting diodes (LEDs) use up to 5,000 milliwatts or more in a single LED. However, most of the electricity in an LED turns into heat rather than light. In fact, about 70% becomes heat generation while only 30% becomes light. Therefore, in order to get more light from your LEDs, it is crucial to have efficient thermal management. The SGM technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. All SGM LED products consist of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters.

    ABOUT SGM LIGHT

    SGM company

    Originally founded in 1975, SGM brings more than 40 years of experience within the stage lighting business.

    In 2009, SGM decided to bring in industry pioneer Peter Johansen to head the new Research & Development center in Denmark, with the intention to transfer technology, previously only seen possible within stage lighting, into architectural lighting.

    With field expertise dating back to the invention of the smoke machine in the 70s, Peter Johansen, founder of Martin Professional, successfully established the company headquarters in Denmark in 2012, and followed by the introduction of an architectural division offering superior dynamic LED lighting, which comprises colors, strobe effects, pixel lights, positions, patterns, and gobos, in practically maintenance-fee fixtures.


    Related articles
    Novelty Group takes SGM to Solidays Festival

    Novelty Group takes SGM to Solidays Festival

    2016-08-11

    For the 2016 edition of the Solidays festival, Novelty groups chose SGM fixtures to light up the new Arena Club stage.

    Meet us at Prolight+Sound 2016

    Meet us at Prolight+Sound 2016

    2016-03-22

    The annual meeting of Frankfurt Prolight+Sound is coming.... Sonoss and its partners will be present as usual, and...


    Specifications
    Optical
    Source lumineuseHigh-power white LED
    Beam angle(s)2.8° - 0.3° (Aperture pseudo zoom)
    FocusMotorized focus
    Photometric
    Total output62000 lux at 3m
    White temperature6500K
    Fixture features
    PanEndless
    Tilt240°
    Pan Modes540° - 360° - 360° shortest path - continuous CW - continuous CCW
    DimmingElectronic
    StrobeUltra-high-speed strobe effect (1-50Hz)
    Gobo wheels14 gobos - 2 oscillation gobo effect areas - 5 apertures - Continuous scroll CW & CCW
    Colour wheel14 colours with split colour effect and continuous scroll CW & CCW
    Built-in macro effects50
    Control & Program
    ProtocolUSITT DMX512A - CRMX - W-DMX™ G2/G3/G4/G4S
    Setting and addressingControl panel or RDM
    DMX channels12
    16-bit controlDimmer, pan and tilt
    Cabled DMX5-pin XLR input and output
    Wireless DMXLumenRadio CRMX
    Standalone mode8 internal standalone programs & 9 pan/tilt presets
    Gobos
    Gobo shakeYes
    Connectivity
    Data (DMX)IP65 Neutrik HD locking XLR 5-pin cable, 0.2m
    Power
    Power supply unitAuto-ranging electronic switch-mode
    Consumption50W
    Standby power8W
    AC Power, nominal100-240VAC 50/60Hz
    AC Power, max. rating90-264VAC 50/60Hz
    Maximum inrush current @ 240VAC6.9A
    DC PowerNeutrik powerCON TRUE1
    Battery
    Battery typeLithium-Ion battery
    Battery capacity (non-stop)7-9 hours
    Battery capacity (typical use)12-14 hours
    Battery charge time up to 100%12-16 hours
    Battery charge time up to 70%8-12 hours
    Durability500+ full charge cycles
    Memory effect85% battery capacity after 500 full charge cycles
    Battery statusBatterie level indicator
    Physical characteristics
    Height382 mm
    Width219 mm
    Depth255 mm
    Weight9 kg
    IP classIP65
    MaterialAluminium, Steel, Plastic, PC/ASA, rubber
    Environment
    Temperature range, Operating−40° to +50°C
    Temperature range, Start-up−20° to +50°C
    Temperature range, Storage−40° to +80°C
    CoolingPassive
    Max. humidity98%
    Approvals
    2014/30/EU: EMC DirectiveEN 55103-1, EN 55103-2, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
    2014/35/EU: Low Voltage DirectiveEN 60598-1, EN 60598-2-17, EN 62471, EN 60529
    RoHS2 Directive2011/65/EU
    ULStandard 1573
    Additional information
    Included items1 Omega bracket with 1/4-turn fasteners - 2 metres Power Cable with Neutrik TRUE1 powerCON - User manual
    Mounting pointsTwo quarter-turn locking points
    OrientationAny
    Safety featuresFour times two quarter-turn locking points
    Minimum distance to combustible materials0.3 metre
    Minimum distance to illuminated surfaces0.3 metre
