LT-100

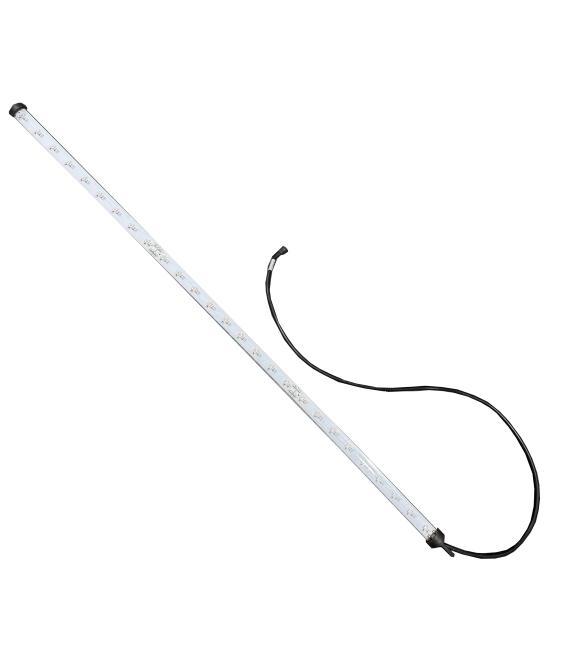

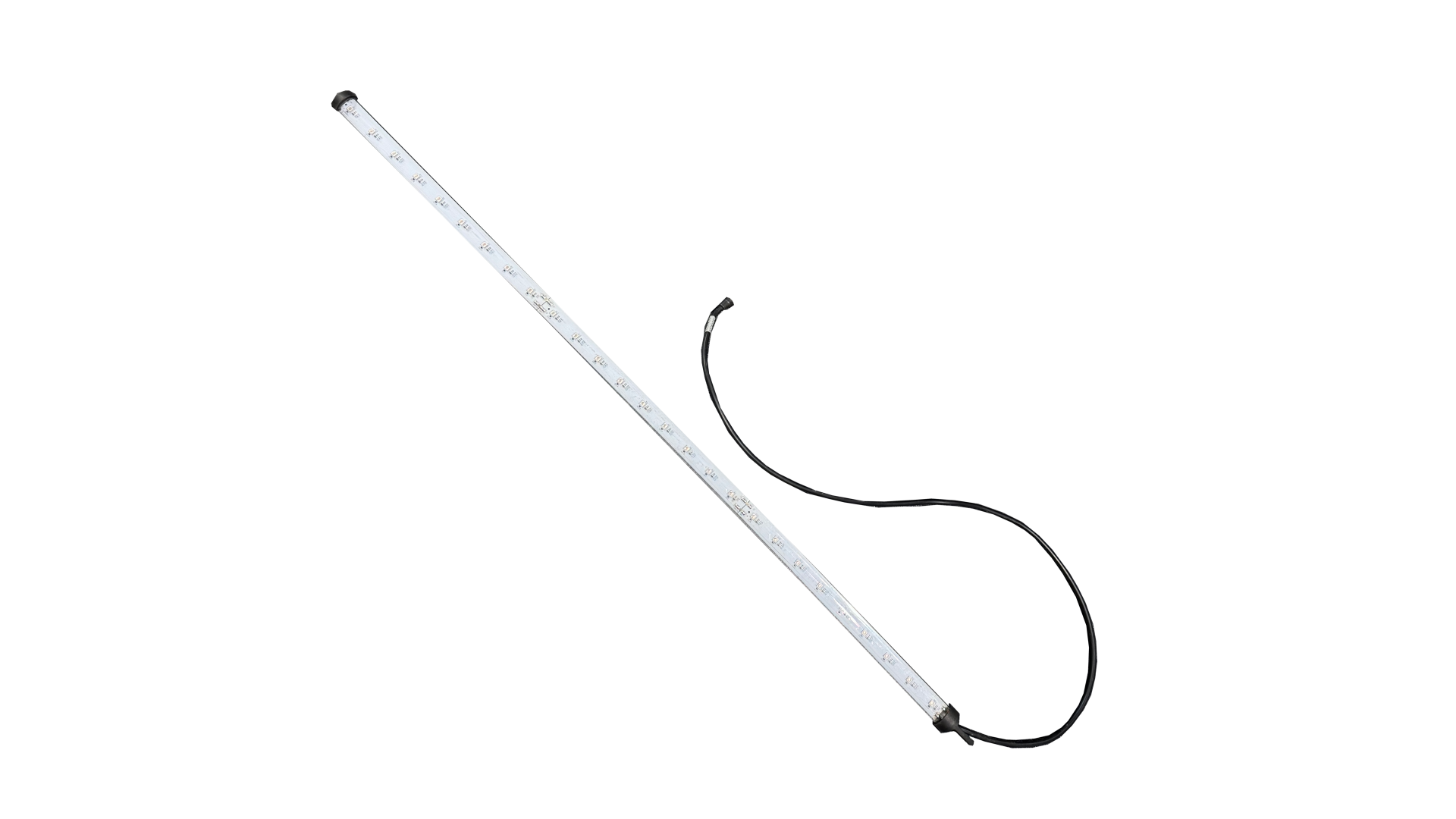

LED Tubes for 3D Graphics - RGB LEDs - 1 meter - IP65 - DMX-controllable.

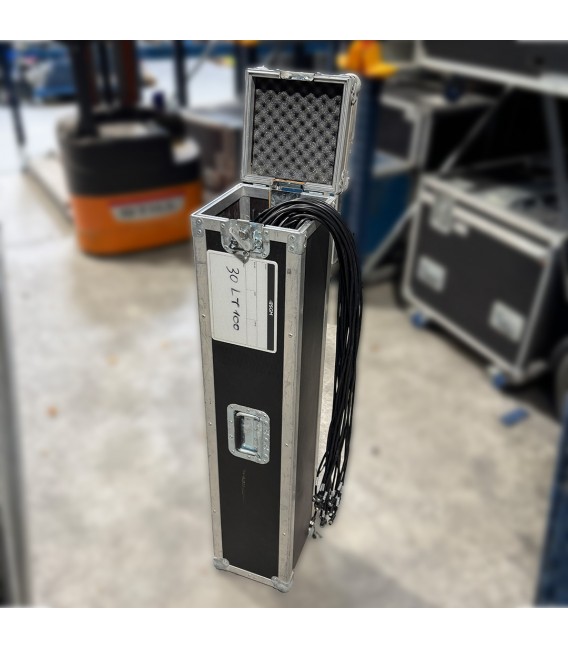

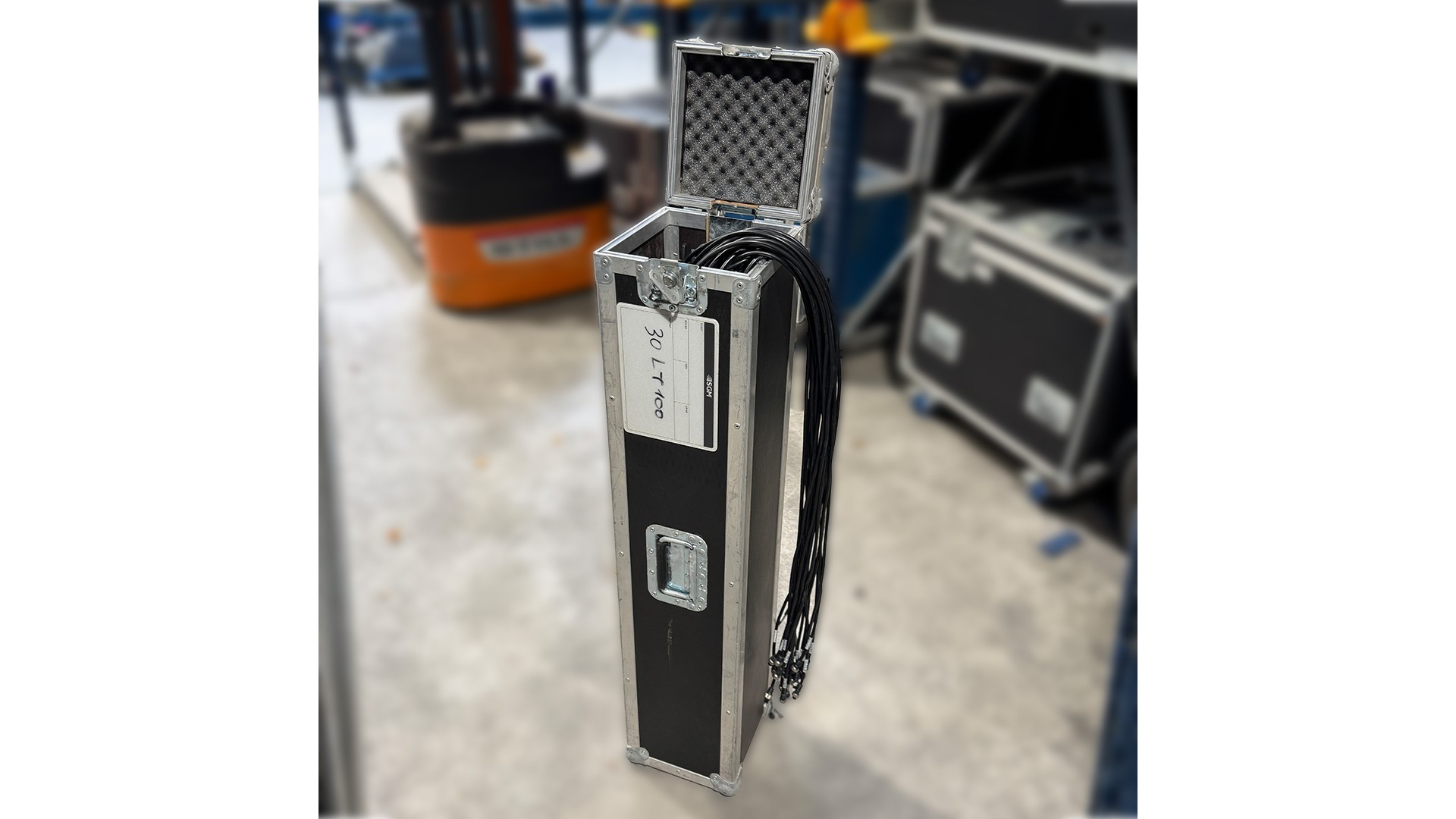

Sold in flight cases of 30 units.

Condition: New

I I I I I

Specifications

Optical
Source lumineuse	27 x LEDs RGB 2W [LT-100] / 54 x LEDs RGB 2W [LT-200]
Pixel pitch	35 mm
Viewing angle	2 x 130°
Addressable pixels	27 [LT-100] / 54 [LT-200]
Photometric
Total output	510 lm [LT-100] / 1020 lm [LT-200]
Efficacity	25 lm
Control & Program
Protocol	USITT DMX512A
DMX channels	81 [LT-100] / 162 [LT-200]

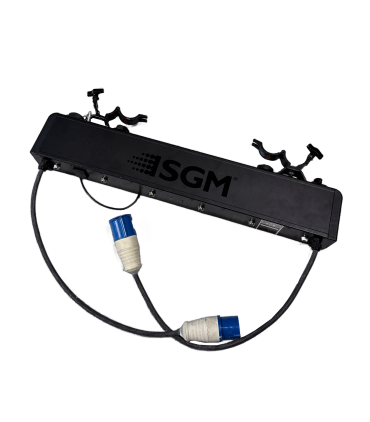

Drivers	TLD-612 / TLD-612A / ILD

Rigging possibilities	Crochet pour accroche verticale à l'extrémité du tube
Orientation	Any
Safety features	Possibilité de passer une élingue de sécurité dans le crochet
Environment
Temperature range, Operating	−40° to +50°C
Temperature range, Start-up	−20° to +50°C
Temperature range, Storage	−40° to +80°C
Cooling	Passive
Max. humidity	98%
Power
Consumption	20W [LT-100] / 40W [LT-200]
AC Power, nominal	12 V DC (± 0,2V)
Approvals
2004/108/EC : Directive CEM	EN 55022, EN 61000-6-3, EN 55024, EN 61547
Physical characteristics
Weight	330 g [LT-100] / 560 g [LT-200]
IP class	IP65
Material	Acrylique et aluminium
Connectivity
Entrée Data	Connecteur verrouillable RS-765 4 broches femelle
