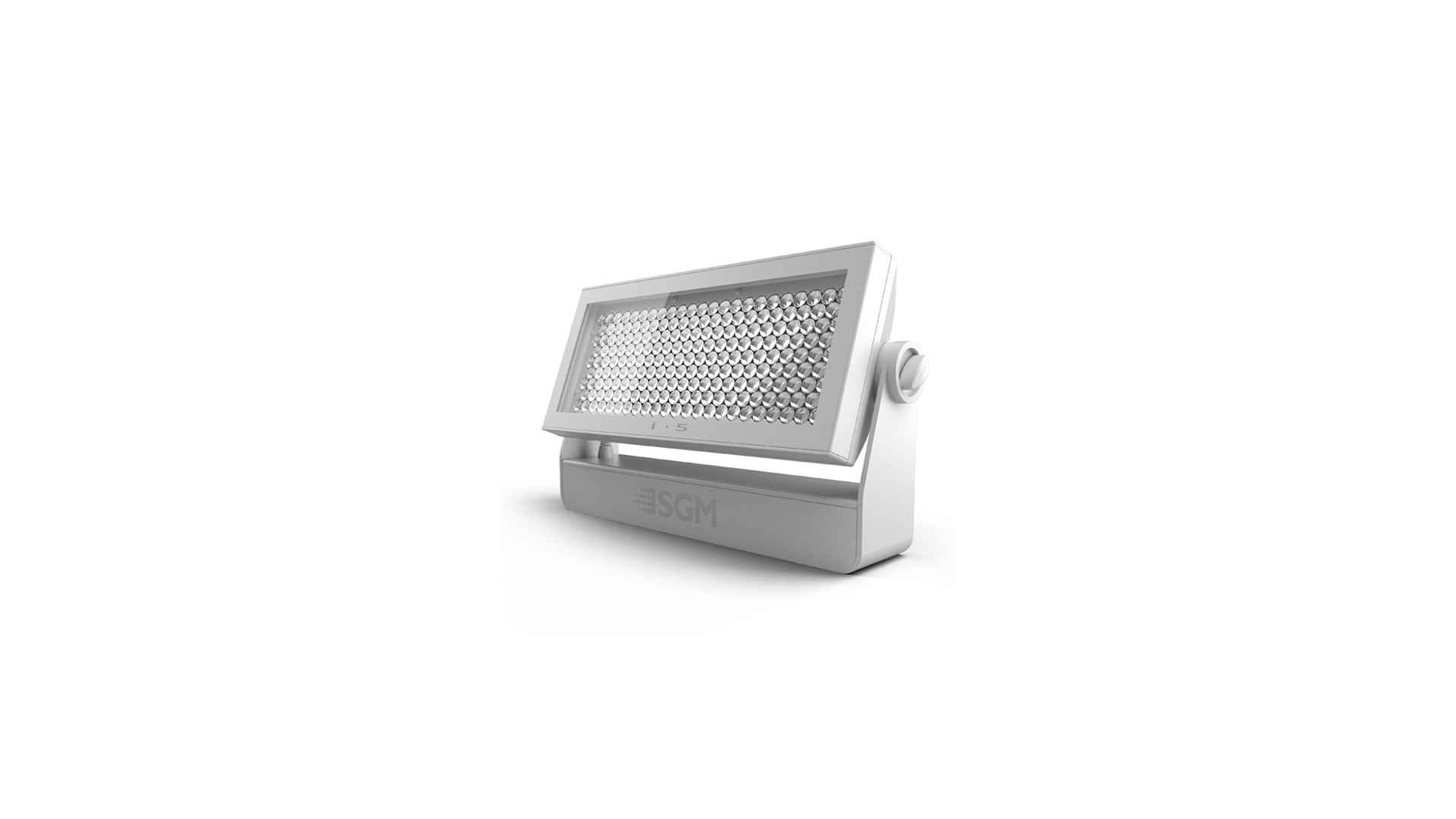

i-5 Monochrome POI

The Permanent Outdoor Installation (POI) range by SGM

The I-5 Monochrome POI is part of a range of IP66-rated lighting fixtures for permanent outdoor installations, in both entertainment and architectural applications. The POI fixtures are based on the familiar standard fixtures – with the same optical performance and electrical components, but optimized for permanent outdoor installations.

They feature extremely bright and powerful colors and a resilient housing to protect them in outdoor environments. Engineered to endure even the most extreme weather conditions, the POIs take on rainy days, icy winters, dusty winds, extreme heat and salty sprays of seawater – eliminating the need to shield off the fixtures to protect them from the elements. Additionally, the P-10 POI’s simple, durable exterior defends it from vandalism.

All POI fixtures come standard with a 5 year warranty. A patented dehumidification processor prevents condensation, which in turn prevents corrosion and ultimately prolongs the lifespan of the electronic components. This technology makes SGM the only true manufacturer of permanent outdoor LED installation products.

With the A-4 RM ArtNet to DMX converter, the POI fixtures become remotely accessible, allowing you to program your show from a remote location, upload it and schedule it on site. If connected to the internet, it works as a remote monitoring device to notify the service provider of any problems in the fixtures. Customization is part of the POI philosophy. The POI fixtures are available in white and black, as well as an array of custom RAL colors, to accommodate the requirements and high aesthetic standards of architects and designers.

LED Technology

The compact, rectangular i-5 Blue POI incorporates 203 high-power Blue LEDs, which delivers a bright and accurate beam projection for long-throws. Each individual lens in the i-5 Blue POI is related to Blue LED chips only. These optics have been designed to deliver an impressive amount of blue light when illuminating structures over long distances, while performing at a very low power consumption. The LEDs expected lifetime is 50,000 hours hours.

Optics

The 203 individual lenses of the i-5 Blue POI luminaire deliver a native 8,5° narrow beam, providing impact at up to 100m/330ft distance, whereas, the wider optics allow for wider uniform coverage. Its beam can be modified with integral holographic filters, which provides an additional four standard options of either 18° or 40° degree wash – or elliptical horizontal 60°/10° or elliptical vertical 10°/60° flat-field even distribution.

Internal honeycomb

All i-5 POI versions are available with integral honeycomb louvre, eliminating spill light and preventing direct insight to the LED.

Applications in UV version

The i-2 Monochrome UV is probably the brightest UV luminaire ever made. Traditionally, UV effects used to create “black light” in theatrical productions demand full control of any light source in the venue, since the effect is very subtle. With the i-2 UV, it is possible to achieve a powerful and true UV effect with low power and high output.

Mounting options

The universal i-5 Blue POI wash and flood light can be oriented in any position. Standard accessories include half and full anti-glare shields easily fitted to remove insight to LEDs and unwanted discomfort glare and reflections. Additionally, M-10 bolts are included, which ensures the fixture can be tightly screwed to a surface, protecting it from both vandalism and theft. The M-10 bolts are suitable for any kind of custom-made bracket and are included with all POI fixtures. Omega POI style brackets are also available for additional mounting options. Being fully RDM compatible, the i-5 Blue POI is ideal for installations in non-accessible locations.

Control

DMX/RDM is obtained through a 5m/16.4ft cable. Power is connected through a 3 x 1½ mm2 pre-fitted 5m/16.4ft cable.
