- RGB 750W Lightsource
- 13500 lumen
- 9° to 73° zoom range
- Fresnel lens
- CTC from 2000K to 10,000K
- Flicker-free
- Wireless DMX and RDM
- IP65
- The SGM patented dehumidifier integrated
- Silent performance
- Lighweight and compact
- Maintenance-free
LED Technology

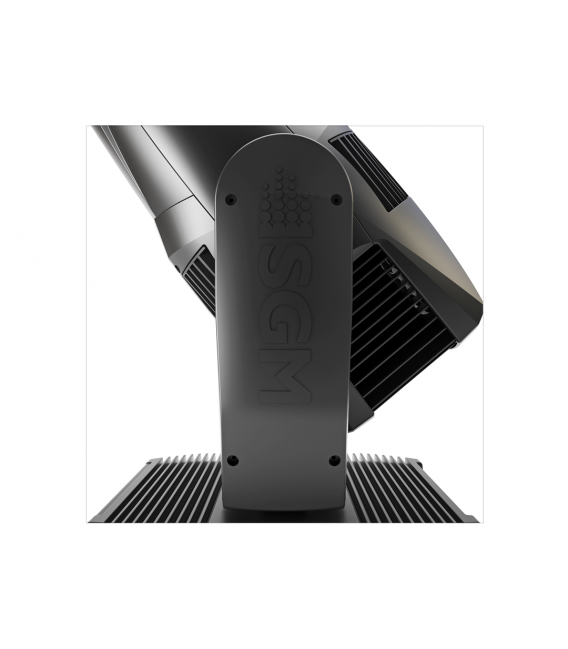

This tough and reliable LED luminaire includes a powerful 750W RGB LED engine capable of deep saturates and smooth color transitions. The G-Wash is capable of extensive color palettes, where warm, pale hues and bright color tones are combined with deep saturated blue, red, or magenta. It allows the user to generate powerful colors while controlling the beam precisely. The LEDs expected lifetime is 50,000 hours.
Colors
When it comes to colors, the G-Wash really makes a difference. The SGM color mix is applied in this wash moving head at its best, generating bright tones never seen before in a Fresnel luminaire. However, the G-Wash is also a great light source to create bright and versatile dynamic whites, as it comes with linear color temperature control from 2000K - 10000K. The G-Wash is designed to improve the colors of any wash based on discharge lamps.
Optics
With a 9° to 73º zoom range, the G-Wash is ideal for any event or architectural installation. Being water, dirt, and sand proof, the internal optics are always clean ensuring maximum brightness from the light source. Worst case scenario, the front lens must merely be wiped off, which is a huge time and cost saver, effectively eliminating the need for cleaning and maintenance.
Photometrics
The G-Wash delivers a staggering lumen output, not only in white, but also in color. It is able to achieve 3800 lumen in red, 3800 lumen in green, and 1400 lumen in blue. These high values convert the G-Wash into the perfect companion for medium-sized venues as well as for large-scale installations.
Fresnel behavior
The G-Wash is a true Fresnel-based luminaire, and it delivers the same performance a user can expect from such a projector. Unlike other LED fresnel lights, the G-Wash uses a glass fresnel front lens and the physical size of the luminaire does not change while using the zoom feature. Like the traditional hand-made fresnel projectors, the G-Wash creates sharp defined shadows in flood position and diffuse silhouettes in spot position.
Optional beam shaper
For those users who want to extend their collection of effects, the G-Wash includes the option of a beam shaper. By adding this module, the G-Wash is able to build different shapes in the beam, which can be combined with other features like zoom and colors. The optional beam shaper can work both in indexed and rotating modes over DMX, allowing the user to cover a specific area or to play with movement.
Mounting options
The G-Wash can be rigged with the included easy-fit omega brackets with ¼ turn fasteners, using two of the four locking points. Installation time can be saved onsite as the fixture can be pre-rigged to HUD truss making the rig fly-ready when reaching the venue. Handles can be found in the base as well to help users mount the fixture. Being fully RDM compatible, the G-Wash is ideal for installation in non-accessible locations.
| Optical | |
| Source lumineuse | High-Power RBGY LED |
| Zoom | 9° to 73° |
| Variable aperture | Intensity optimized / Projection optimized |
| Fresnel lens diameter | 200 mm |
| Photometric | |
| Total output | 13 500 lm (all LEDs on) - 3800 lm (red) - 3800 lm (green) - 1400 lm (blue) |
| Efficacity | 14 lm/W |
| Colour temperature range | 2000K - 10000K |
| Fixture features | |
| Pan | 540° |
| Tilt | 270° |
| Dimming | Electronic |
| Strobe | Ultra-high-speed strobe effect (1-50Hz) |
| Dehumidifier | Base / Head |
| Control & Program | |
| Protocol | USITT DMX512A |
| Setting and addressing | Control panel, RDM or RFID |
| DMX channels | 16 / 19 |
| Colour temperature control | 2000K - 10000K |
| Wireless DMX | LumenRadio with RDM |
| Standalone mode | Up to 24 programmable scenes |
| Connectivity | |
| Data (DMX) | IP65 Neutrik HD locking XLR 5-pin cable, 0.2m |
| Power | |
| Power supply unit | Auto-ranging electronic switch-mode |
| Consumption | 1100W |
| Standby power | 75W |
| AC Power, nominal | 200 - 240VAC 50/60 Hz |
| AC Power, max. rating | 190 - 264VAC 50/60 Hz |
| DC Power | Neutrik powerCON TRUE1 |
| Physical characteristics | |
| Height | 821 mm |
| Width | 585 mm |
| Depth | 492 mm |
| Weight | 49 kg |
| IP class | IP65 |
| Material | Aluminium, Steel, Plastic PA6.6 |
| Environment | |
| Temperature range, Operating | −40° to +50°C |
| Temperature range, Start-up | −20° to +50°C |
| Temperature range, Storage | −40° to +80°C |
| Cooling | Active |
| Max. humidity | 98% |
| Approvals | |
| 2014/30/EU: EMC Directive | EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 |
| 2014/35/EU: Low Voltage Directive | EN 60598-1, EN 60598-2-17, EN 62471, EN 60529 |
| RoHS2 Directive | 2011/65/EU |
| Additional information | |
| Included items | Two Omega brackets with 1/4-turn fasteners - 2 metres Power Cable with Neutrik TRUE1 powerCON - User manual |
| Mounting points | Four times two quarter-turn locking points |
| Orientation | Any |
| Safety features | Four times two quarter-turn locking points |
| Minimum distance to combustible materials | 0.3 metre |
| Minimum distance to illuminated surfaces | 0.3 metre |
SGM Gamme G - LED frequency- 398.7 Kb
