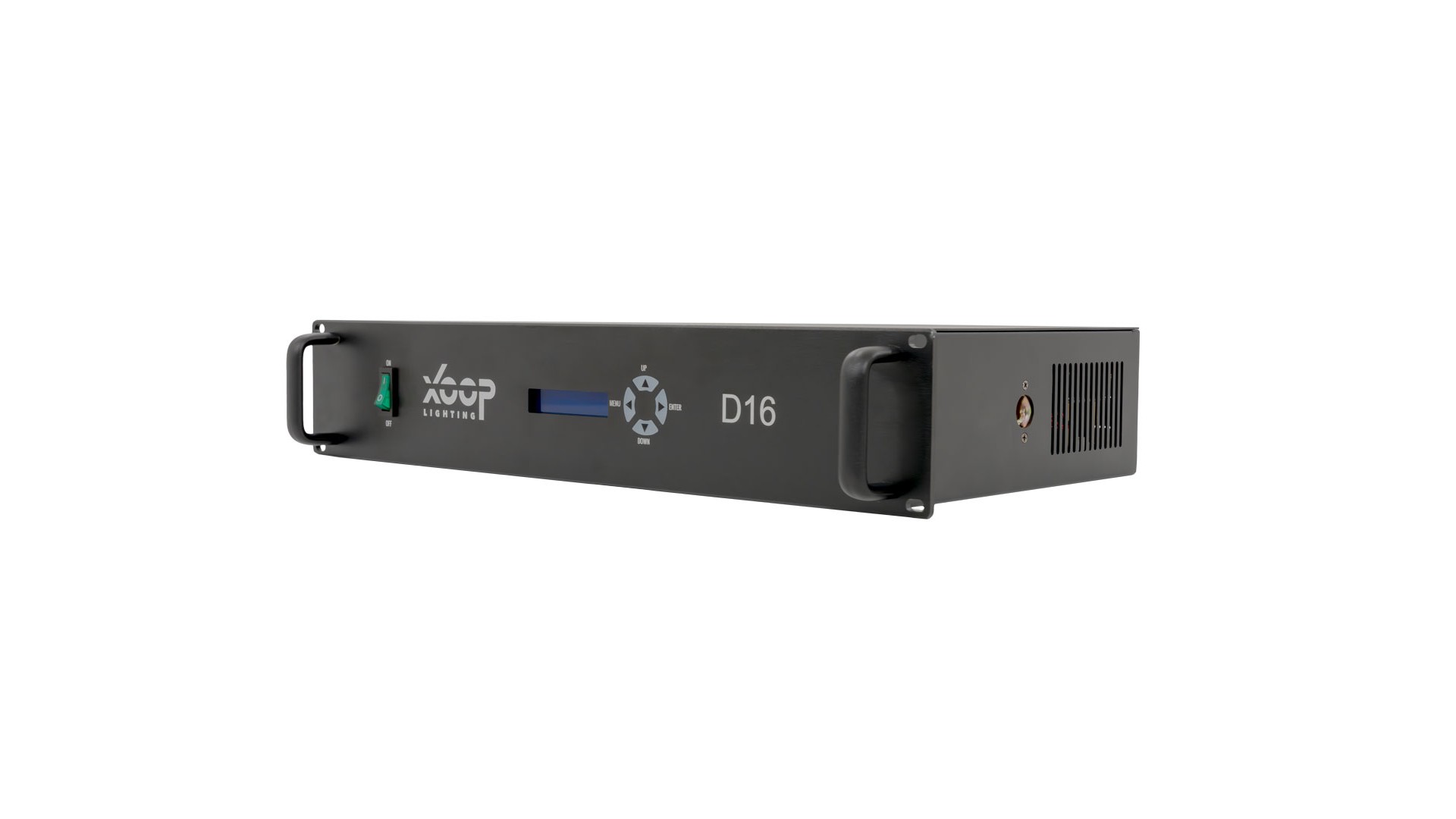

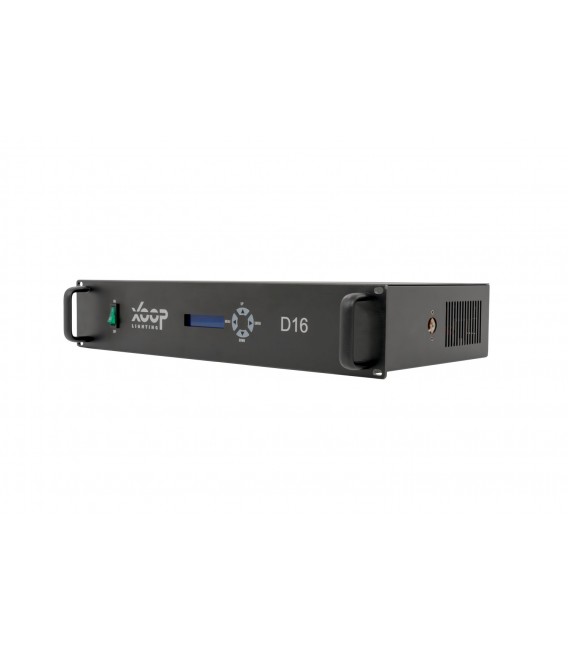

The D16 is used to power and control the XOOP 290-1 & 200-2 LED trusses. It has 16 outputs, whereby each output can supply up to 60W. This corresponds to 3m of LED truss. Each output is equipped with lockable RJ45 sockets. RJ45 connections are also available for DMX control, as are 5-pin XLR sockets. The driver is 19''-capable and can be used both on tour and in fixed installations.
- Driver for XOOP 200-2 & 290-1 LED
- 16x RJ45 output
- 60W per output
- 19'' rack mount
- DMX modes: 1, 2, 3, 4, 7, 64 &112 channel
- IP20

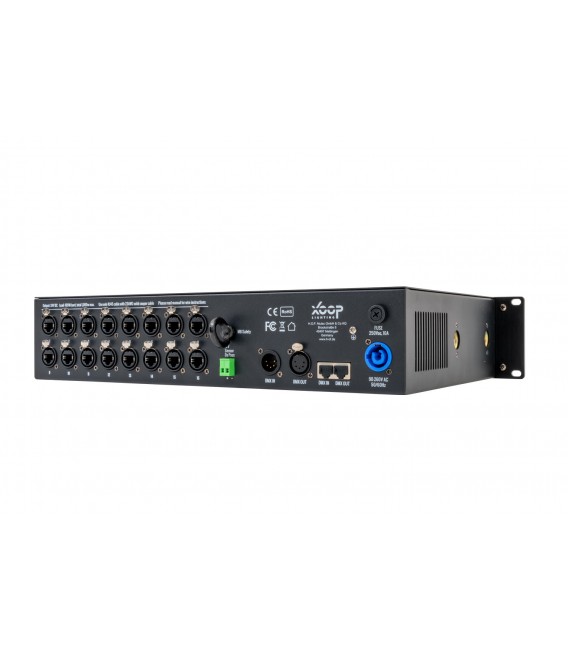

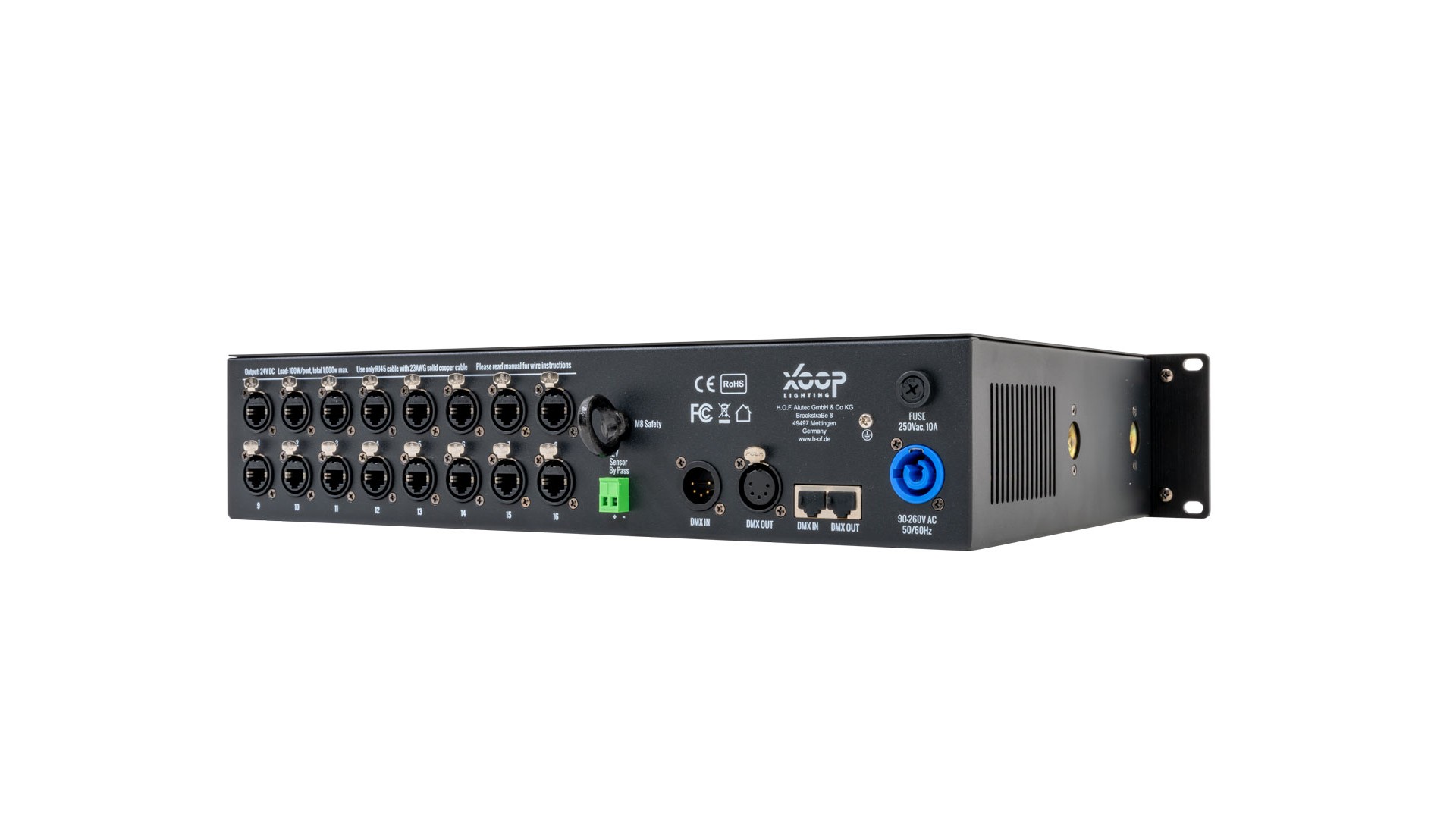

- DMX: 5-pin XLR In/Out & RJ45 In/Out
-
