VP Touring Power + Data Joiner

The VP Touring Power + Data Joiner is designed to split power and data for a daisy chain of VP fixtures in a stage lighting environment or in a temporary event. One VP Power + Data Joiner can send power and data to no less than 65 VPL 1220-20 units.

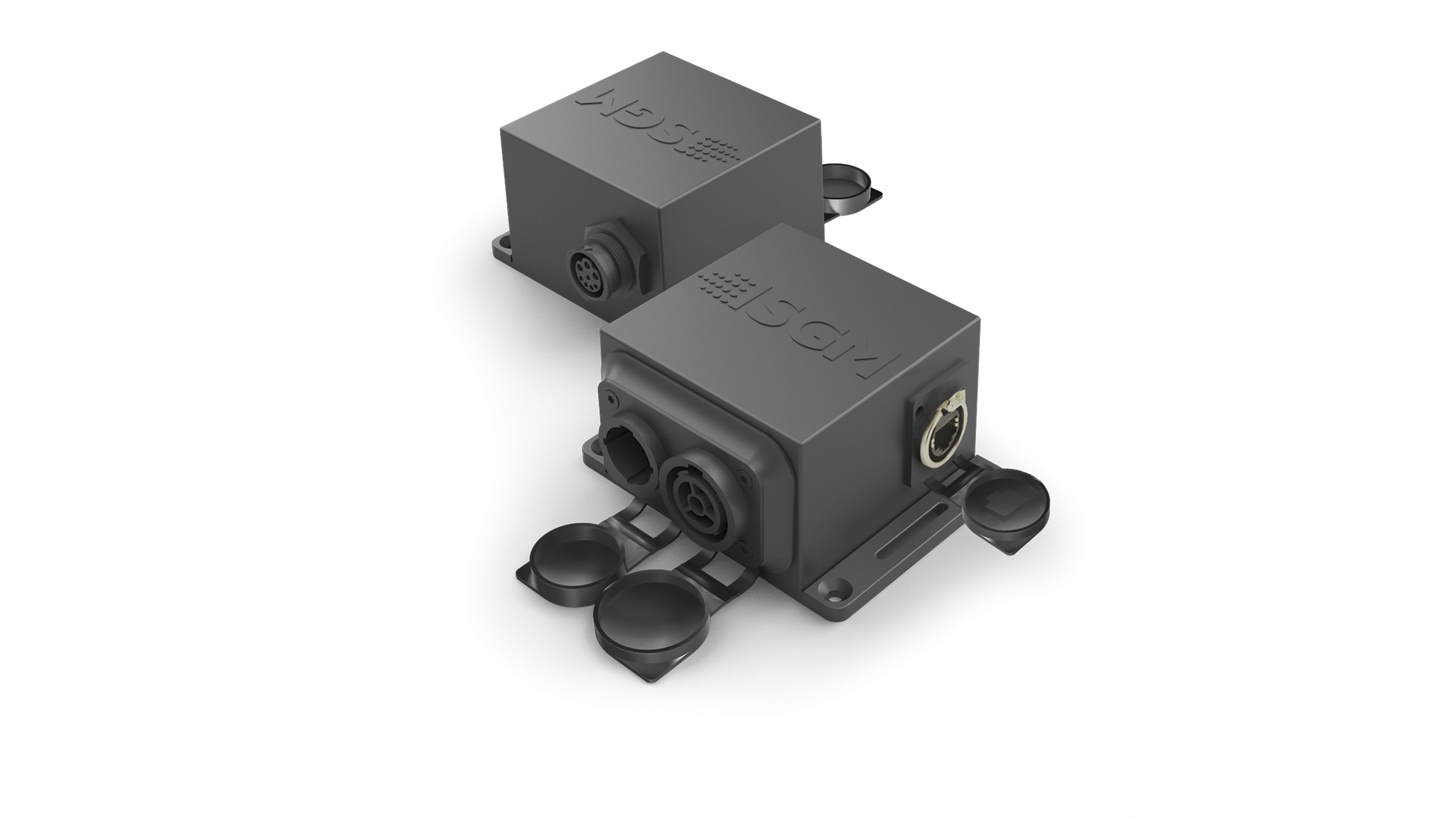

The VP Power + Data Joiner is a connection box with a VP female chassis connector, two True1 chassis connectors (Power in / Power thru), and one RJ45 chassis connector. This item must be installed before the first VP fixture in the cabled string and after the circuit breaker (for power) and VP Processor (for data). SGM always recommends to install a 10amp type B circuit breaker for each string of cabled VPL luminaires.
