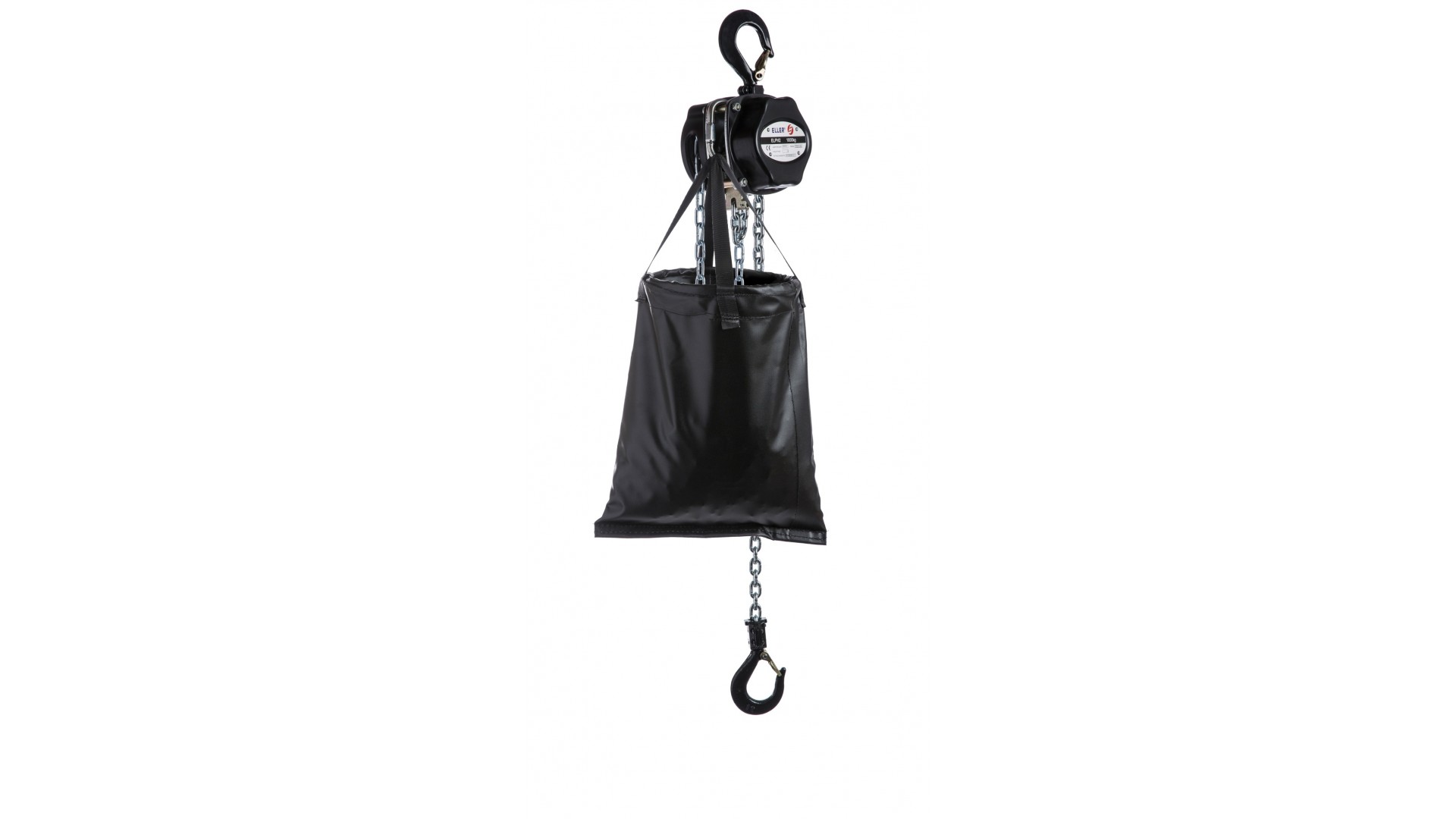

PH2 Hand hoist
The ELLER PH2 is a consistent development of the successful hand hoist PH1 and is produced with the latest technology. Compared to the PH1, it is much lighter and provides better handling due to the compact design. Despite its lower weight, the work stability has been improved due to improved construction.
• Dirt and rain have no effect on this hoist. All parts
and housing are protected against corrosion;
• Durable plated housing in black powder coating;
• Ratchet type brake with independent twin pawls for reliability and greater safety;
• Precision bearings support the pinion shaft for smoother operation and increased mechanical efficiency;
• Forged swivel top and bottom hooks made of heat-treated, tempered steel.
The hooks have robust forged safety catches;
• All parts like bolts, nuts and washers are galvanized. The gear side and hand wheel side
covers are mounted together with the same nuts;
• Robust chain connection;
• European Grade 80 tempered and galvanized load chain according to EN-818-7;
• Standard lifting height 10m and hand chain height 9.5m
• Overload protection standard built in (excl. 0,25t).
| Maximum loading | 250 kg | 500 kg | 1000 kg |
| ø chain | 4 mm | 5 mm | 6 mm |
| Standard height Lift chain | 10 m | 10 m | 10 m |
| Standard height Hand chain | 9,5 m | 9,5 m | 9,5 m |
| Lost height | 259 mm | 309 mm | 373 mm |
| Traction force | 22 kg | 24kg | 31kg |
| Weight | 10,85 kg | 16,55 kg | 23,40 kg |
OPTIONAL FEATURES:
• Chain bag with quick link;
• Available up to 30t in orange;
• Other lifting heights available upon request.
