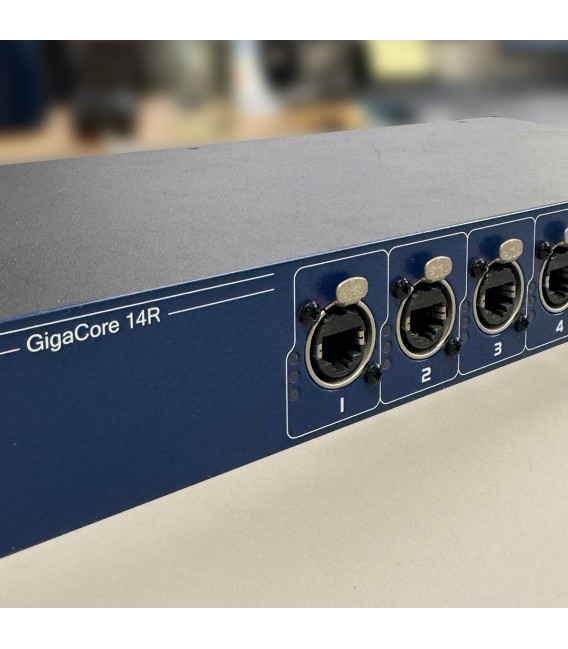

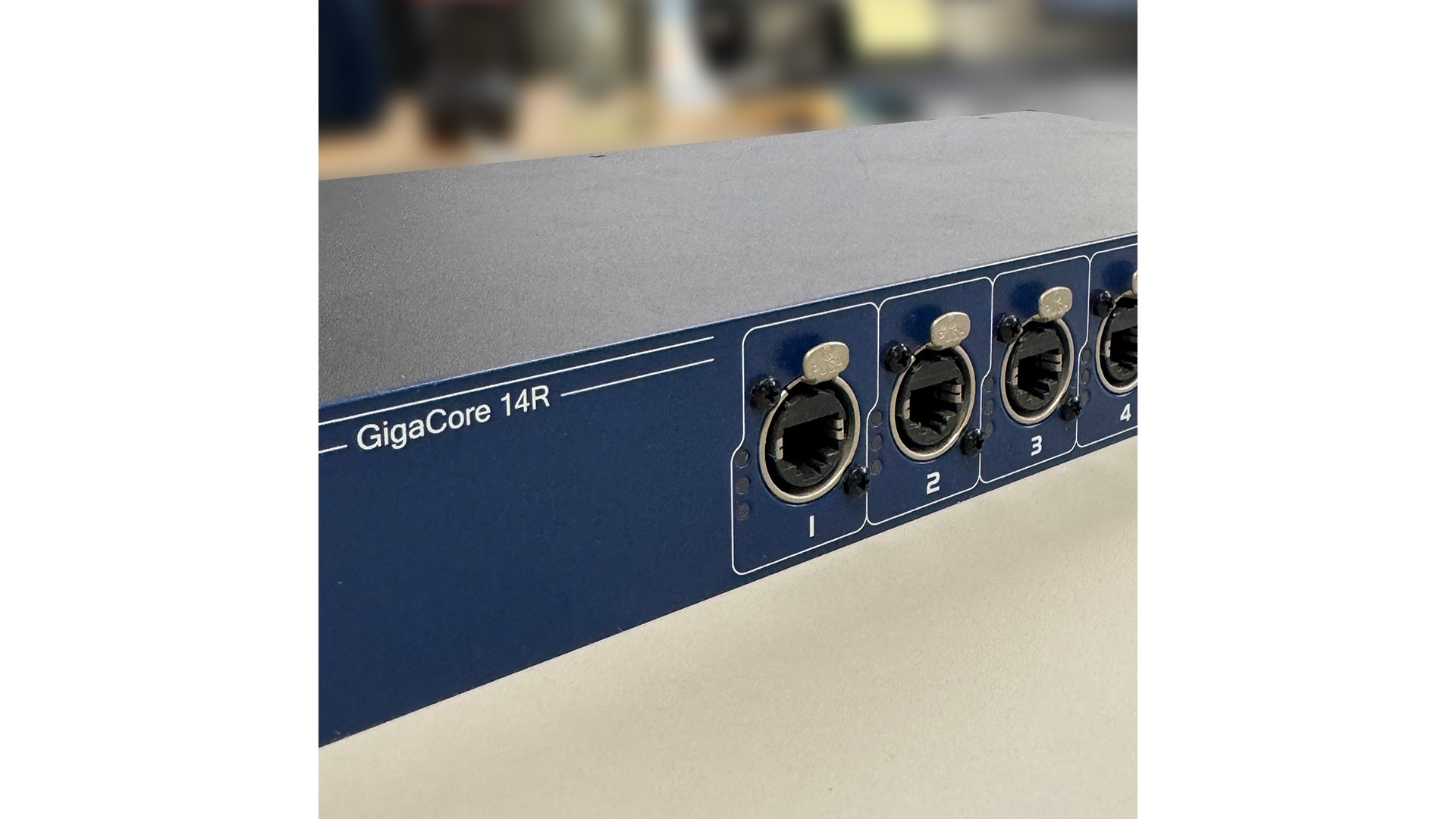

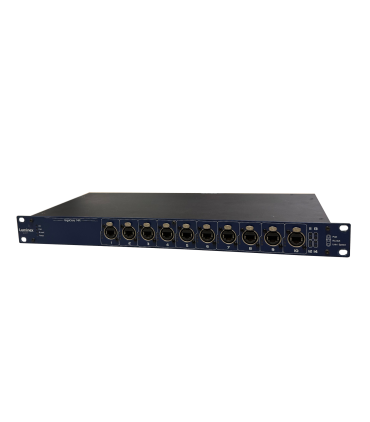

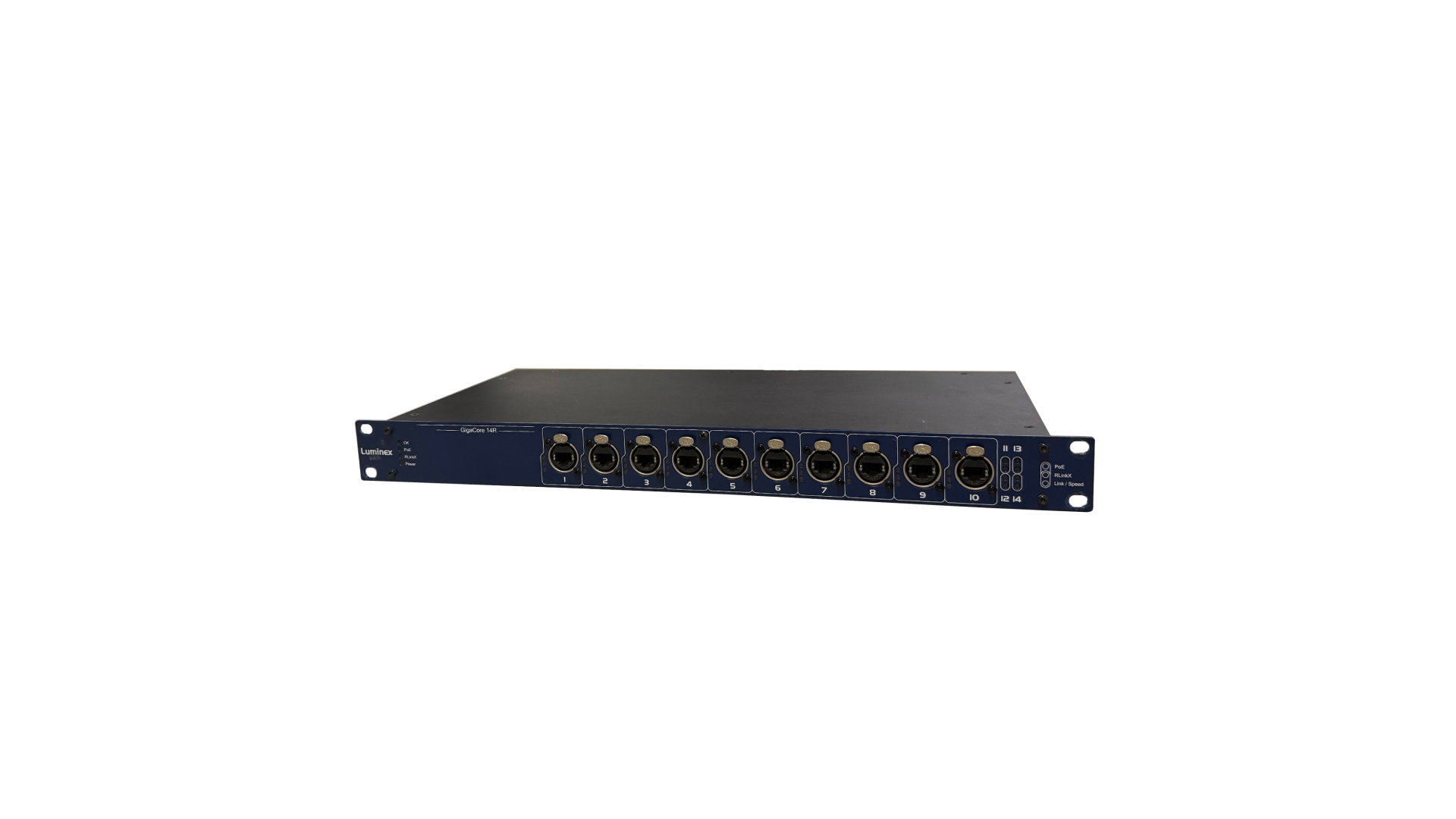

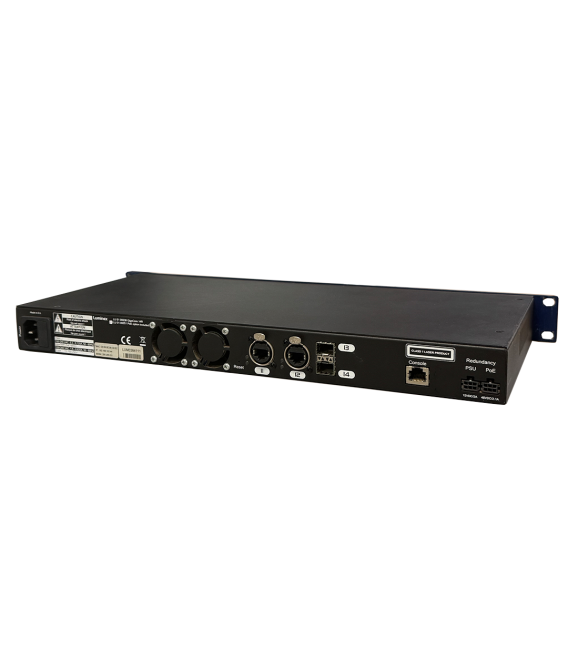

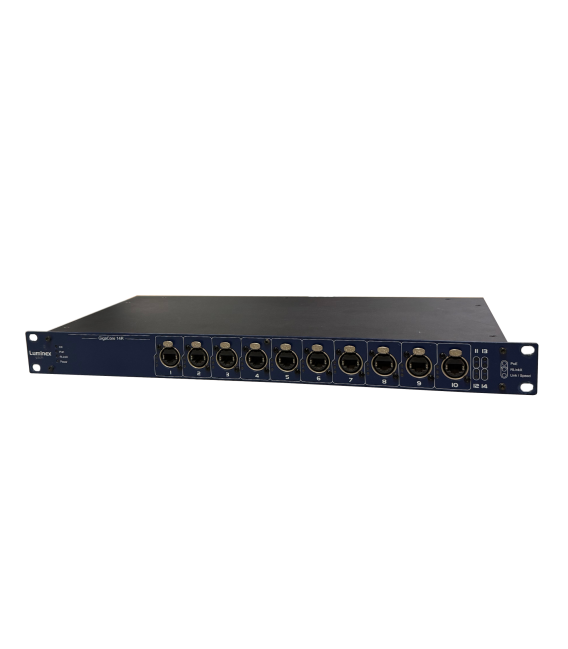

The GigaCore 14R includes all the features of the GigaCore 12 and offers two SFP connectors for fiber connections. It comes with a built-in line-level redundancy system enabled on the fiber ports, called RlinkX, making it easy to implement a reliable backbone for your network. RlinkX can also be enabled on other ports to create secure links.
The GROUP feature for better protocol isolation within your network, and MultiLinkX for increasing bandwidth between two GigaCores, are now included as standard.
The device also features redundant fans. A backup power supply and a backup PoE power supply are also available as options.
| DMX features | |
| Supported Protocols | Dante©, RAVENNA/AES67©, Ethersound©, Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2 |
| Physical characteristics | |
| Height | 44mm |
| Width | 482 mm |
| Depth | 204,3 mm |
| Weight | 2,9 kg |
| Enclosure | Bended metal |
| Operating Temperature | 0 à +50 °C |
| Ethernet features | |

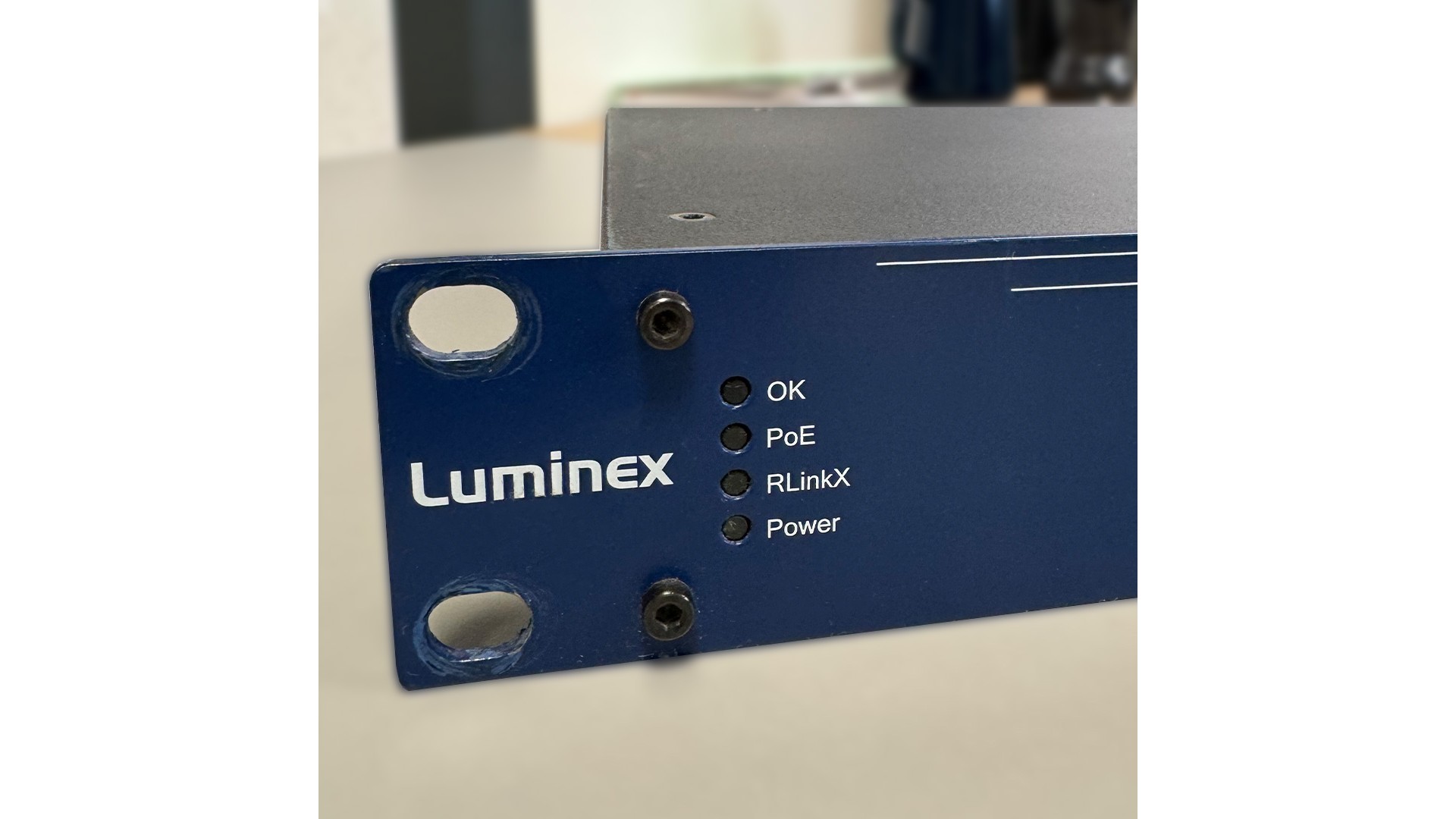

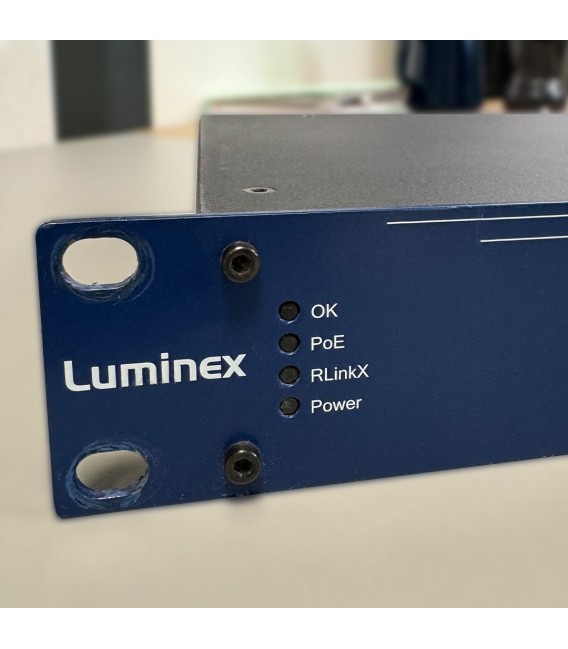

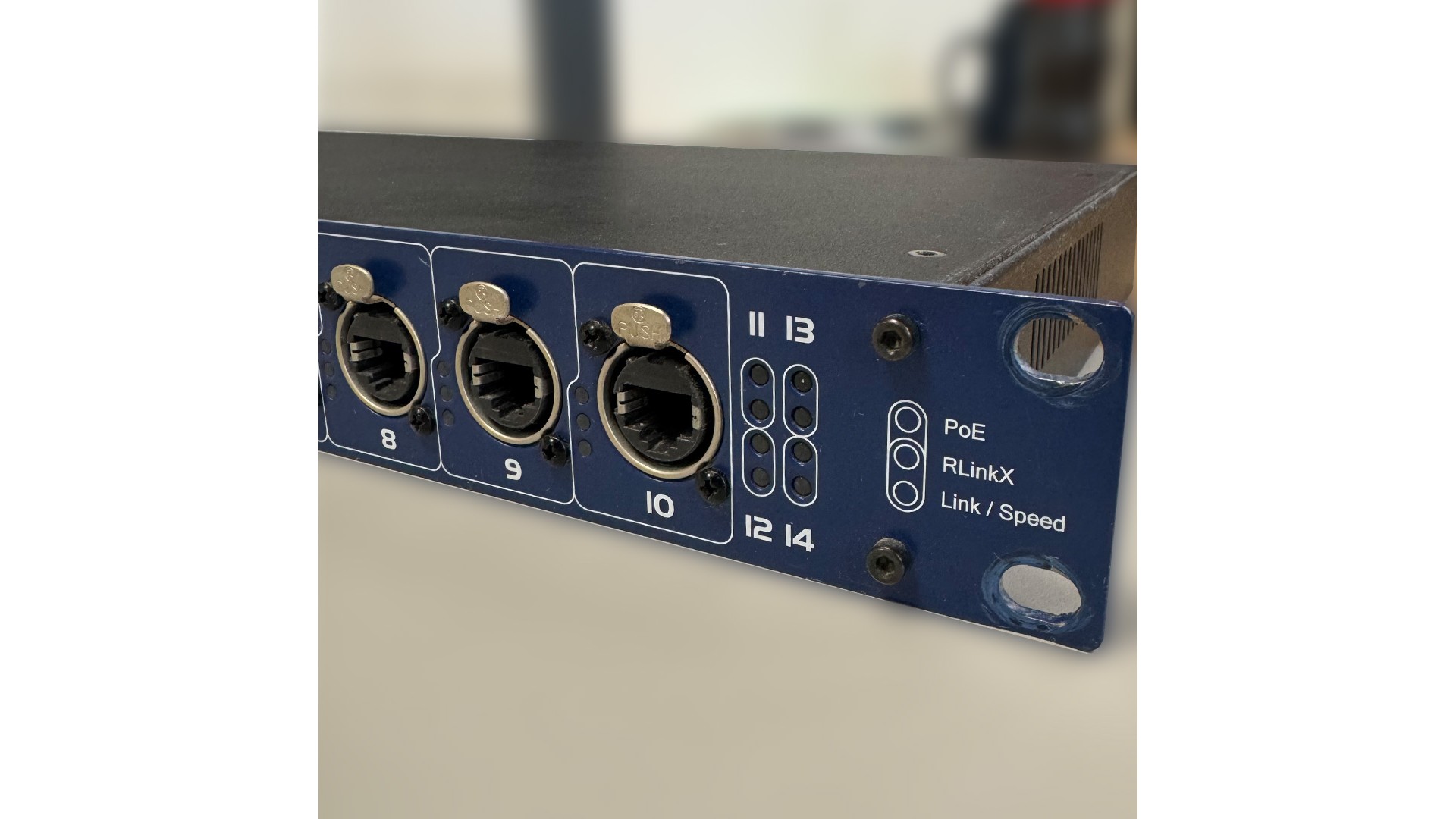

| PoE | LED de statut |
| RLinkX | LED de statut |
| Conformité Ethernet | IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet |
| Ports features | |
| Vitesse des ports | 1000 Mbps |
| Détection des ports | Auto negotiation (10BaseT, 100BaseTx, 1000BaseT) Full or Half Duplex |
| Network features | |
| Redondance | RLinkX |
| Segmentation VLAN | Groupes |
| Link aggregation | MultiLinkX |
| IGMP snooping | Oui |
| IGMP | (V1/V2/V3) |
| Profile manager | Yes |
| Capacité de commutation | 32Gbps |
| Croisement automatique | MDI / MDIX (câble droit ou croisé) |
| Connectivity | |

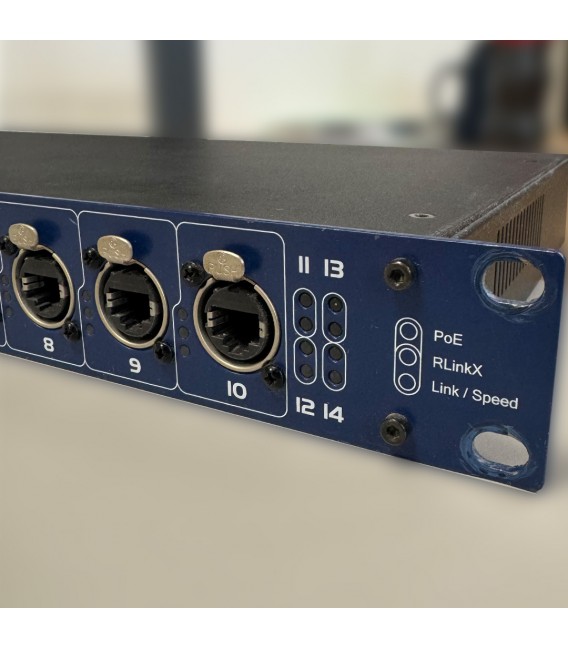

| Ethernet Ports | 12 |
| Fiber Ports | 2 |
| Connector Type | RJ45 et cages SFP |
| Power | |
| Consumption | 30W maximum (180W avec option PoE) |
| Fuse | Fusible temporisé 3.15A 250V |
| Alimentation | Status LED |
| Power Input | 100-240VAC, 50-60Hz |

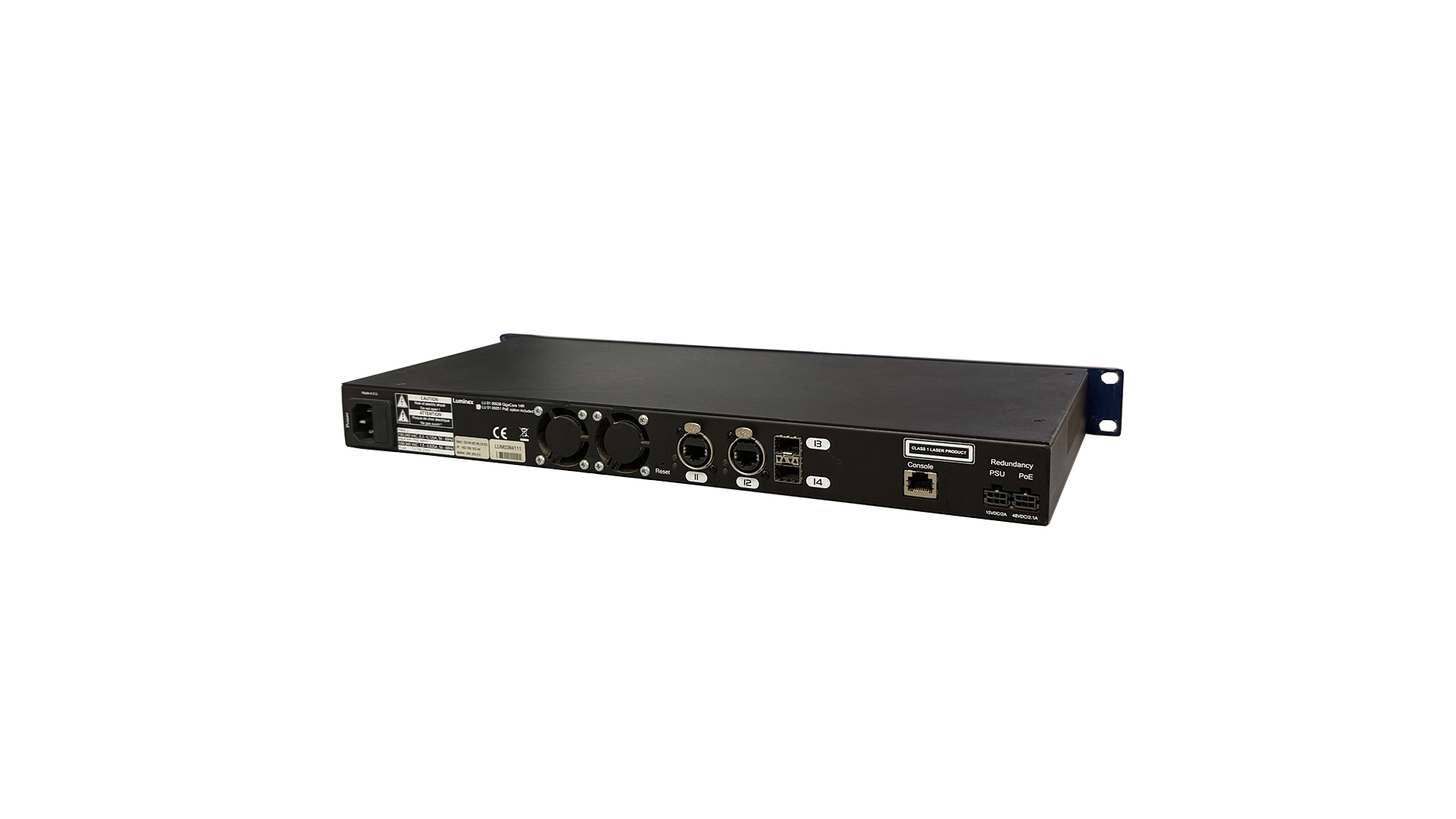

| Power | 1 x IEC avec porte fusible + 1 x entrée redondante en connecteur Molex Mini-fit Junior 6 broches + 1x entrée redondante PoE en connecteur Molex Mini-fit Junior 6 broches |
| Backup power input | 15VDC / 2A |
| Backup PoE power input | 48VDC / 3.4A |
| Environment | |
| Humidity | 5-95% non-condensing |
| Storage Temperature | -10 à +70 °C |
| Approvals | |
| Standards | EN 60950-1, EN 55022, EN 55024 |
| Approvals | CE |
| Additional features | |
| Mémoire | 4Mb |
