| Physical characteristics | |
| Height | 102 mm |
| Width | 150 mm |
| Depth | 320 mm |
| Weight | 12 kg |
| IP class | IP54 |
| Motor features | |
| Load Capacity | 250 kg |
| Lifting speed | 4m / min (optional 8m / min and 12m / min lifting speeds with lowered load capacity) |
| FEM class | 1Bm |
| Insulation class | F |
| Noise level in operation | 55 dB at 1 meter distance |
| Double-Reeved motor specifications | |
| Double Reeving Option | Double-Reeving kit available as an option |
| Double-Reeved Capacity | 500 kg |
| Double-Reeved Lifting Speed | 2m / min |
| Hook specifications | |

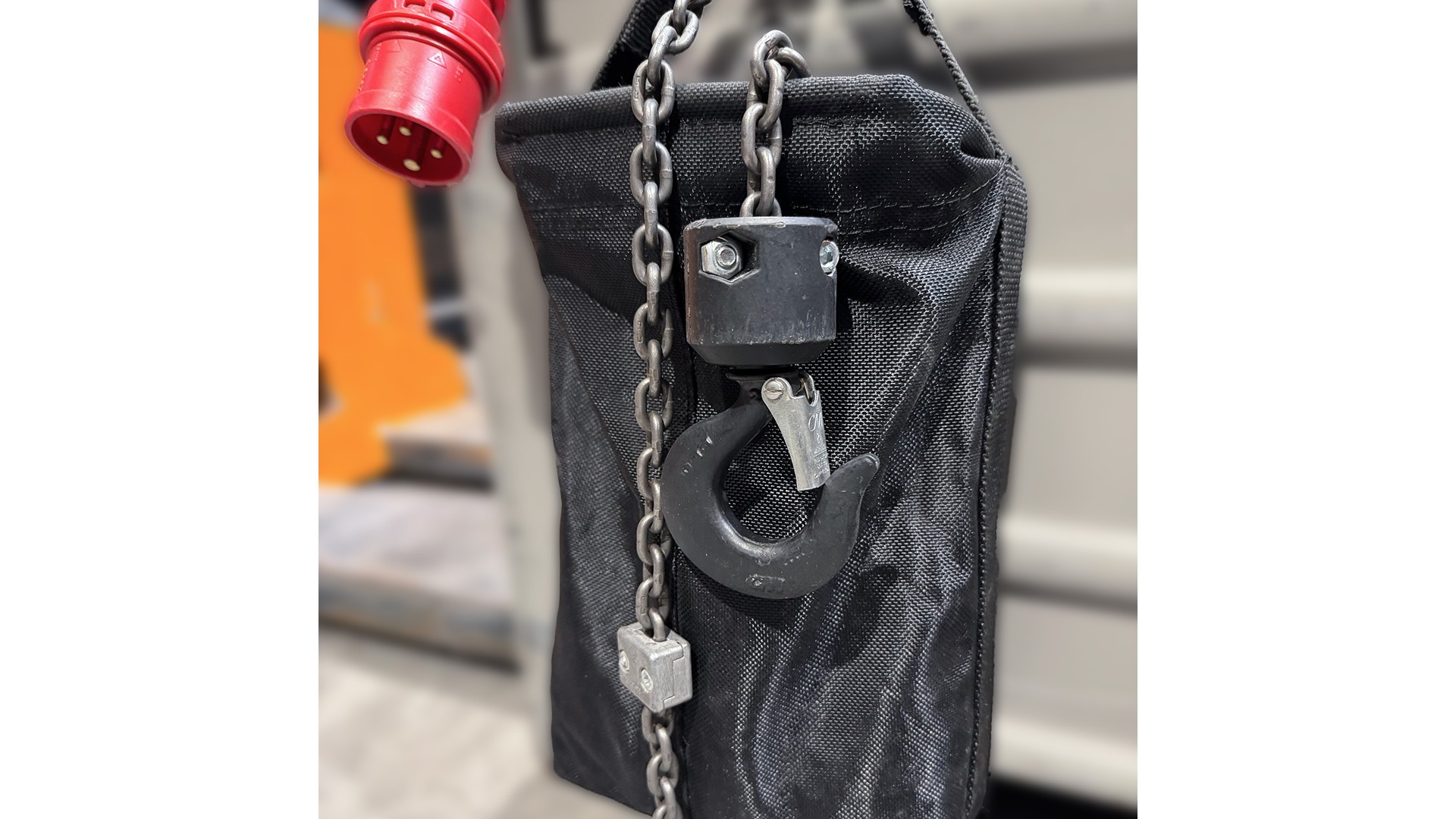

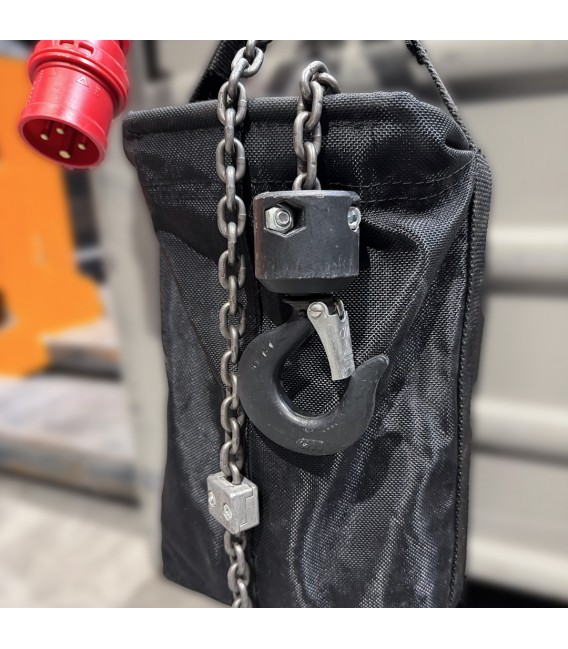

| Chain hook | Swivel hook |

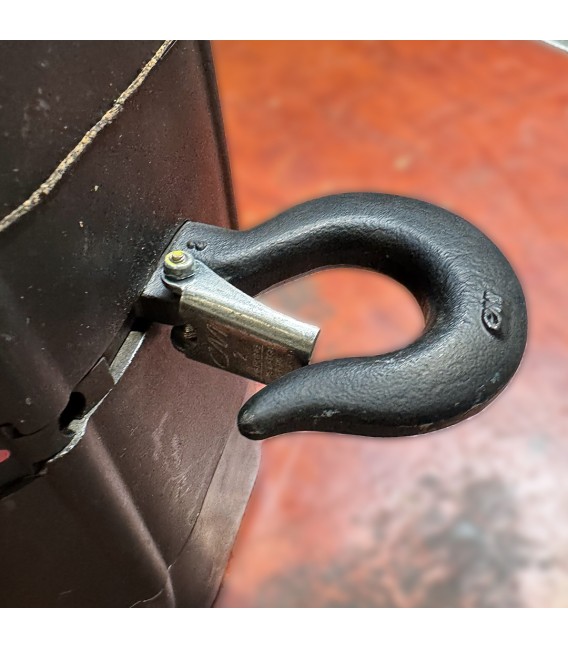

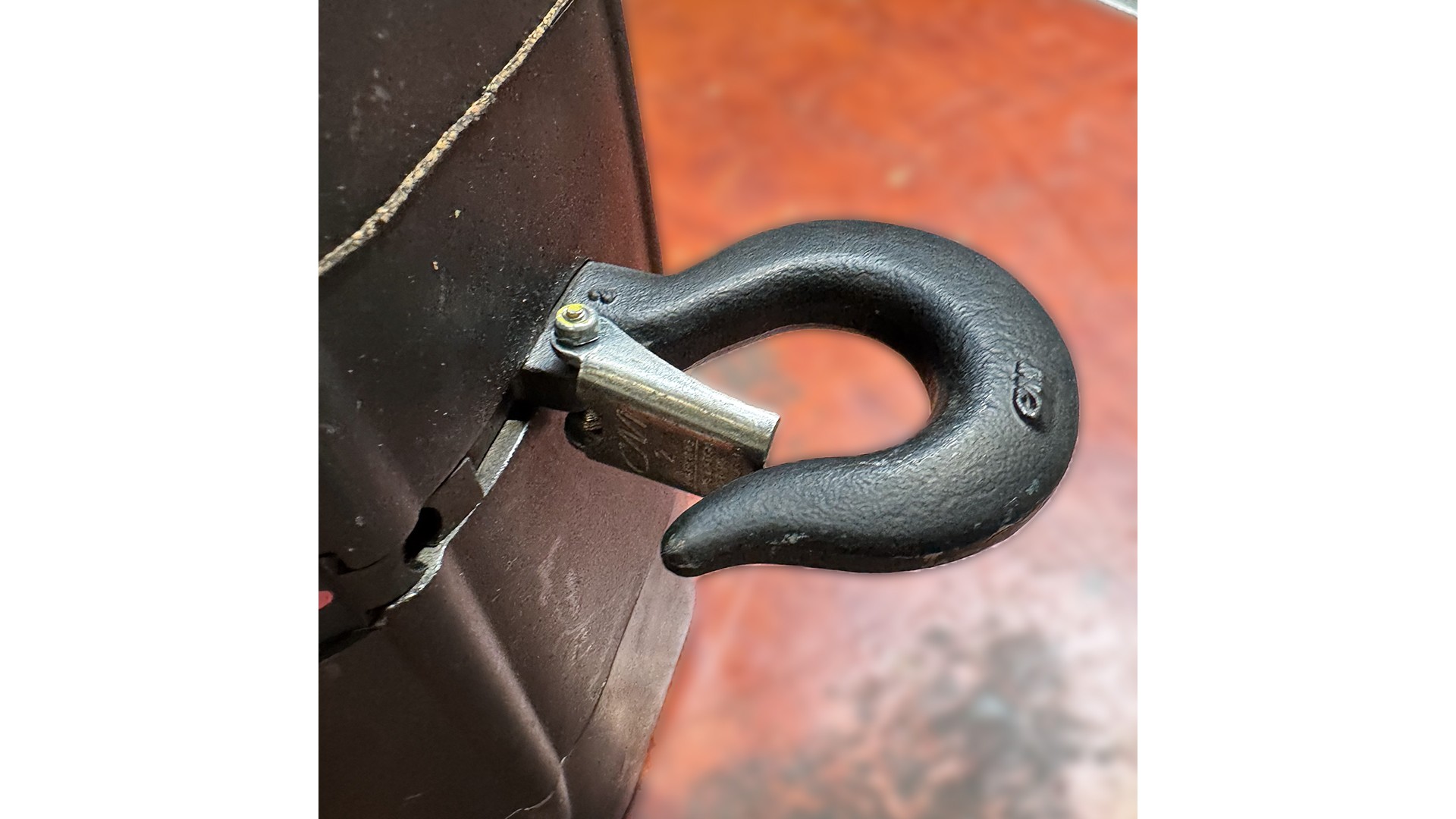

| Body hook | Fixed hook (optional swivel hook) |
| Hook type | Forged steel hooks with safety latch |

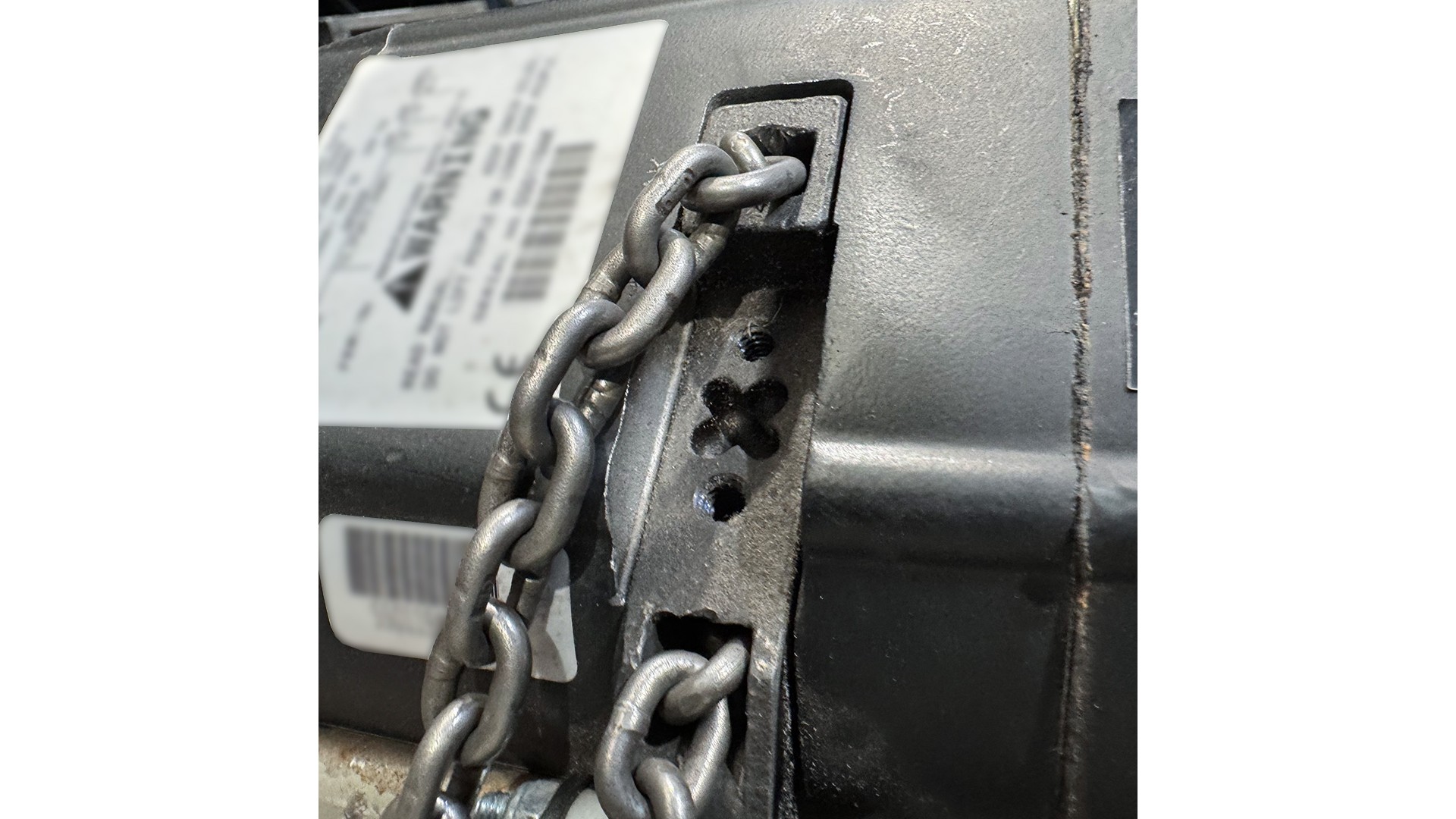

| Chain specifications | |
| Chain dimensions | 4.0 x 12.2 mm |
| Approx. chain weight | 0.35 kg per meter |
Prostar - Double Reeving Kit Assembly- 1.9 Mb
Instructions (in French with pictures) for the assembly of the double reeving kit
Prostar - Wiring Diagram - DC- 52.3 Kb
Wiring diagram for Prostar units with direct control (from 2006)
Prostar - Wiring Diagram - Single phase- 37.3 Kb
Wiring diagram of the Prostar units with single phase power and low voltage control
