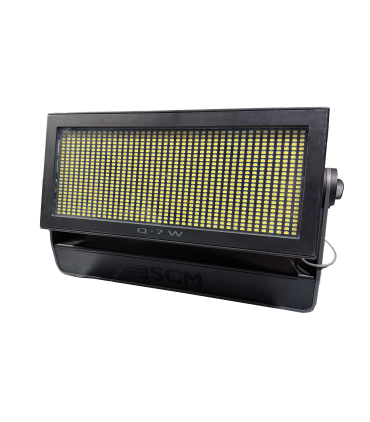

Q-7 W POI

The Permanent Outdoor Installation (POI) range by SGM

The Q-7 W POI is part of a range of IP66-rated lighting fixtures for permanent outdoor installations, in both entertainment and architectural applications. The POI fixtures are based on the familiar standard fixtures – with the same optical performance and electrical components, but optimized for permanent outdoor installations.

They feature extremely bright and powerful colors and a resilient housing to protect them in outdoor environments. Engineered to endure even the most extreme weather conditions, the POIs take on rainy days, icy winters, dusty winds, extreme heat and salty sprays of seawater – eliminating the need to shield off the fixtures to protect them from the elements. Additionally, the P-10 POI’s simple, durable exterior defends it from vandalism.

All POI fixtures come standard with a 5 year warranty. A patented dehumidification processor prevents condensation, which in turn prevents corrosion and ultimately prolongs the lifespan of the electronic components. This technology makes SGM the only true manufacturer of permanent outdoor LED installation products.

With the A-4 RM ArtNet to DMX converter, the POI fixtures become remotely accessible, allowing you to program your show from a remote location, upload it and schedule it on site. If connected to the internet, it works as a remote monitoring device to notify the service provider of any problems in the fixtures. Customization is part of the POI philosophy. The POI fixtures are available in white and black, as well as an array of custom RAL colors, to accommodate the requirements and high aesthetic standards of architects and designers.

Construction

The Q-7 W POI is an ultra-compact form-follows-function luminaire designed and manufactured in Denmark. The body and frame is made from extruded or pressure cast marine grade aluminum, Oxsilan ® pre-treated, and powder coated to corrosion class C5-M marine grade and blends in with any contemporary or historical architecture. The front lens consists of impact resistant tempered glass with marine grade stainless steel and aluminum fixings. The scale and fan cover is made of durable material, including impact and UV resistant P6. This fixture also comes with pignose tilt locks and a scale with mark on yoke for easy installation. The pignose tilt locks can be locked in place using the included key, protecting your fixed installations from vandalism and theft.

LED Technology

The compact and rectangular Q-7 W POI incorporates 1,000 high-power cool white LEDs, delivering wide-angle projections at stunning 48274 verified lumens as maximum output with a color temperature of 5700K, using only 455W. The LEDs expected lifetime is 50,000 hours.

Mounting options

The universal Q-7 W POI wash and flood light can be oriented in any position. Standard accessories include half and full anti-glare shields easily fitted to remove insight to LEDs and unwanted discomfort glare and reflections. Additionally, M-10 bolts are included, which ensures the fixture can be tightly screwed to a surface, protecting it from both vandalism and theft. The M-10 bolts are suitable for any kind of custom-made bracket and are included with all POI fixtures. Omega POI style brackets are also available for additional mounting options. Being fully RDM compatible, the Q-7 W is ideal for installation in non-accessible locations.

Control

DMX/RDM is obtained through a 5m/16.4ft cable. Power is connected through a 3 x 1½ mm2 pre-fitted 5m/16.4ft cable.

_{*The luminaire introduced in the video is the entertainment model, similar in terms of capabilities, but presenting some differences from the architectural model (lower IP, without pignose tilt lock).}
