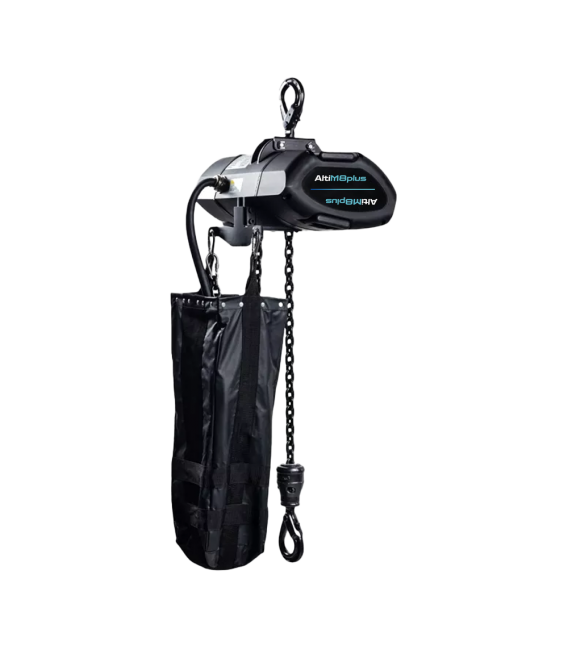

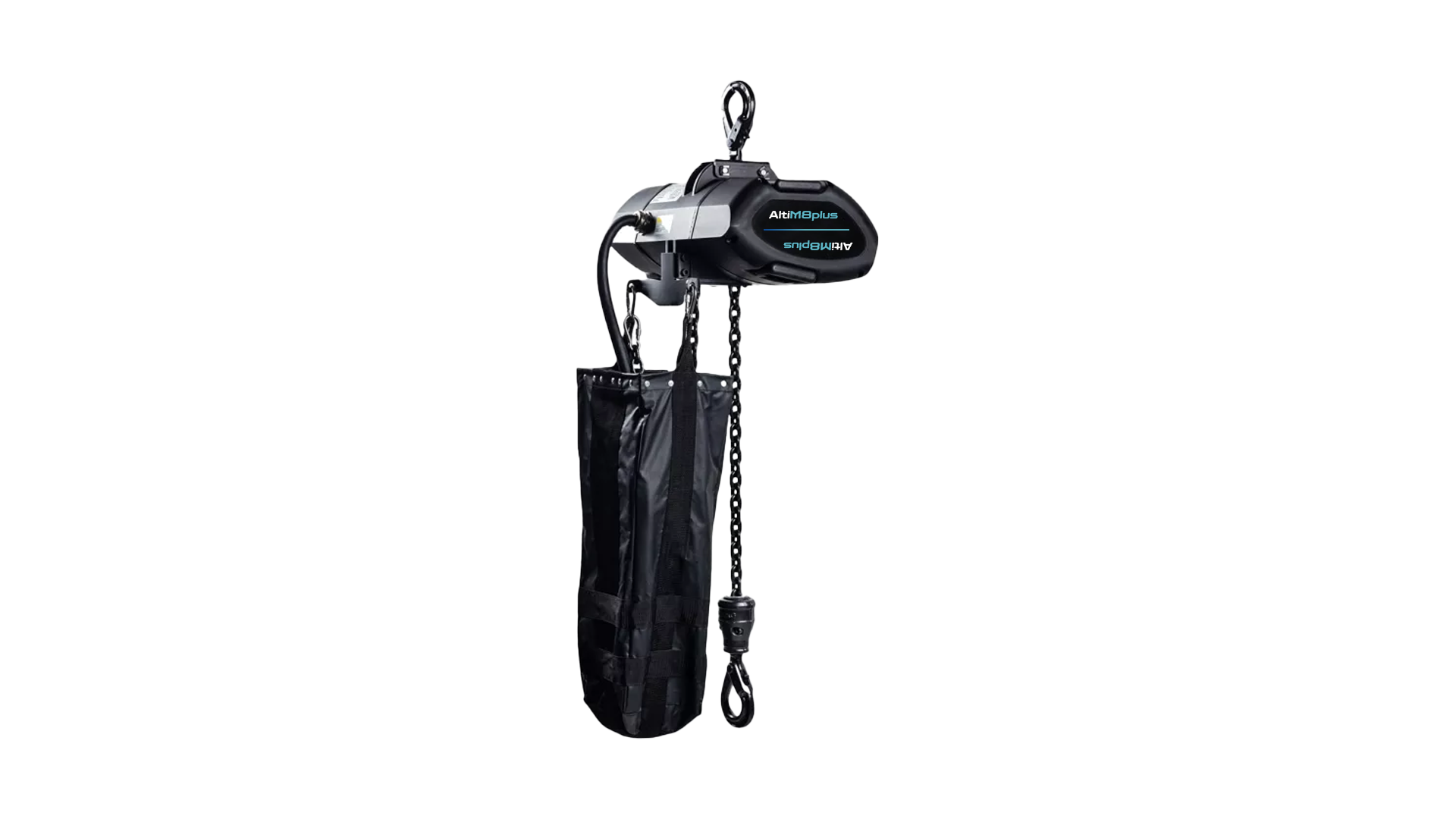

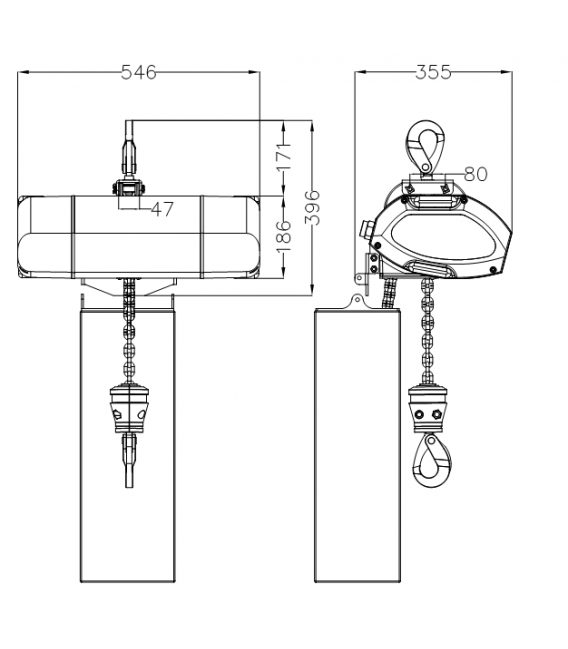

AltiM8plus - Variable High Speed Range
AltiM8plus is a range of hoists, ranging from 200 to 2000 kg E.L.L and can do fixed speed as well as speed variation. These products are quick to pick up, easy to use and represent a major innovation while remaining accessible.
I I I I I
Technical Specifications
- One fall unit type only for all SWL
- Light body weight
- Compact dimensions
- ISO/ FEM Class : M5/2M+
- Double DC brake as standard
- Safety factor : 8:1 (Static) D8+ / 10:1 (Static) C1
- Minimum D8+ as standard
- IP Protection IP 66 as standard
- Low noise level
- Black lifting chain DIN EN 818-7 from german manufacturer
- Top and lower rotating hook, DIN type
- Automatic Hook (except for model with integrated load cell)
- 5 Pockets wheels
- Foldable transportation handle (2 on top + 2 on bottom)
- Versatile configuration climbing or industrial position
Options
- Gear Limit switches 4 step
- Encoder (Absolut or incremental)
- Load monitoring
- Large range of controller (Fix speed variable, speed, ….)
- Chain slider
-
