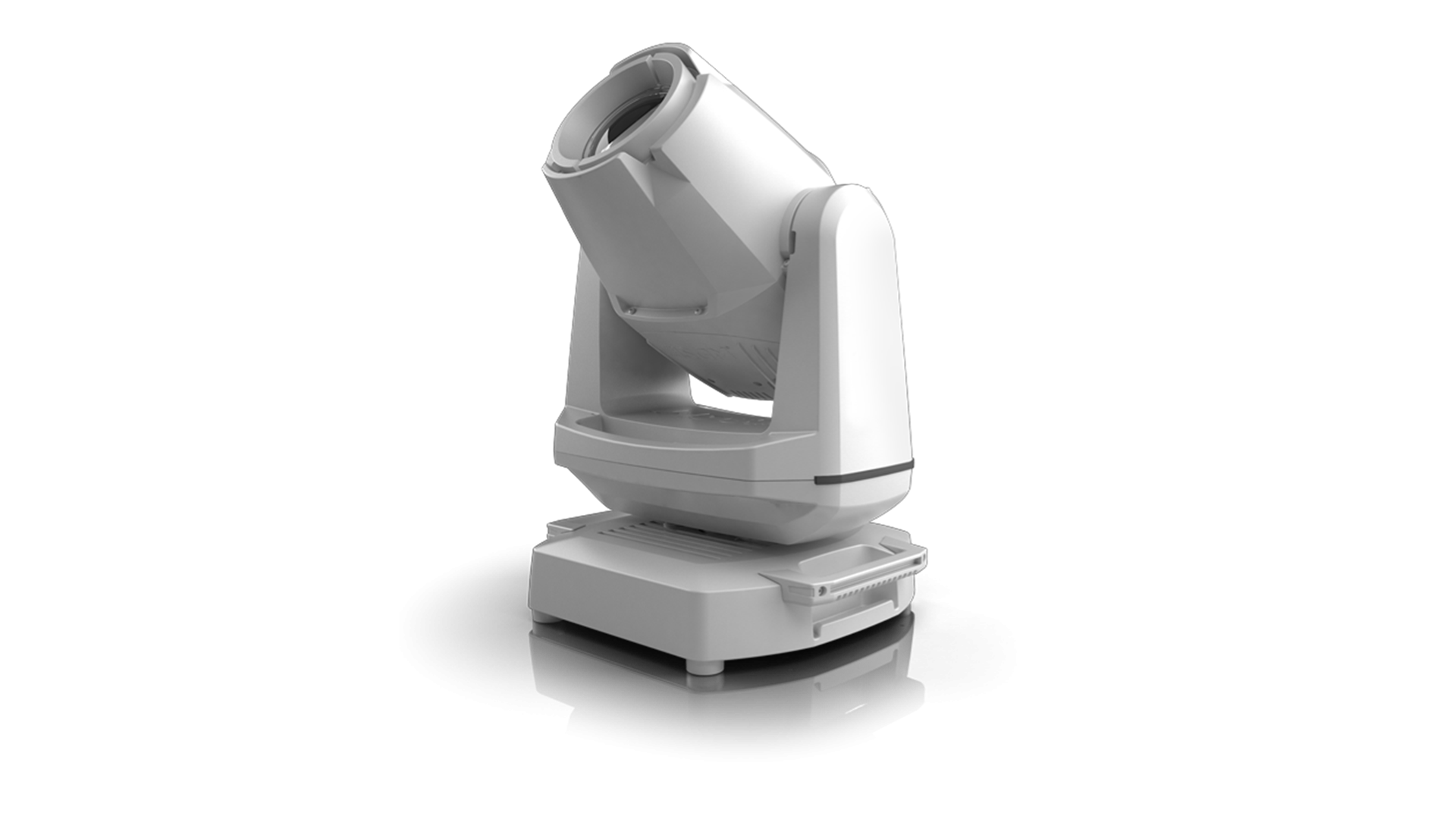

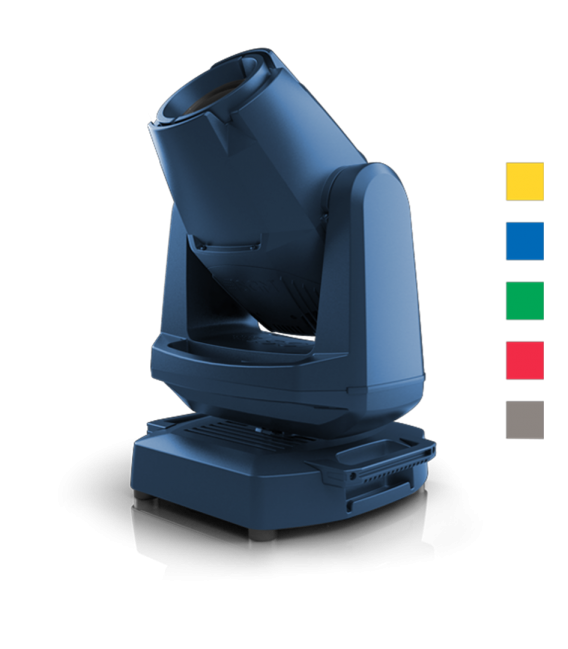

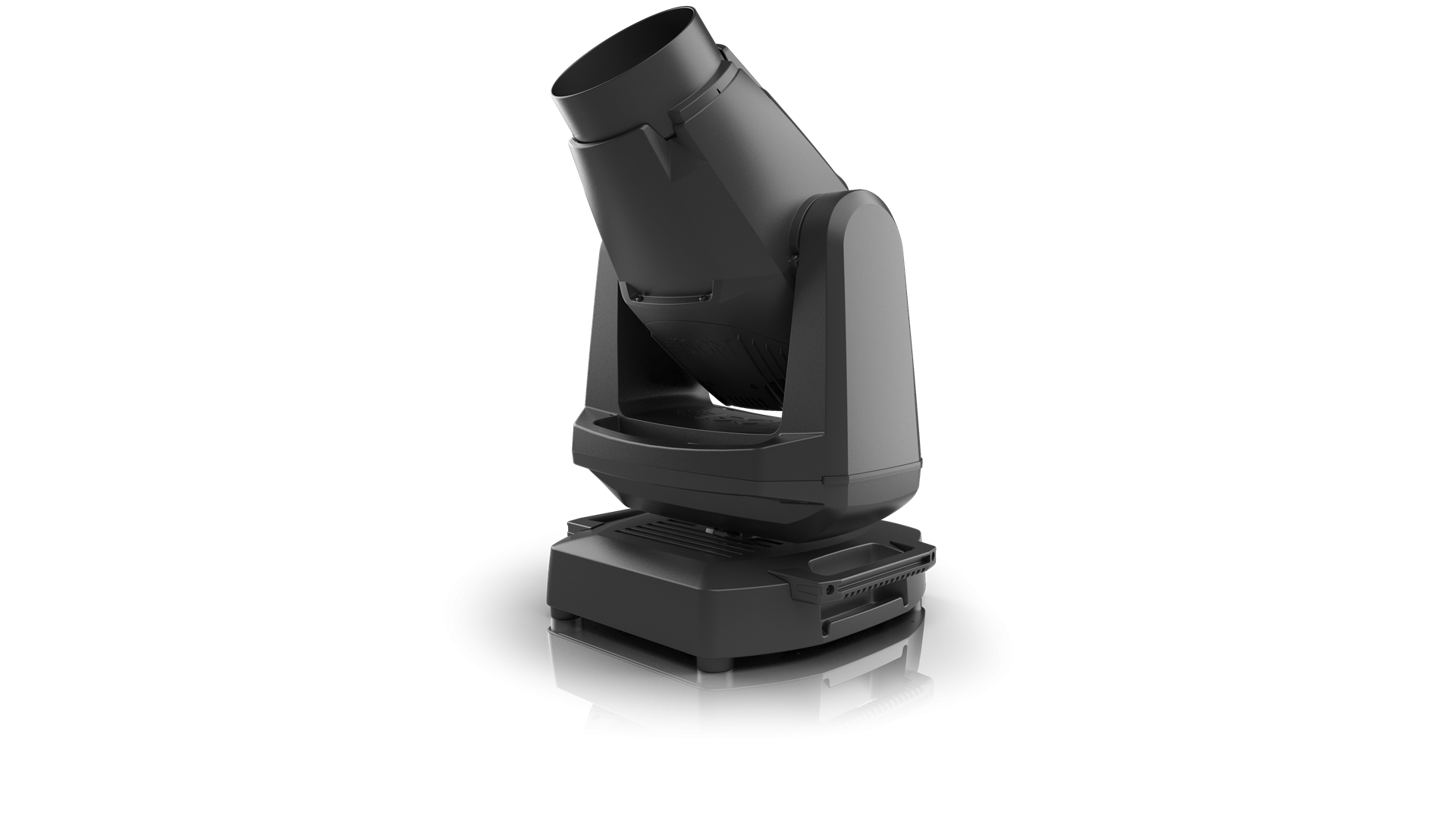

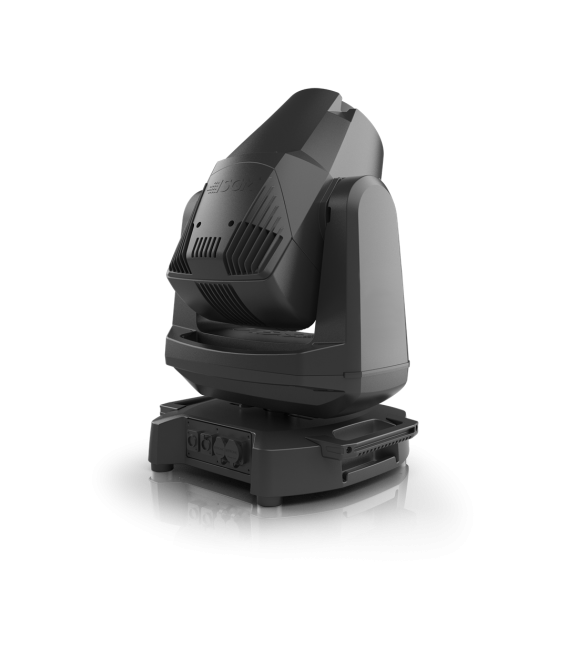

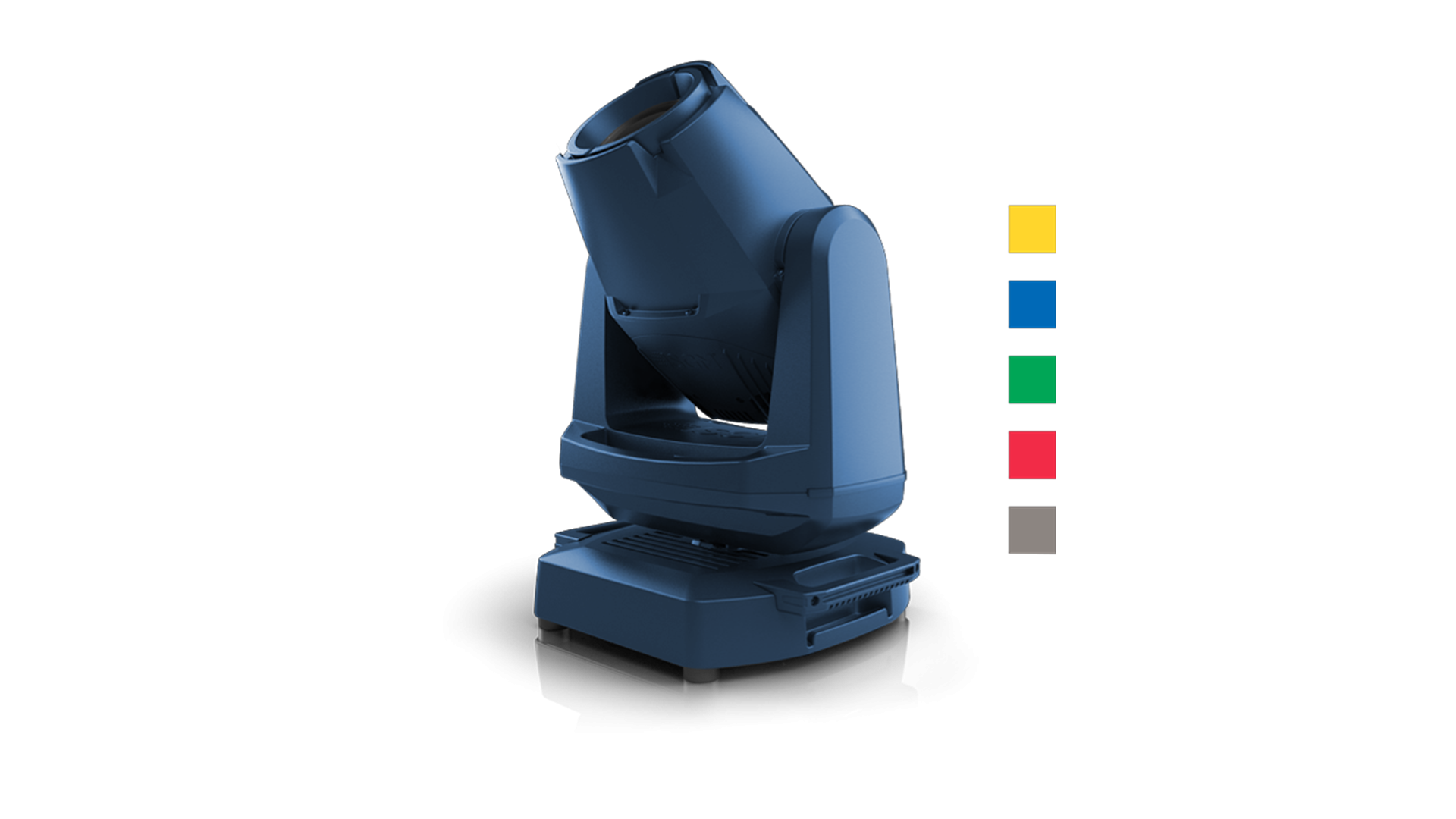

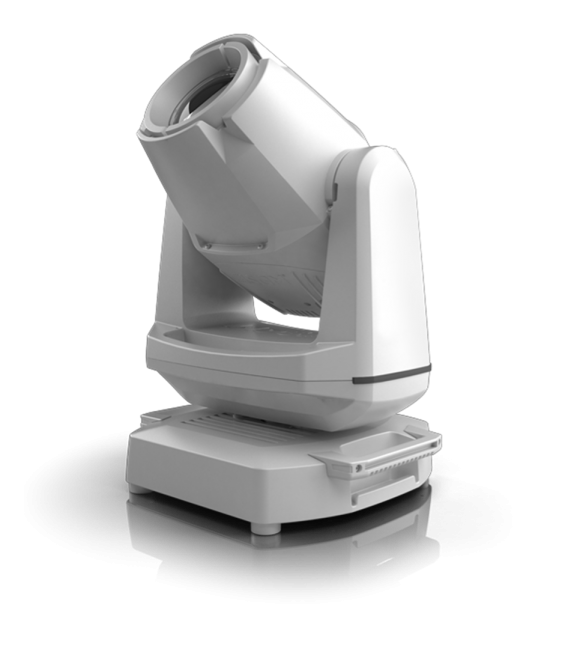

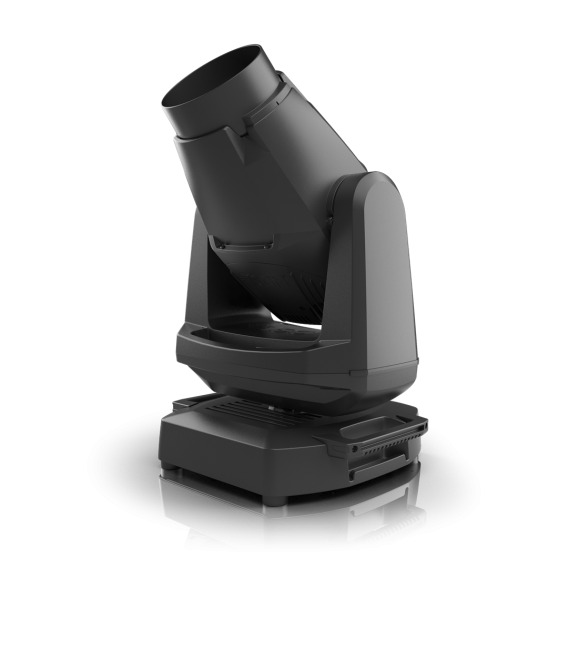

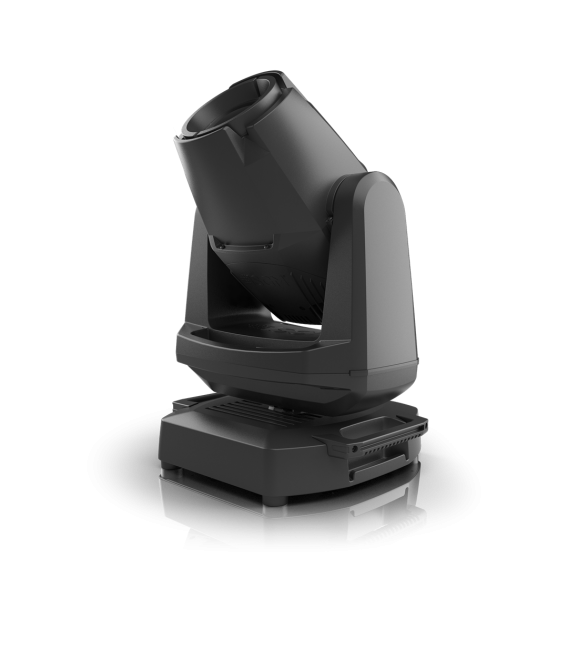

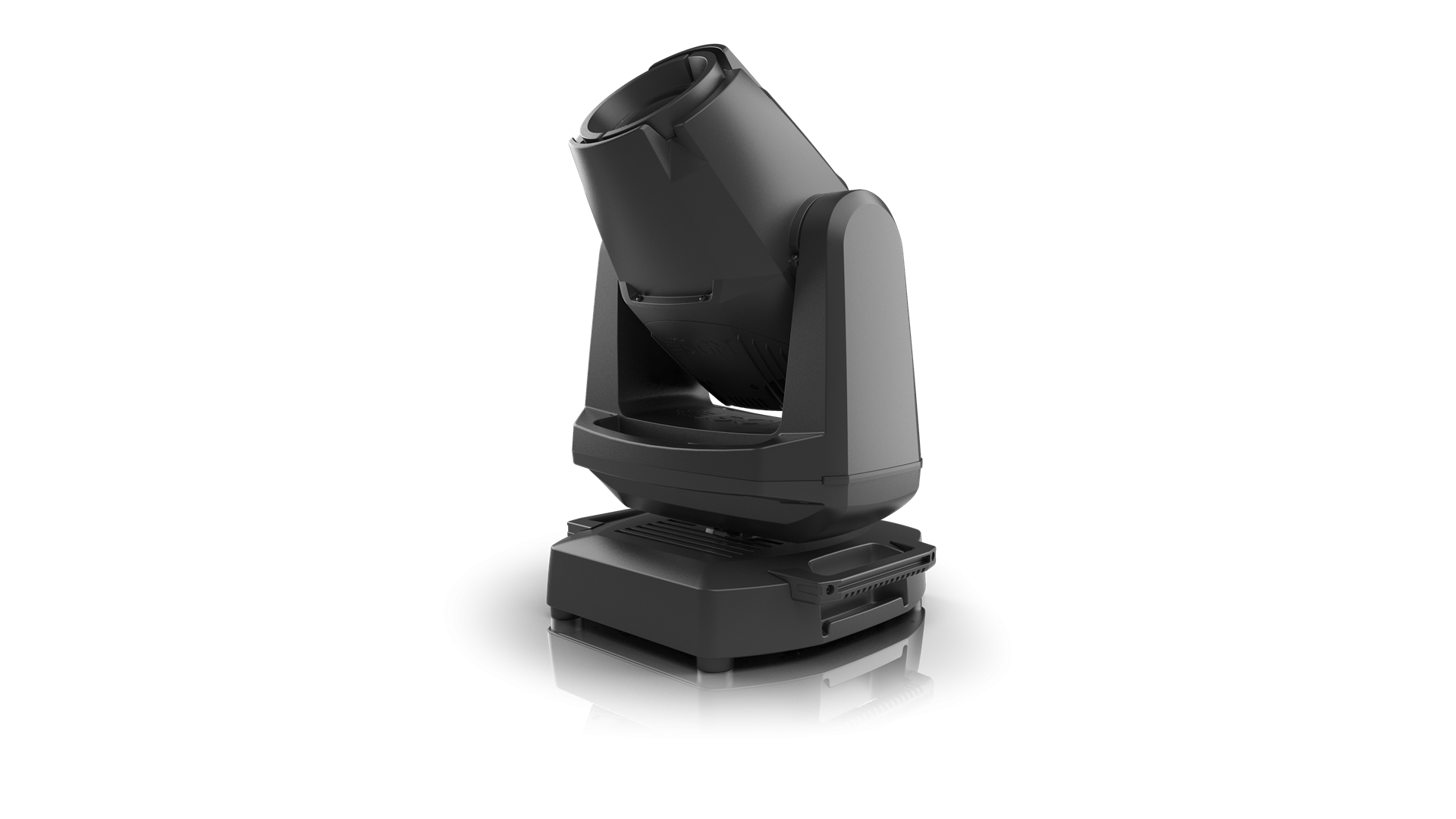

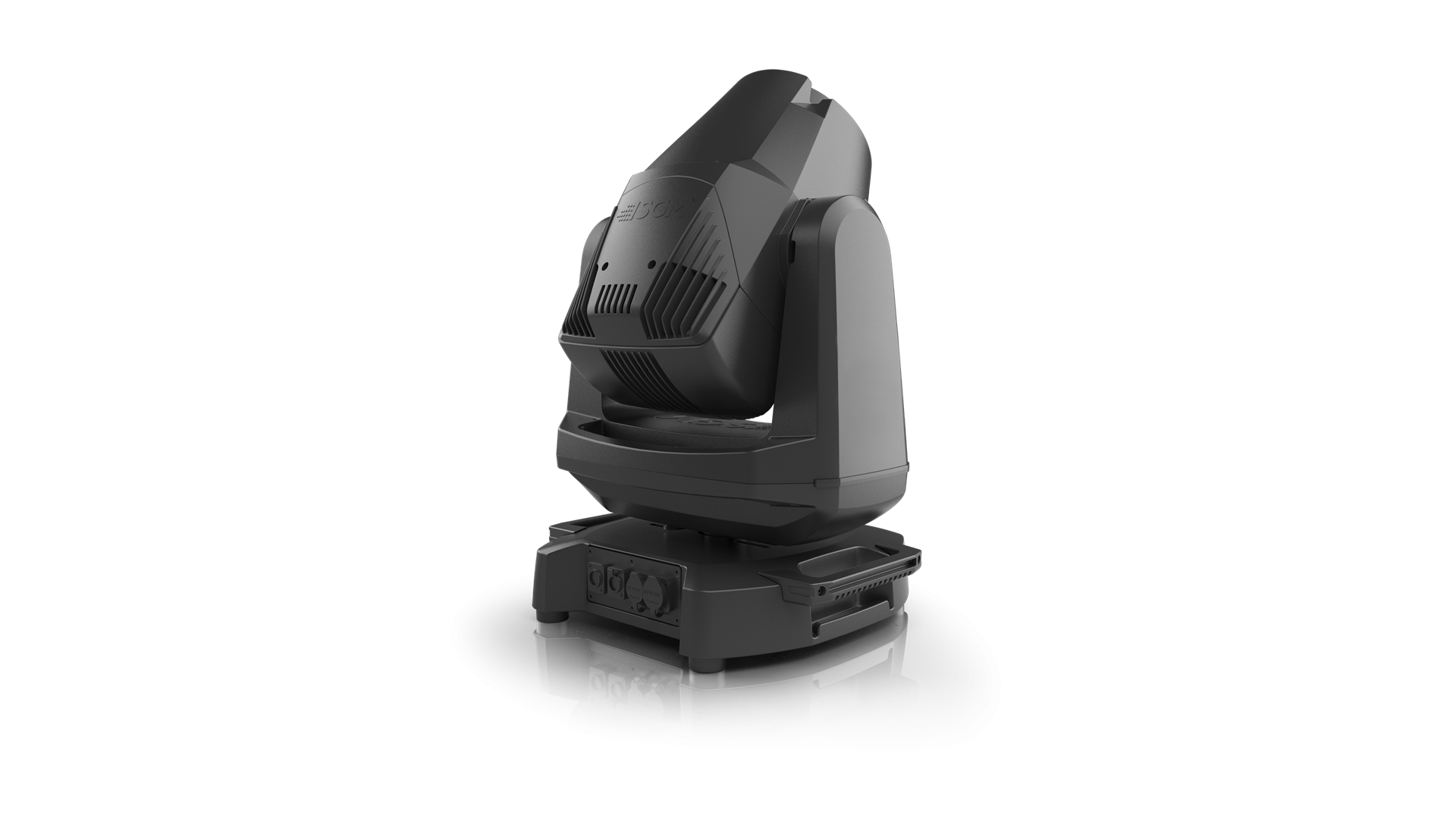

G-7 Spot

Lightweight & compact Spot moving head - IP66 rated - 350W White LED engine - CMY color mixing

More details

New

  • Black
  • White
  • Custom Custom

Availability: On Order

8 935,00 €

You will not be charged VAT with your selected delivery address.

- +

  • I I I I I

    Description

    G-7 Spot

    • 350W White led engine
    • CMY color mixing with dichroic RGB macros (+ optionnal filters and color wheel)
    • Color temperature of 6500K
    • Beam angle up to 36°
    • 6° to 48° zoom range
    • Ultra high-speed strobe
    • 6 rotatable gobos, 9 static gobos and 3-facet prism
    • Linear frost and smooth iris features
    • Fast tilt and pan
    • Wireless DMX and RDM
    • IP66
    • The SGM patented dehumidifier integrated
    • Lightweight and compact
    • Maintenance-free
    Introduction of the G-7 Spot

    LED Technology

    The G-7 Spot features a powerful 350W white LED engine with best-in-class optical performance. With the most efficient technology ever implemented in a white-source LED moving head, this is the perfect choice, if you are looking for an IP66-rated mid-size moving head spot. The LEDs expected lifetime is 20,000 hours.

    Colors

    The G-7 Spot is a CMY color-mixing moving head, designed to match the SGM RGB color palette. Its advanced dichroic color mixing system with RGB macros ensures a revolutionary way to mix colors. One extra wheel with 5 colors, CTB filter and a linear CTO are also available. This powerful spot has been developed with a big focus in chromatic performance.

    Optics

    One of the big secrets of the G-7 Spot can be found in its optics. The combination between lightsource and lenses creates a stunning light performance in the whole 6° to 48° zoom range; the largest in its category. The high-quality 115mm front lens ensures a large visual impact, while keeping a sharp beam of light. A High-CRI filter is included to achieve best results in camera.

    Photometrics

    With 16 000 lumen verified lumen in full white, the G-7 Spot is the brightest white-engine LED moving spot ever made in a compact and lightweight design. It outputs 593 lumen per kilogram, maintaining the native 6500K color temperature at a constant level over its entire lifetime. Because of the IP66-rating, the internal optics are always clean, resulting in maximum brightness from the light source at all times.

    Internal frost

    This fast and compact spot is, not only created for those who need a high output in white, but also for Lighting Designers with high quality standards. The G-7 Spot features a variable and exchangeable 0-100% frost effect with a soft diffusion.

    IP66

    The durable IP66-rating of the G-7 Spot ensures that the unit is kept free from externally induced particles and liquids, such as smoke fluid, dust, dirt, airborne pollution, and humidity. It is ideal for outdoor applications, while being practically maintenance-free makes it a sustainable and long-lasting choice for indoor events and installations as well.

    Mounting options

    The G-7 Spot can be rigged with the included easy-fit omega brackets with ¼ turn fasteners. 4 different positions are available in the base for the brackets. Handles can be found in the low part of the head to help users transport and mount the fixture. This powerful spot can be rigged in any position, and it includes a tilt lock for the yoke.


    About SGM

    THE SGM TECHNOLOGY

    IP Rating

    All SGM lights are protected by an IP rating of 65 or 66. The durable IP65-rating ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well. The IP-66 rating include the same protection, adding a protection against multi-directional, high-pressure water jets while the IP-65 is protected against low pressure.

    Dehumidification

    Every SGM light is equipped with an internal built-in dehumidifier protecting the fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks.

    SGM’s patented DEHUMIDIFIER, incorporated in the SGM product range, constantly removes trapped hydrogen from inside of the lighting fixture in a solid state electrolytic process with no moving parts. SGM’s DEHUMIDIFIER breaks down corrosive H2SO4 molecules, deriving from polluted air, and eliminates the effects hereof. Hereby, the unique process eliminates any risk of humidity, which would otherwise lead to condensation and corrosion.

    Thermal management

    To achieve optimum performance of the LEDs at all times, SGM lights are optimized to manage heat impact through SGM's unique thermal management technology.

    High power light-emitting diodes (LEDs) use up to 5,000 milliwatts or more in a single LED. However, most of the electricity in an LED turns into heat rather than light. In fact, about 70% becomes heat generation while only 30% becomes light. Therefore, in order to get more light from your LEDs, it is crucial to have efficient thermal management. The SGM technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. All SGM LED products consist of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters.

    ABOUT SGM LIGHT

    SGM company

    Originally founded in 1975, SGM brings more than 40 years of experience within the stage lighting business.

    In 2009, SGM decided to bring in industry pioneer Peter Johansen to head the new Research & Development center in Denmark, with the intention to transfer technology, previously only seen possible within stage lighting, into architectural lighting.

    With field expertise dating back to the invention of the smoke machine in the 70s, Peter Johansen, founder of Martin Professional, successfully established the company headquarters in Denmark in 2012, and followed by the introduction of an architectural division offering superior dynamic LED lighting, which comprises colors, strobe effects, pixel lights, positions, patterns, and gobos, in practically maintenance-fee fixtures.


    Related articles
    Come & see us at JTSE Paris 2018!

    Come & see us at JTSE Paris 2018!

    2018-10-22

    The 27th & 28th of November, we will be happy to meet you on booth 158 during 2 days of the JTSE exhibition.


    Specifications
    Optical
    Source lumineuse350W White LED
    Zoom6° to 48°
    Beam angle(s)36°
    FocusMotorized focus
    FrostVariable 0-100%
    Prism3-facet rotatable and indexable prism
    Photometric
    Total output16 000 lumens
    Efficacity35.8 lm/W
    Colour temperature range6500K
    Fixture features
    Pan640°
    Tilt250°
    DimmingElectronic
    Iris1-100%, Pulse effects
    CTBLinear
    CTOLinear
    StrobeUltra-high-speed strobe effect (1-50Hz)
    Gobo wheels6 rotatable, indexable, and interchangeable gobos + 9 static gobos + open
    Effect wheelsFX area integrated on color wheel
    Colour wheel5 colors + open
    DehumidifierBase / Head
    Physical characteristics
    Height387 mm
    Width622 mm
    Depth370 mm
    Weight27 kg
    IP classIP66
    MaterialAluminium, PC/ASA, Caoutchouc et Acier
    Environment
    Temperature range, Operating−40° to +50°C
    Temperature range, Start-up−20° to +50°C
    Temperature range, Storage−40° to +80°C
    CoolingActive, forced air, temperature-regulated, low noise
    Max. humidity98%
    Approvals
    2014/30/EU: EMC DirectiveEN 55103-2 EN 55015 EN 61547 EN 61000-3-2 EN 61000-3-3 EN 55032
    2014/35/EU: Low Voltage DirectiveEN 60598-1, EN 60598-2-17, EN 62471, EN 60529
    RoHS2 Directive2011/65/EU
    Power characteristics
    Consumption445W
    Standby power65 W
    Mounting pointsFour times two quarter-turn locking points
    OrientationAny
    Minimum distance to combustible materials0.3 metre
    DMX channels21
    16-bit controlDimmer, pan/tilt, gobo rotation/index
    Cabled DMX5-pin XLR input and output
    Wireless DMXLumenRadio with RDM
