G-Spot

Moving Head Spot with RGBY 850W LED lightsource - IP65

More details

New

  • Black
  • White
  • Custom Custom

Availability: On Order

12 220,00 €

You will not be charged VAT with your selected delivery address.

- +

  • I I I I I

    Description

    G-Spot

    • High-power 850 W RGB LED light source
    • High output of 15327 lumen
    • 2 rotatory gobo wheels, FX wheel, 4-facet prism
    • 8° to 43° zoom range
    • Flicker-free
    • Programmable scenes
    • Ultra-high-speed strobe
    • Winner of the PLASA Award for Innovation
    • 2000K - 10000K CTC control
    • Linear frost and smooth iris feature
    • DMX, RDM and wireless control
    • IP65
    • Integrated patented dehumidifier / unique technologie
    • Silent operation
    • Maintenance-free
    Introduction of G-Spot

    LED Technology

    This tough and reliable LED luminaire includes a powerful 750W RGB LED engine capable of deep saturates and smooth color transitions. Because of its impressive blue and red output, the G-Spot is able to generate color palettes with warm pale hues and bright cold tones, but also outstanding magentas and cyans. LEDs expected lifetime is 50,000 hours.

    Colors

    The G-Spot is one of the brightest and most accurate luminaires ever made in terms of color output. It was designed to match all the colors present in the SGM range, but also to impact the audience with a calibrated white available in all color temperatures from 2000K - 10000K. When it comes to solid colors, the G-Spot outperforms any discharge lamp with CMY color mixing, no matter the wattage.

    Optics

    With an 8° to 43° zoom range, plus an additional pseudo zoom down to 1º, the G-Spot is ready for any stage or event. Being water, dirt and sand proof, the internal optics are always clean to get the maximum brightness from the light source. Worst case scenario, the front lens must merely be wiped off, which is a huge time and cost saver effectively eliminating the need for cleaning and maintenance.

    Photometrics

    The G-Spot delivers a staggering lumen output not only in white but also in color. It is able to achieve 4663 lumen in red, 3571 lumen in green and 1446 lumen in blue. These high values convert the G-Spot into the perfect companion not only in medium-sized venues but also in large-scale tours with high audience numbers.

    Sharp gobo projection

    One of the big benefits of the G-Spot is its sharp and detailed gobo projection, with no color aberration in the borders or hotspots in the centre of the beam. The G-Spot uses glass gobos not affected by the heat, so the pattern is always fully focused. Since RGB colors in the G-Spot are bright and contrasted, it is possible for the user to combine them with the gobos without losing much output.

    Gobo wheel 1 G-Spot Gobo Wheel #1
    Gobo Wheel 2 G-Spot Gobo Wheel #2
    Effect wheel G-Spot FX Wheel

    IP rating

    The durable IP65-rating of the G-Spot luminaire ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well.

    Mounting options

    The G-Spot can be rigged with the included easy-fit omega brackets with ¼ turn fasteners, using two of the four locking points. Installation time can be saved onsite as the fixtures can be pre-rigged to HUD truss making the rig fly-ready when reaching the venue. Handles can be found in the base as well to help users mount the fixture.

    Optional Framing module

    By replacing the supplied G-Spot module with an optional G-Profile module, it is possible to expand the capabilities of the G-Spot by adding a framing system with 4 blades and +/- 45º rotation. After the change, the unit only needs a firmware update to transform it into a G-Profile.


    Video

    Rugby World Cup 2015 - O2 Arena London


    About SGM

    THE SGM TECHNOLOGY

    IP Rating

    All SGM lights are protected by an IP rating of 65 or 66. The durable IP65-rating ensures that the fixture is kept free of externally induced particles and liquids on internal optics and light sources, such as smoke fluid, dust, dirt, airborne pollution, and humidity. Thereby, the need to clean optics or gobos is eliminated and no internal corrosion will occur. It is ideal for outdoor applications, while being practically maintenance-free making it a sustainable and long-lasting choice for indoor events and installations as well. The IP-66 rating include the same protection, adding a protection against multi-directional, high-pressure water jets while the IP-65 is protected against low pressure.

    Dehumidification

    Every SGM light is equipped with an internal built-in dehumidifier protecting the fixture from moisture, pollution and any other factors that can generate corrosion. The patented SGM dehumidification not only removes humidity but also prevents oxidation and condensation, while a gore-tex membrane equalizes internal pressure to prevent leaks.

    SGM’s patented DEHUMIDIFIER, incorporated in the SGM product range, constantly removes trapped hydrogen from inside of the lighting fixture in a solid state electrolytic process with no moving parts. SGM’s DEHUMIDIFIER breaks down corrosive H2SO4 molecules, deriving from polluted air, and eliminates the effects hereof. Hereby, the unique process eliminates any risk of humidity, which would otherwise lead to condensation and corrosion.

    Thermal management

    To achieve optimum performance of the LEDs at all times, SGM lights are optimized to manage heat impact through SGM's unique thermal management technology.

    High power light-emitting diodes (LEDs) use up to 5,000 milliwatts or more in a single LED. However, most of the electricity in an LED turns into heat rather than light. In fact, about 70% becomes heat generation while only 30% becomes light. Therefore, in order to get more light from your LEDs, it is crucial to have efficient thermal management. The SGM technology consists of a uniquely designed body and heat sink, which ensures optimal cooling of the LED chips. All SGM LED products consist of SGM's superior thermal management technology and tested under extreme hot and cold conditions, which ensures that the LEDs always operate within safe parameters.

    ABOUT SGM LIGHT

    SGM company

    Originally founded in 1975, SGM brings more than 40 years of experience within the stage lighting business.

    In 2009, SGM decided to bring in industry pioneer Peter Johansen to head the new Research & Development center in Denmark, with the intention to transfer technology, previously only seen possible within stage lighting, into architectural lighting.

    With field expertise dating back to the invention of the smoke machine in the 70s, Peter Johansen, founder of Martin Professional, successfully established the company headquarters in Denmark in 2012, and followed by the introduction of an architectural division offering superior dynamic LED lighting, which comprises colors, strobe effects, pixel lights, positions, patterns, and gobos, in practically maintenance-fee fixtures.


    Related articles
    Novelty Group takes SGM to Solidays Festival

    Novelty Group takes SGM to Solidays Festival

    2016-08-11

    For the 2016 edition of the Solidays festival, Novelty groups chose SGM fixtures to light up the new Arena Club stage.

    In Paris City Hall, the G-Spots animate the ice rink

    In Paris City Hall, the G-Spots animate the ice rink

    2015-02-12

    This year, Novelty Group, has chosen to animate the ice rink with the SGM G-Spots


    Specifications
    Optical
    Source lumineuseHigh-Power RBGY LED
    Zoom8° to 43° + pseudo zoom 1° to 43°
    FrostVariable 0-100%
    Prism4-facet rotating prism
    Photometric
    Total output12 000 lm (all LEDs on) - 3000 lm (red) - 3100 lm (green) - 1400 lm (blue)
    Efficacity12 lm/W
    Colour temperature range2000K - 10000K
    Fixture features
    Pan540°
    Tilt270°
    DimmingElectronic
    Iris1-100%, Pulse effects
    CTBLinear
    CTOLinear
    StrobeUltra-high-speed strobe effect (1-50Hz)
    Gobo wheels2 independent rotatable gobo wheels of 5 indexable gobos + open each
    Effect wheels2 independent effect wheels with semi-continuous effect
    Control & Program
    ProtocolUSITT DMX512A

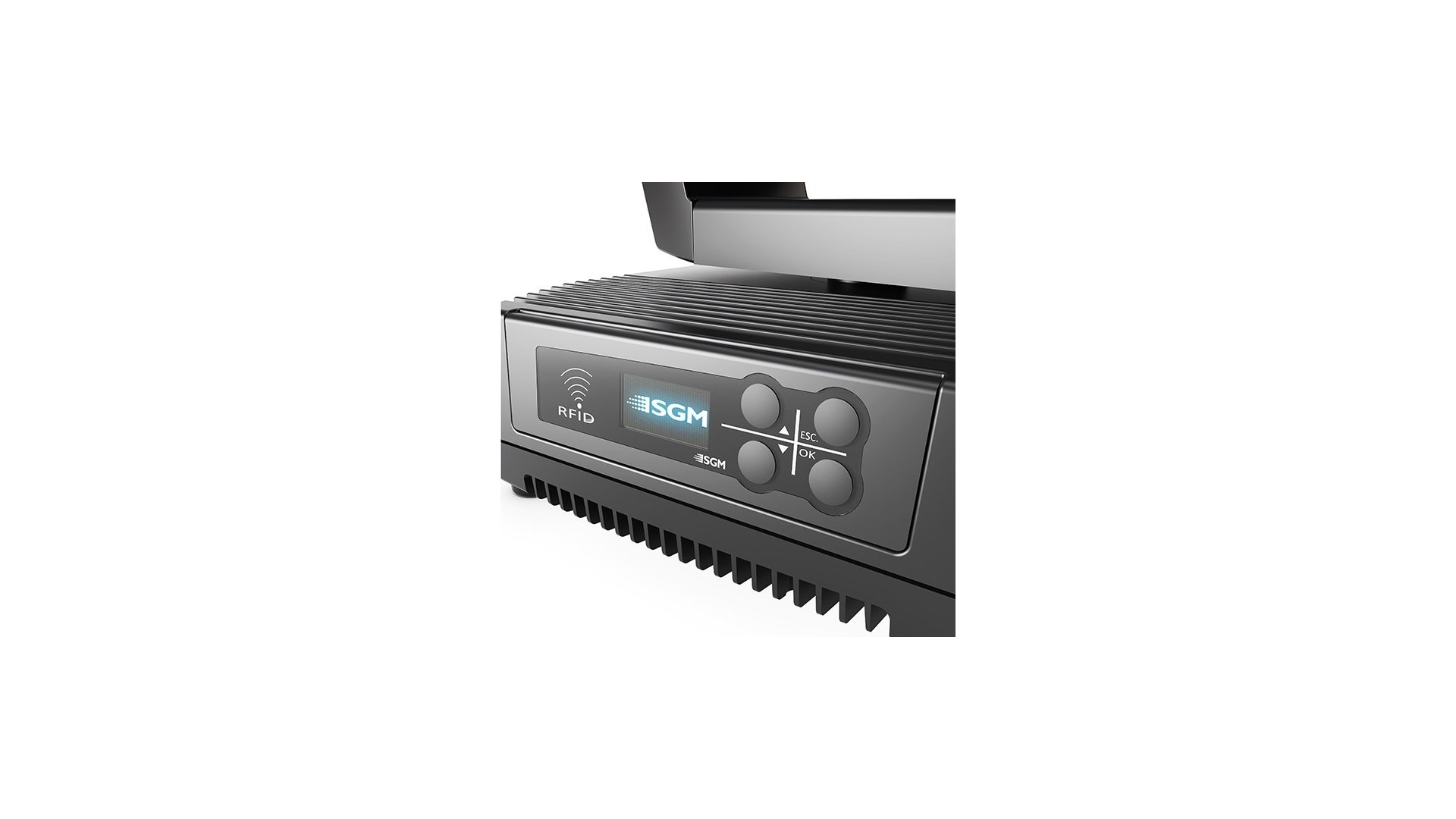

    Setting and addressingControl panel, RDM or RFID
    DMX channels24 / 30
    16-bit controlDimmer, colors, pan/tilt, gobo index/rotation, zoom, focus
    Wireless DMXLumenRadio with RDM
    Standalone modeUp to 24 programmable scenes
    Connectivity
    Data (DMX)IP65 Neutrik HD locking XLR 5-pin cable, 0.2m
    Power
    Power supply unitAuto-ranging electronic switch-mode
    Consumption1100W
    Standby power75W
    AC Power, nominal200 - 240VAC 50/60 Hz
    AC Power, max. rating190 - 264VAC 50/60 Hz
    FuseT12A-250V
    DC PowerNeutrik powerCON TRUE1
    Physical characteristics
    Height805 mm
    Width470 mm
    Depth492 mm
    Weight52 kg
    IP classIP65
    MaterialAluminium, Steel, Plastic PA6.6
    Environment
    Temperature range, Operating−40° to +50°C
    Temperature range, Start-up−20° to +50°C
    Temperature range, Storage−40° to +80°C
    CoolingActive
    Max. humidity98%
    Approvals
    2014/30/EU: EMC DirectiveEN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
    2014/35/EU: Low Voltage DirectiveEN 60598-1, EN 60598-2-17, EN 62471, EN 60529
    RoHS2 Directive2011/65/EU
    CSAE60598-1, Ed:2 - E598-2-17-98, Ed: 1
    ULStandard 1573
    Additional information
    Included itemsTwo Omega brackets with 1/4-turn fasteners - 2 metres Power Cable with Neutrik TRUE1 powerCON - User manual
    Gobos
    Glass goboBorosilicate high-temperature glass
    Maximum thickness1.1 mm black & white or 3.5 mm colored glass or textured gobos
    Outside diameter37.5 mm (Standard E size gobo)
    Maximum image diameter30 mm
    Metal goboNot recommended
    Mounting pointsFour times two quarter-turn locking points
    OrientationAny
    Safety featuresFour times two quarter-turn locking points
    Minimum distance to combustible materials0.3 metre
    Minimum distance to illuminated surfaces0.3 metre

    Download(s)
    pdf

    G-Spot & G-Profile - DoC- 475.5 Kb

    EU Declaration of Conformity


    exe

    SGM - Firmware Uploader Tool- 1.9 Mb

    Version 1.21.0 - Use this software to upgrade the firmware on SGM fixtures
