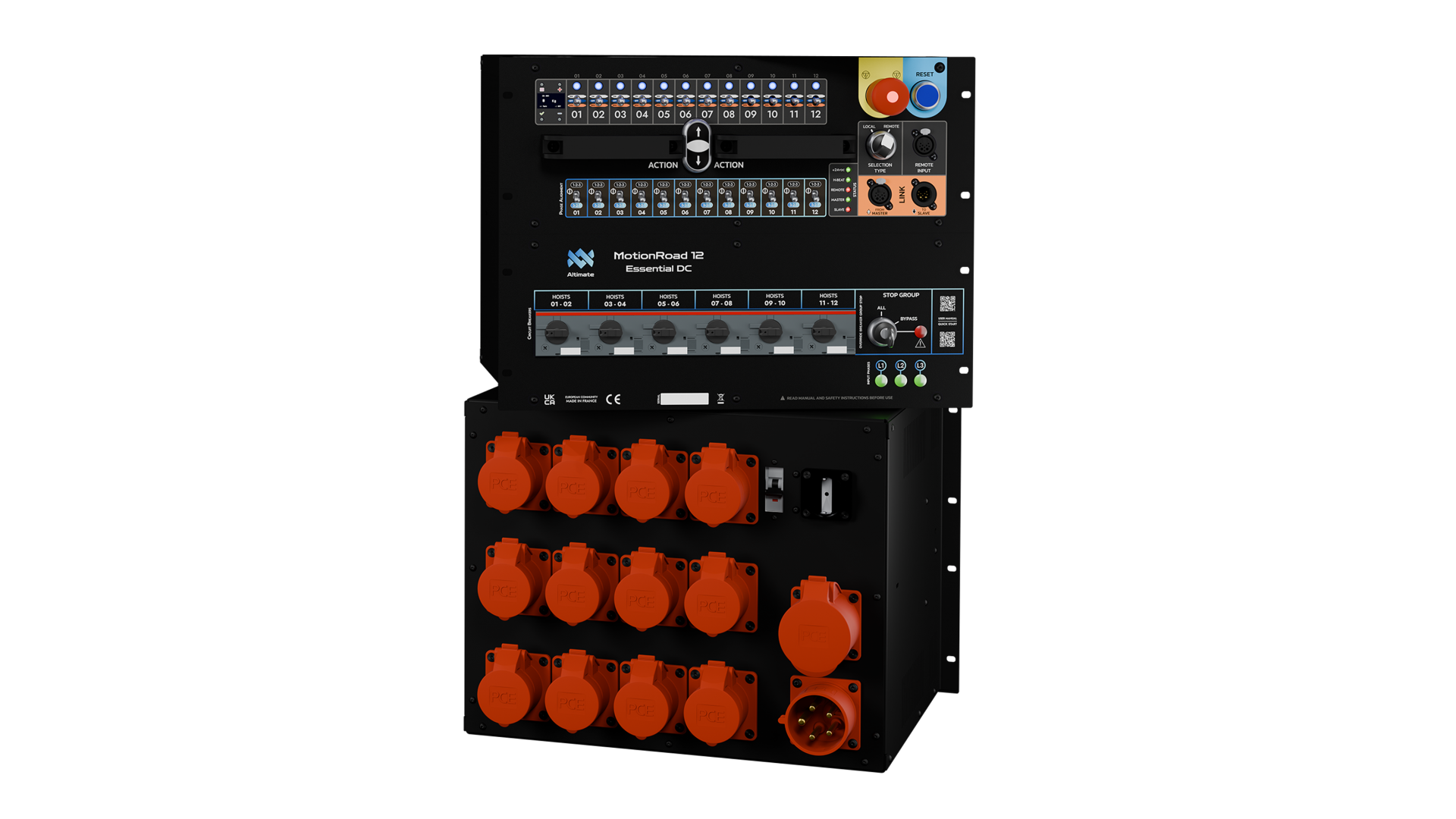

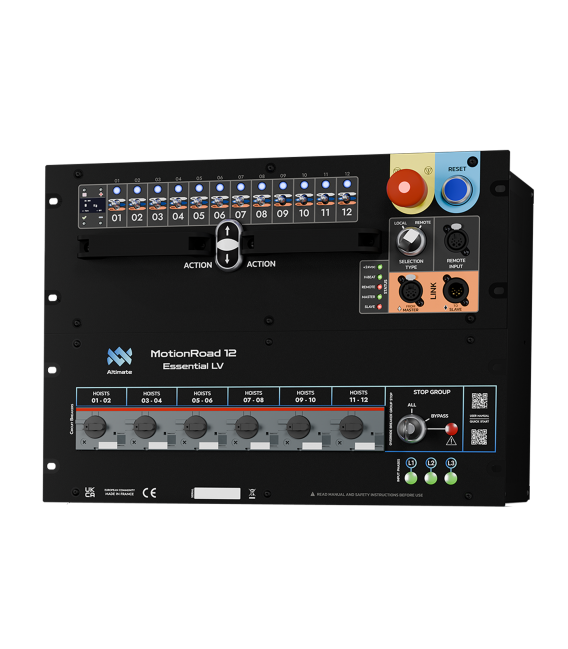

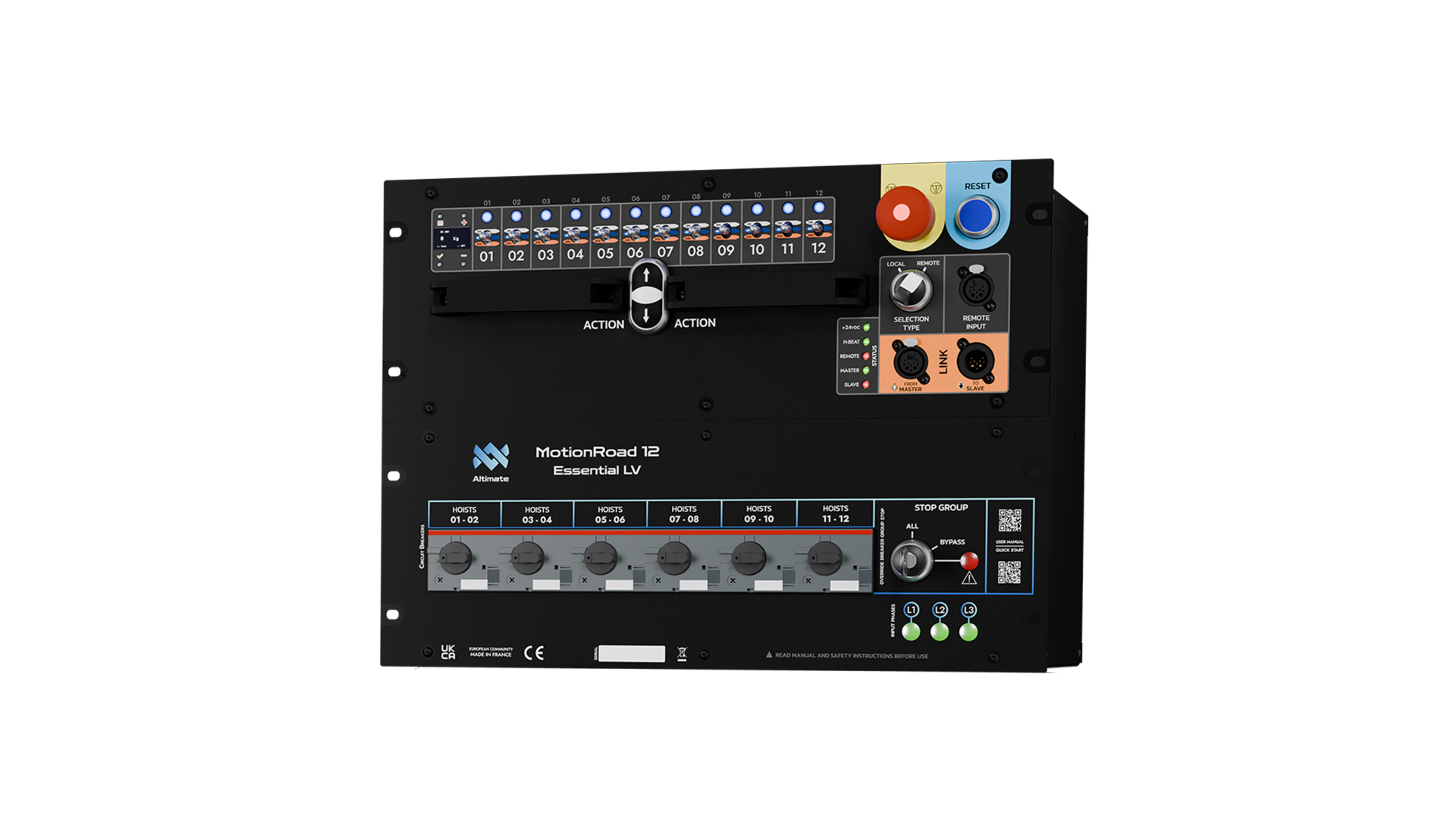

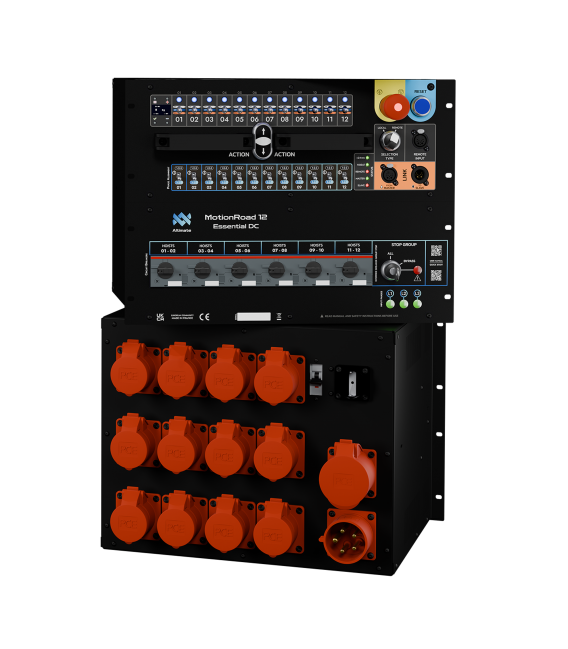

Motion Road Essential

• Available in direct control or low-voltage versions.
• Individual or group control of 12 electric chain hoists or lifting units such as winches.
• The controllers can be connected to our digital link system for a master-slave connection with up to 128 simultaneous channels.
• Thermal-magnetic circuit breakers to protect hoists against overvoltages and short circuits.
• Group shutdown in the event of a circuit breaker tripping on the controller or associated system, with a bypass function.
• The reset button performs internal checks and ensures that the operator has been informed of the emergency stop before the system can be used again.
• 32A power supply with output for daisy-chaining multiple controllers
• Automatic phase alignment of the input power supply and individual phase alignment at the output for the direct voltage version and grouped for the low voltage version.
• On choice of CEE, Harting, or Socapex direct voltage outputs and low voltage outputs.
• 19" Rack Version
• One 230V auxiliary output for any device (laptop, phone, etc.)

Numerous options available:

• Intelligent group memory concept with simple channel and storage selection (via MotionPad)
• Load monitoring system fully integrated into the control solution
• Wide selection of input and output connectors to adapt the system to your specific needs or local requirements
• 63 or 125A available upon request.
