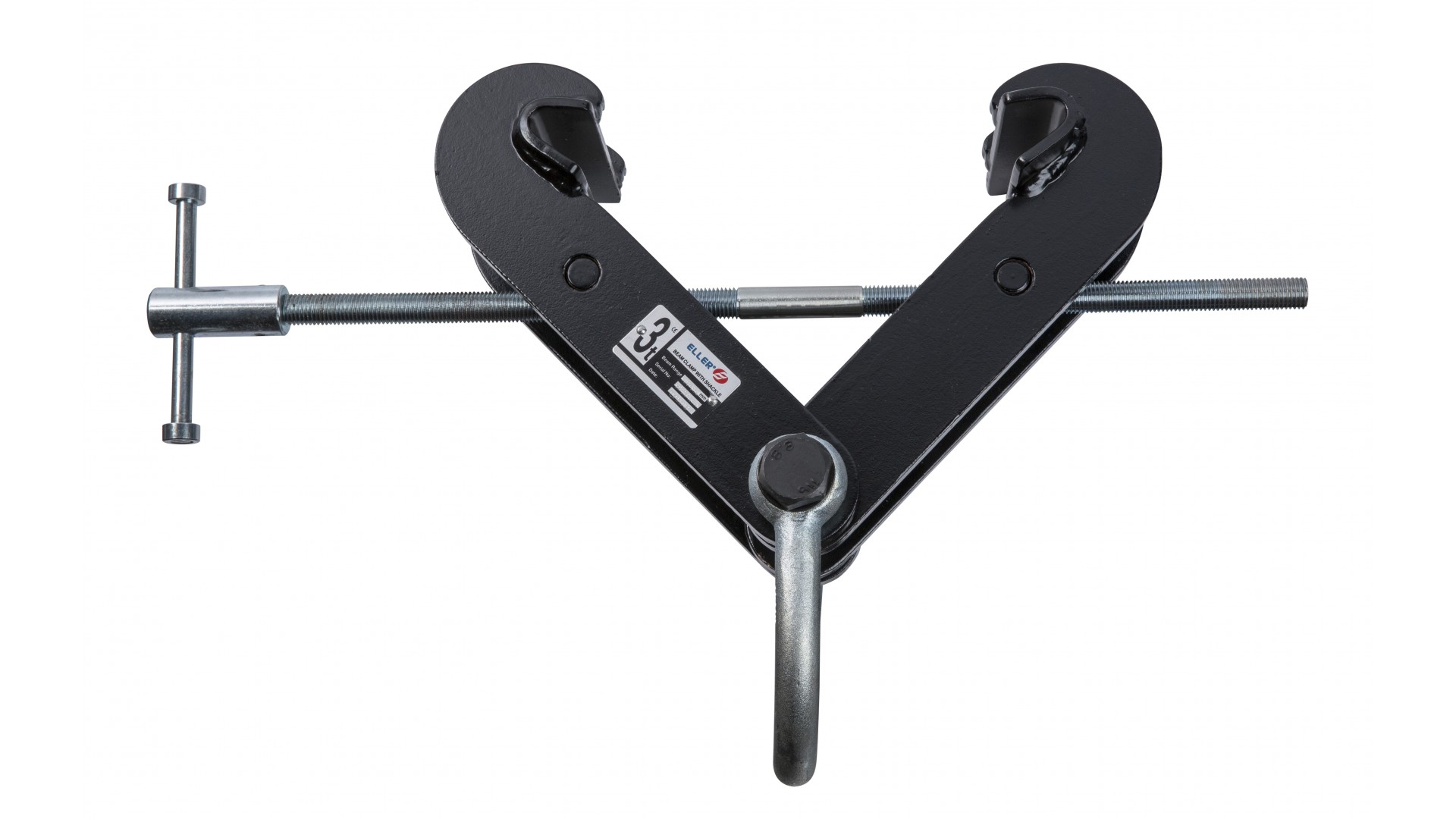

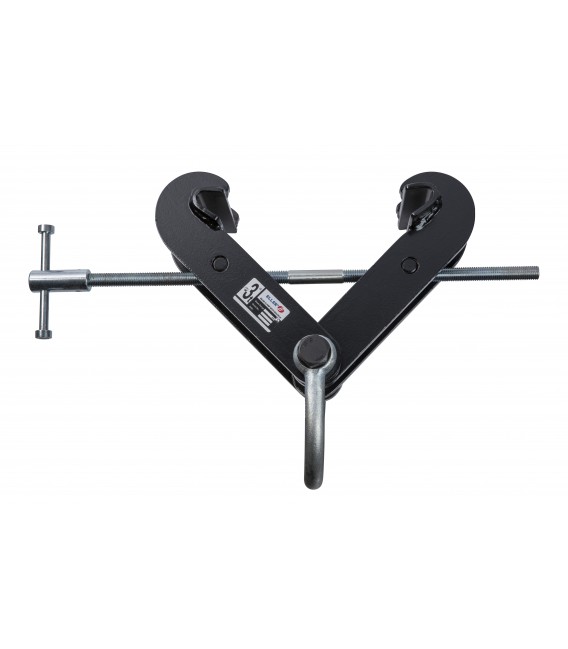

Black Beam Clamp with Shackle

IPN beam clamp with shackle allowing an oblique traction to 45°

More details

New

Availability: On Order

150,00 €VAT ex.

180,00 €VAT incl.

- +

  • I I I I I

    Description

    The ELLER® Beam Clamp is a simple and safe temporary anchor point. Ideal for quick attachment of loads using threaded spindle. The clamp can be installed within a few simple steps. Just twist and open the spindle, place over the flange and close tightly.

    Main features :

    • Robust construction, frame is made from solid steel plate and a galvanized spindle
    • Low head room, wide flange width adjustment range, therefore ideal in many situations
    • Loads up to 45°
    • Also available for wide flange beam size (L Versions)

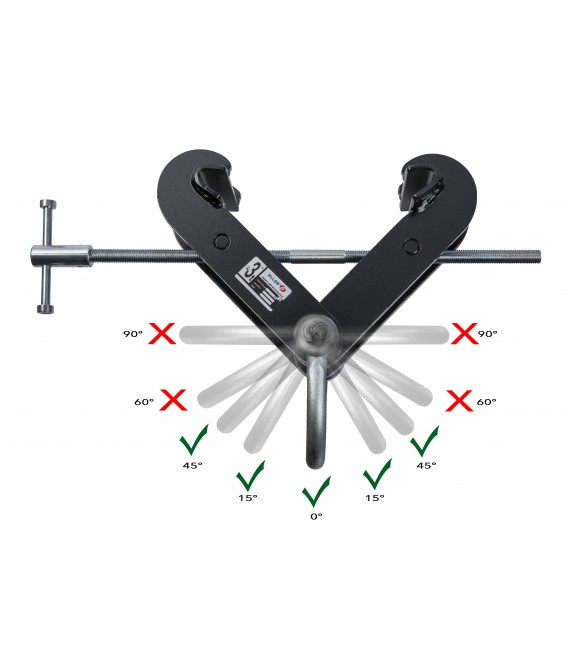

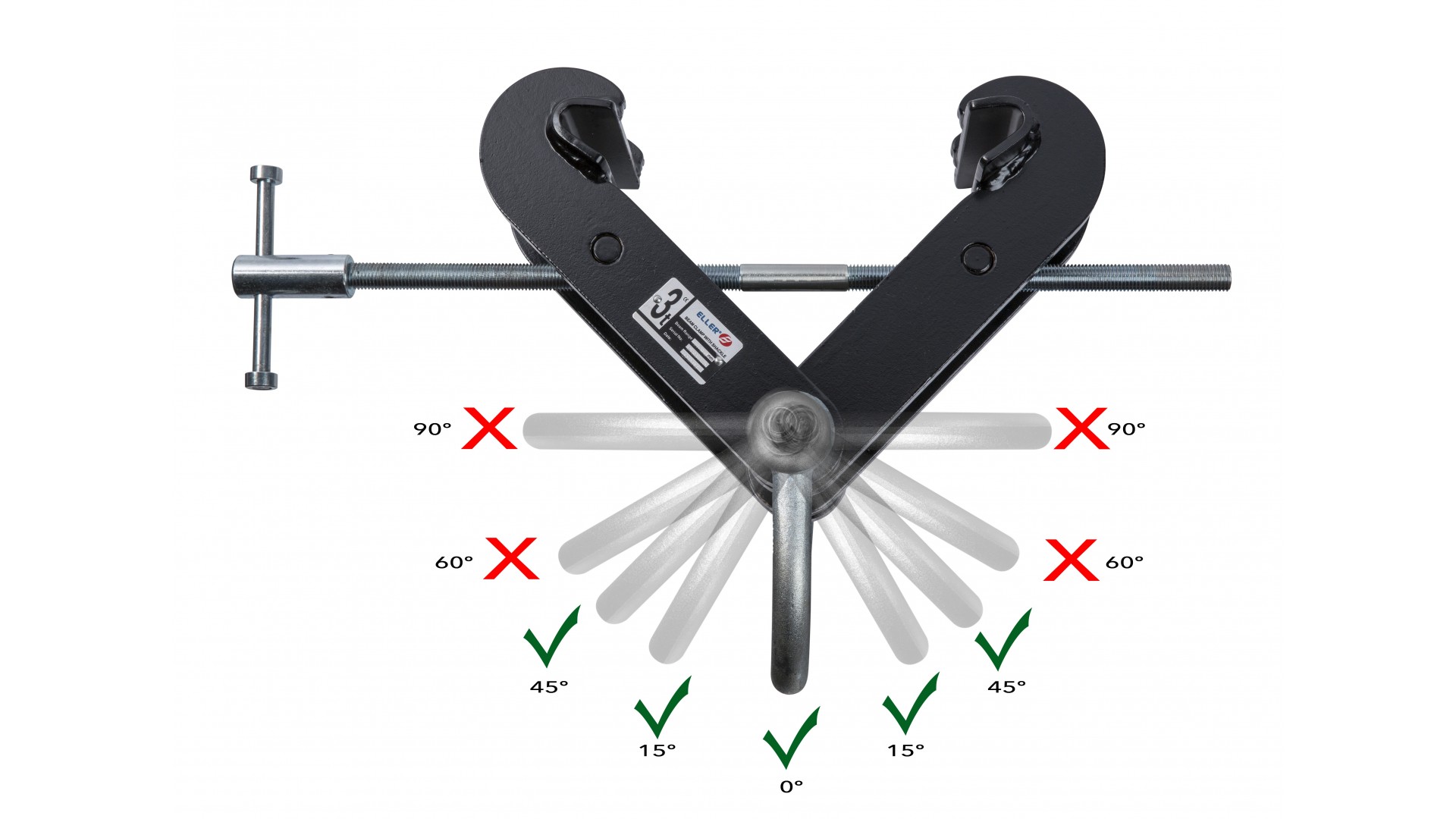

    Features for each angle :

    Vertical angle (°)


    0° à 15°
    0° to 15°

    15° à 30°
    15° to 30°

    30° à 45°
    30° to 45°

    Reduction factor (%)/17%34%50%
    ACLGRIF2T-MAN2TNot appropriateNot appropriateNot appropriate
    ACLGRIF3T-MAN3T2.5T2T1.5T
    ACLGRIF5T-MAN5T4.1T3.3T2.5T
    ACLGRIF10T-MAN10T8.3T6.6T5T
    ACLGRIF15T-MAN15T12.4T10T7.5T

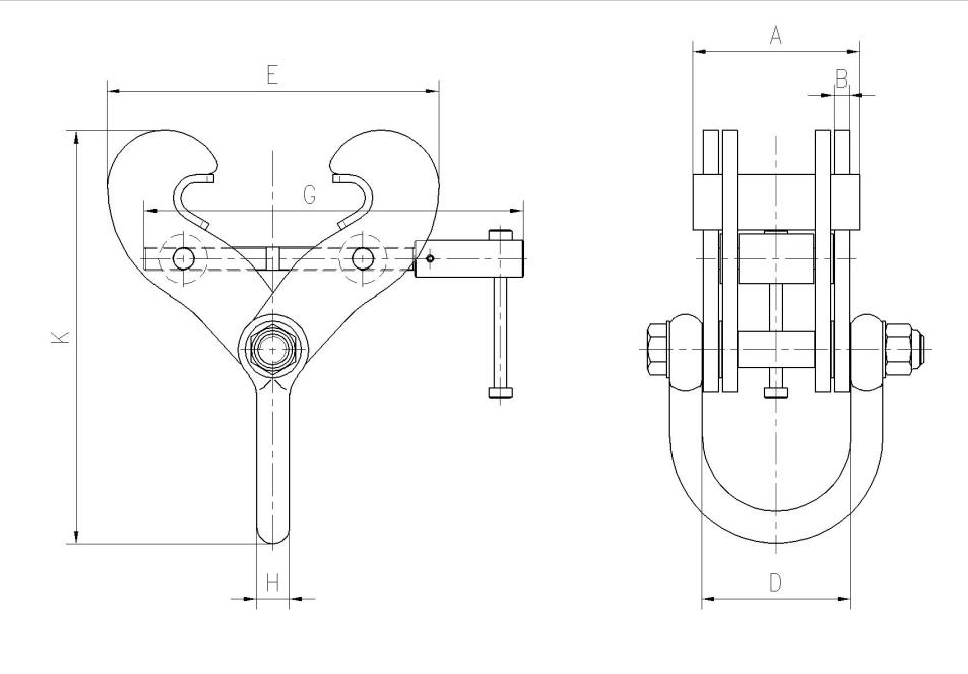

    Dimensions

    Dimensions

    ACLGRIF5T-MAN5150-305130121164222644104133602515

    Article code

    WLL (t)

    Beam width (mm)

    A
    (mm)

    B
    (mm)

    D
    (mm)

    Emax
    (mm)

    Emin
    (mm)

    G
    (mm)

    Kmax
    (mm)

    Kmin
    (mm)

    H
    (mm)

    Weight (kg)
    ACLGRIF2T-MAN276-190130490254133275263223204
    ACLGRIF3T-MAN376-19013012102275166275289251208
    ACLGRIF3T-MAN-L3127-350130121024382285603752942011.5
    ACLGRIF10T-MAN10203-457140201186082675605304213228
    ACLGRIF15T-MAN15203-45717020116.56484006606846084049.5
    ACLGRIF15T-MAN-L15406-61017020116.58006008108127064058.5
