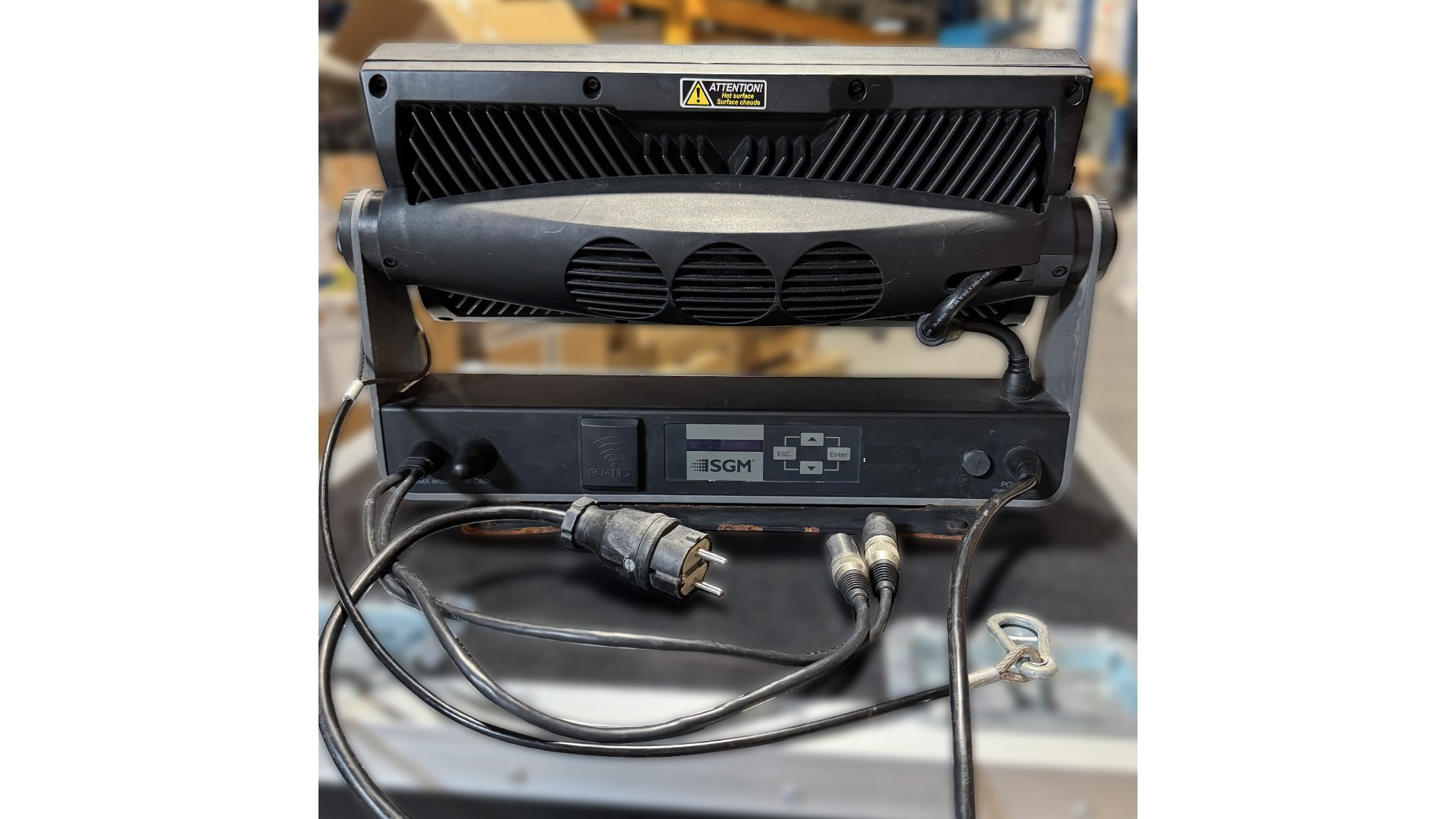

SGM - P-5 - RGBW Wash Light, IP65 - 15/21/43°
SGM - P-5 - RGBW Wash Light, IP65 - 15/21/43°
SGM - P-5 - RGBW Wash Light, IP65 - 15/21/43°
SGM - P-5 - RGBW Wash Light, IP65 - 15/21/43°
SGM - P-5 - RGBW Wash Light, IP65 - 15/21/43°
SGM - P-5 - RGBW Wash Light, IP65 - 15/21/43°
Clearance

SGM

SGM

P-5

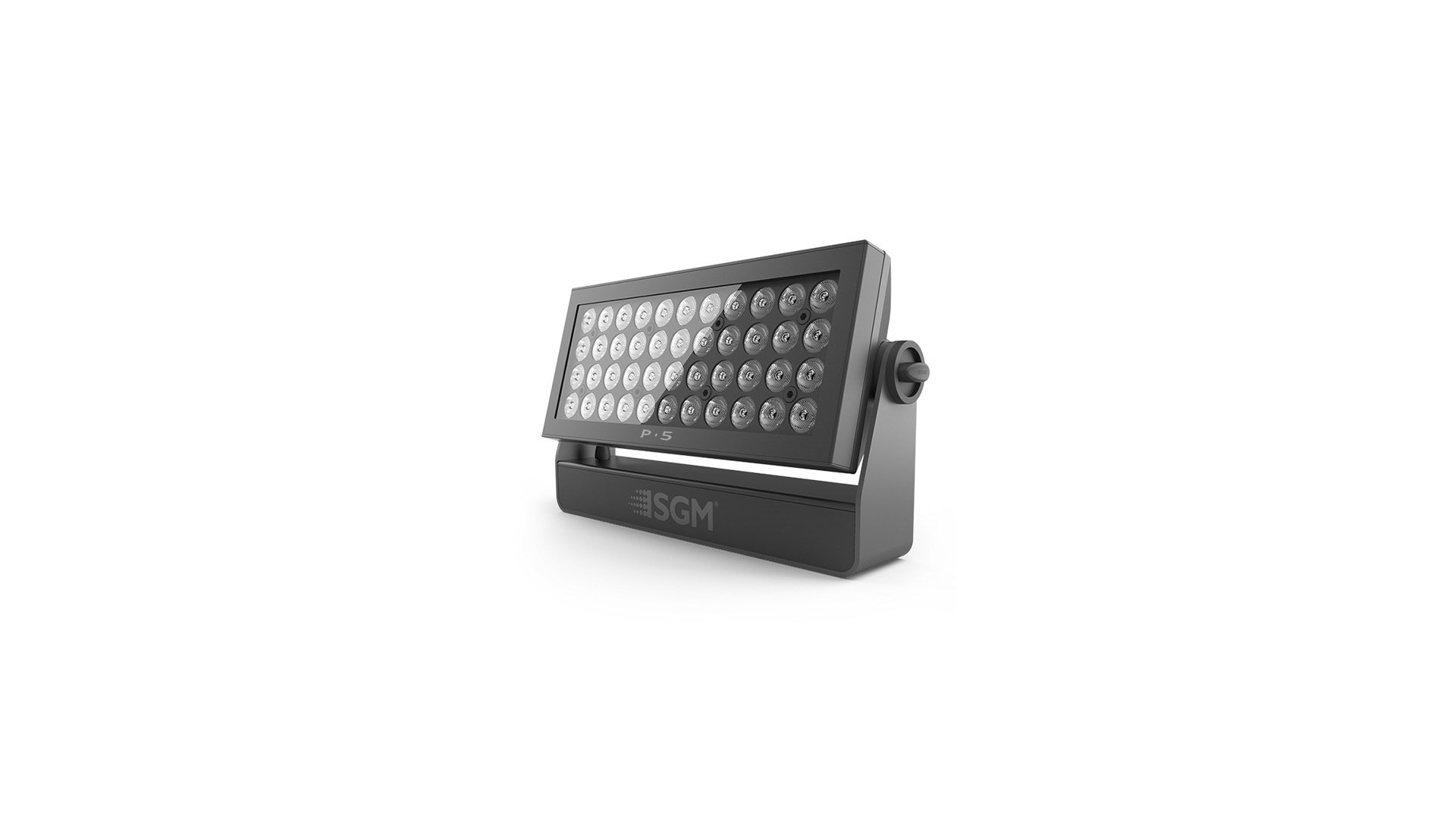

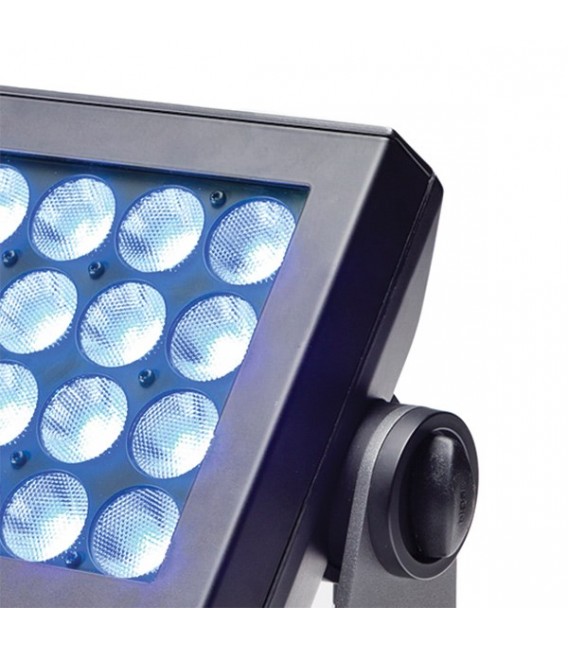

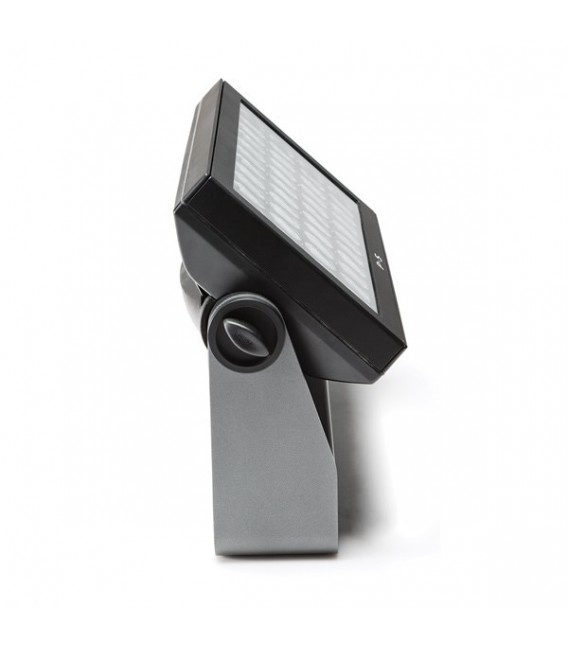

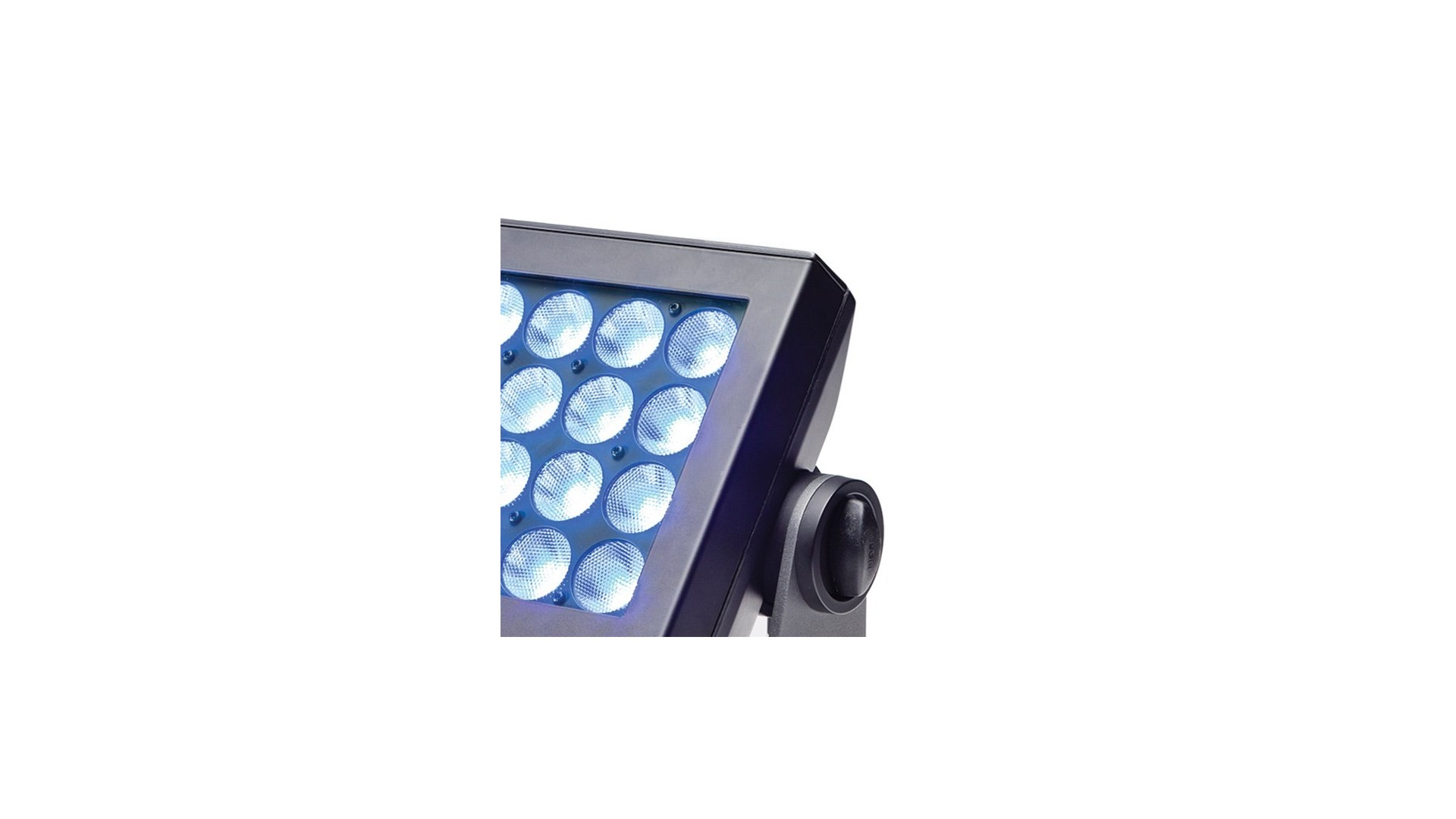

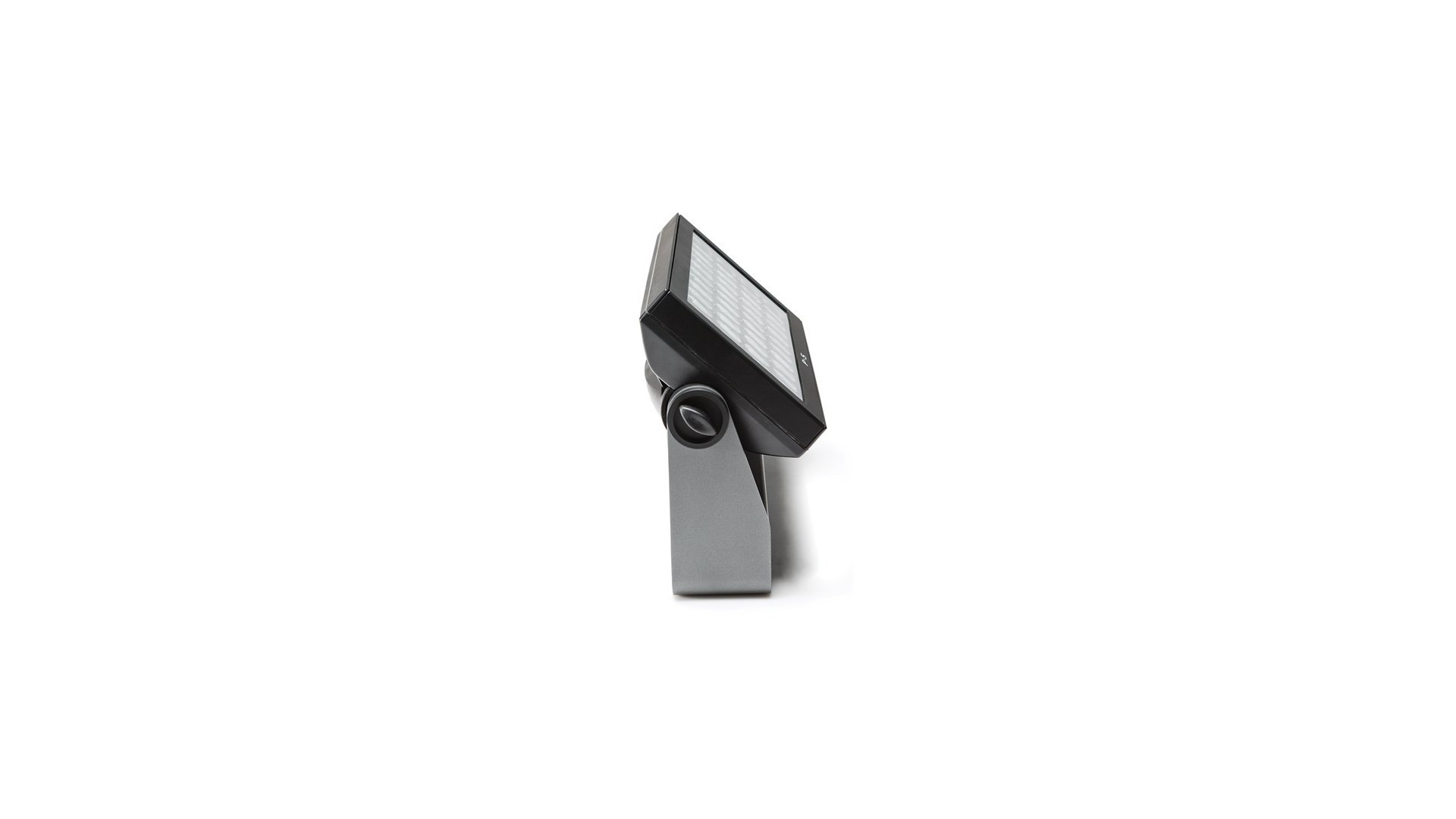

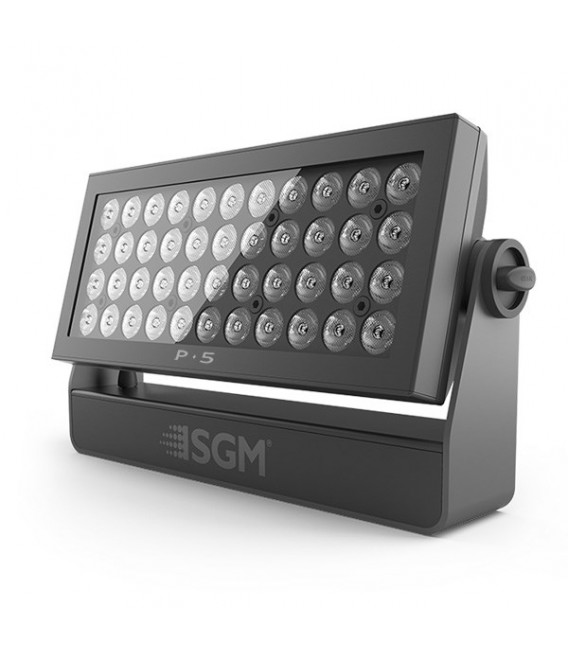

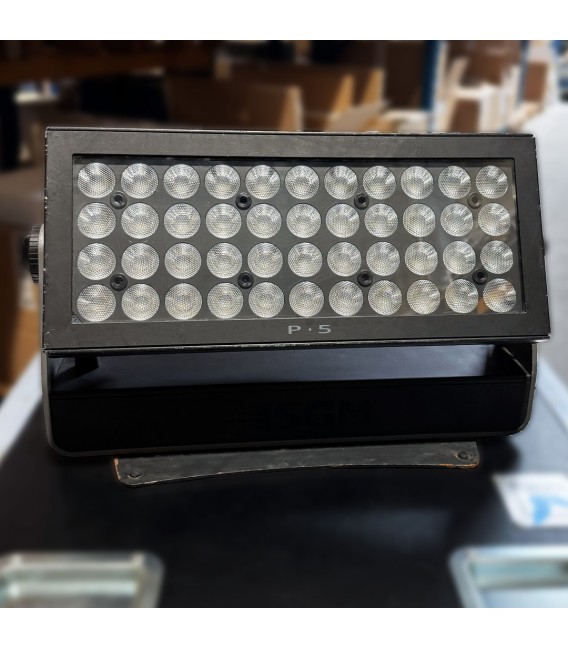

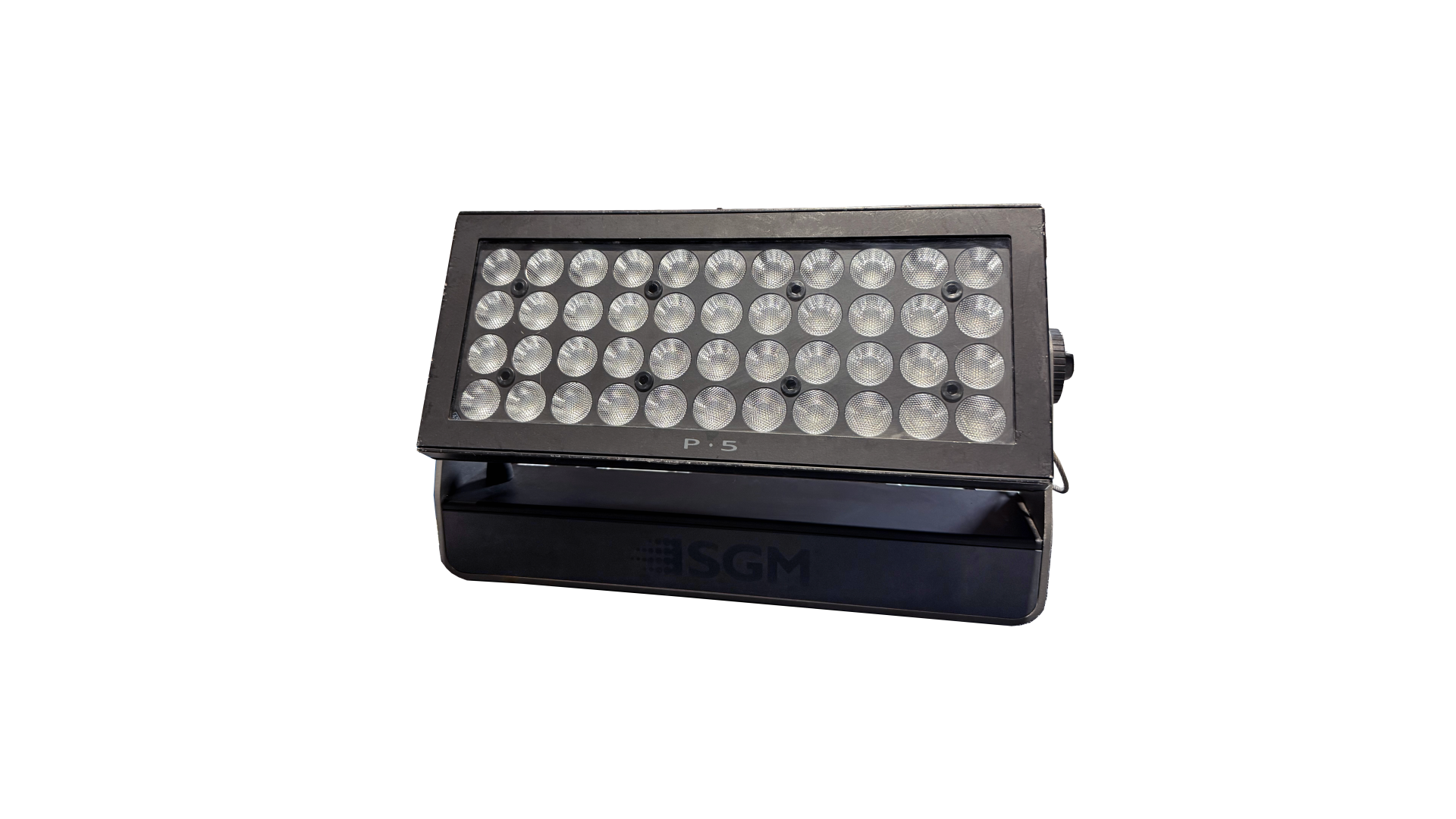

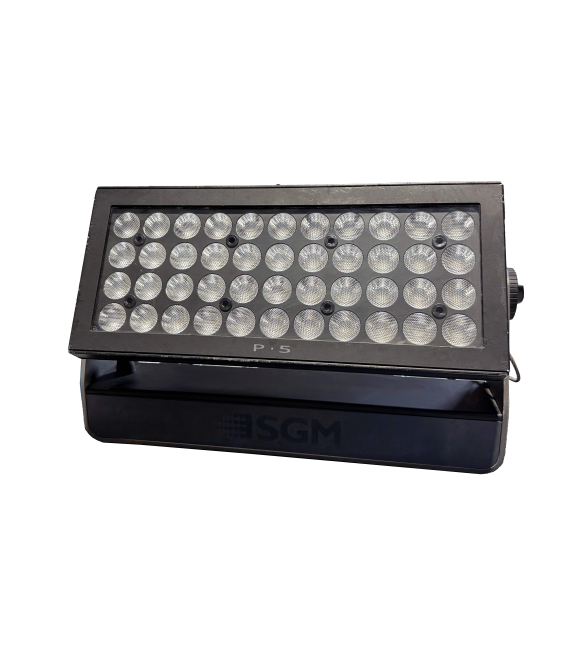

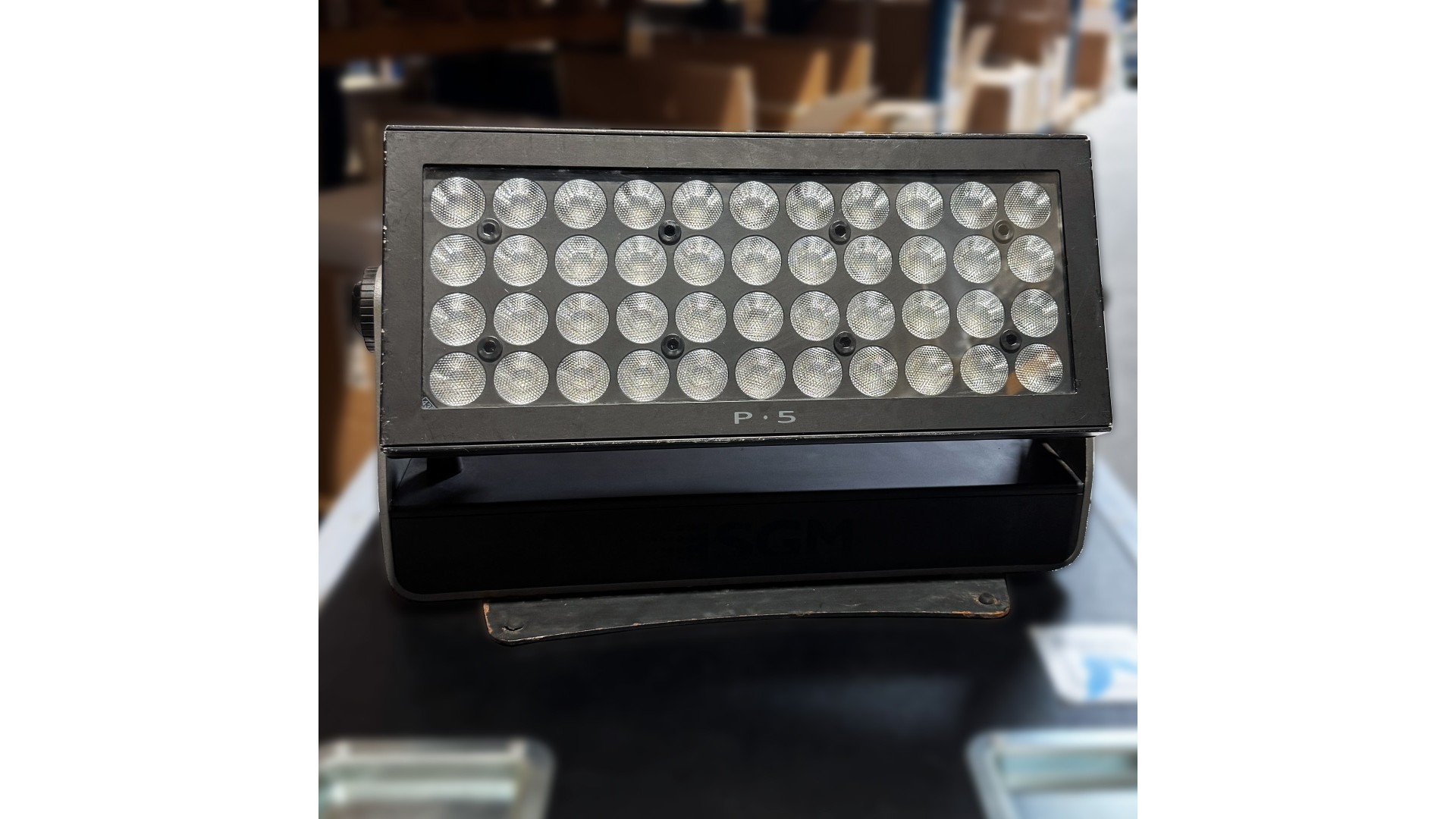

Wash Light with 44 RGBW LEDs of 10W - IP65 - Compact and lightweight.

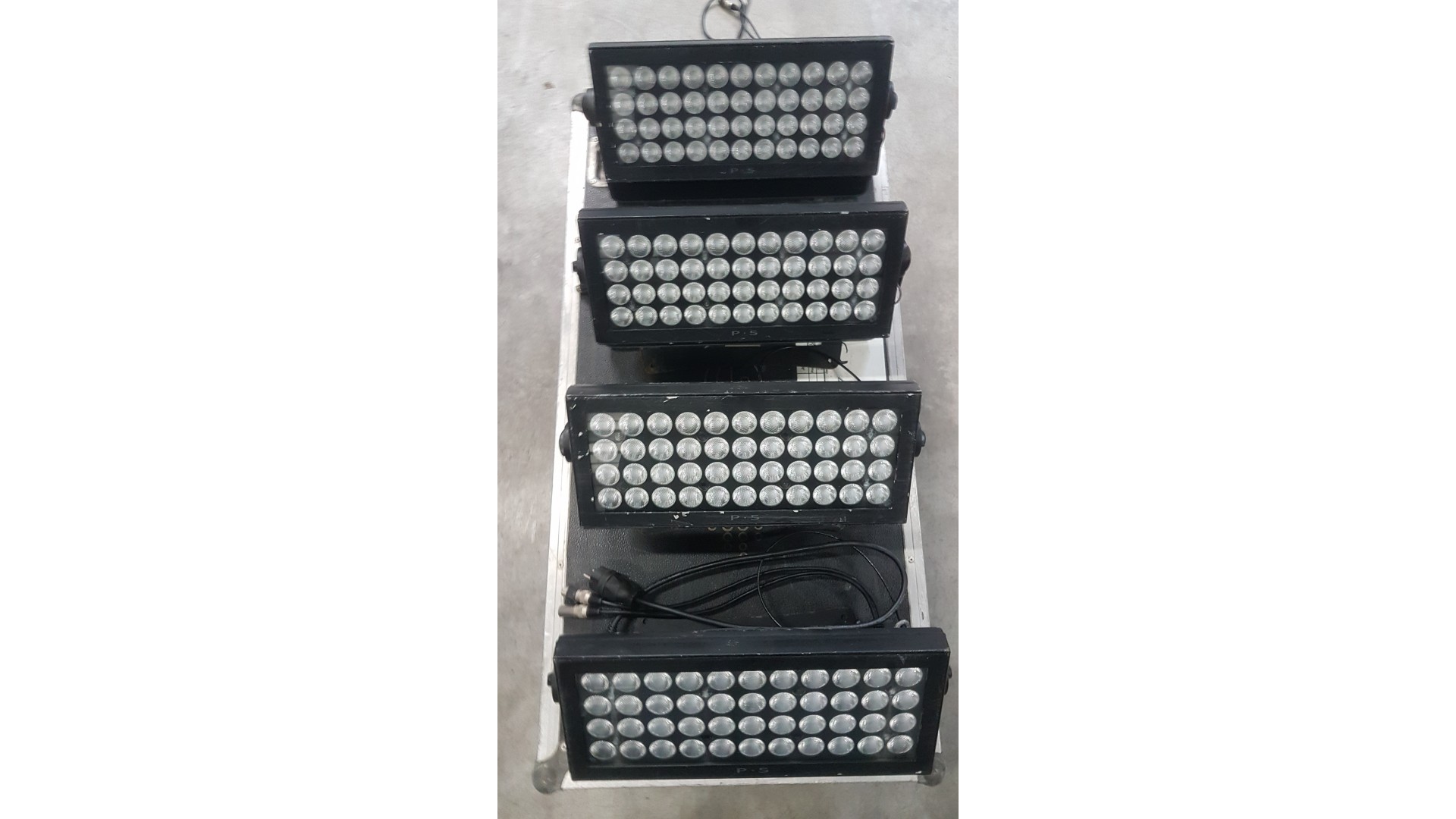

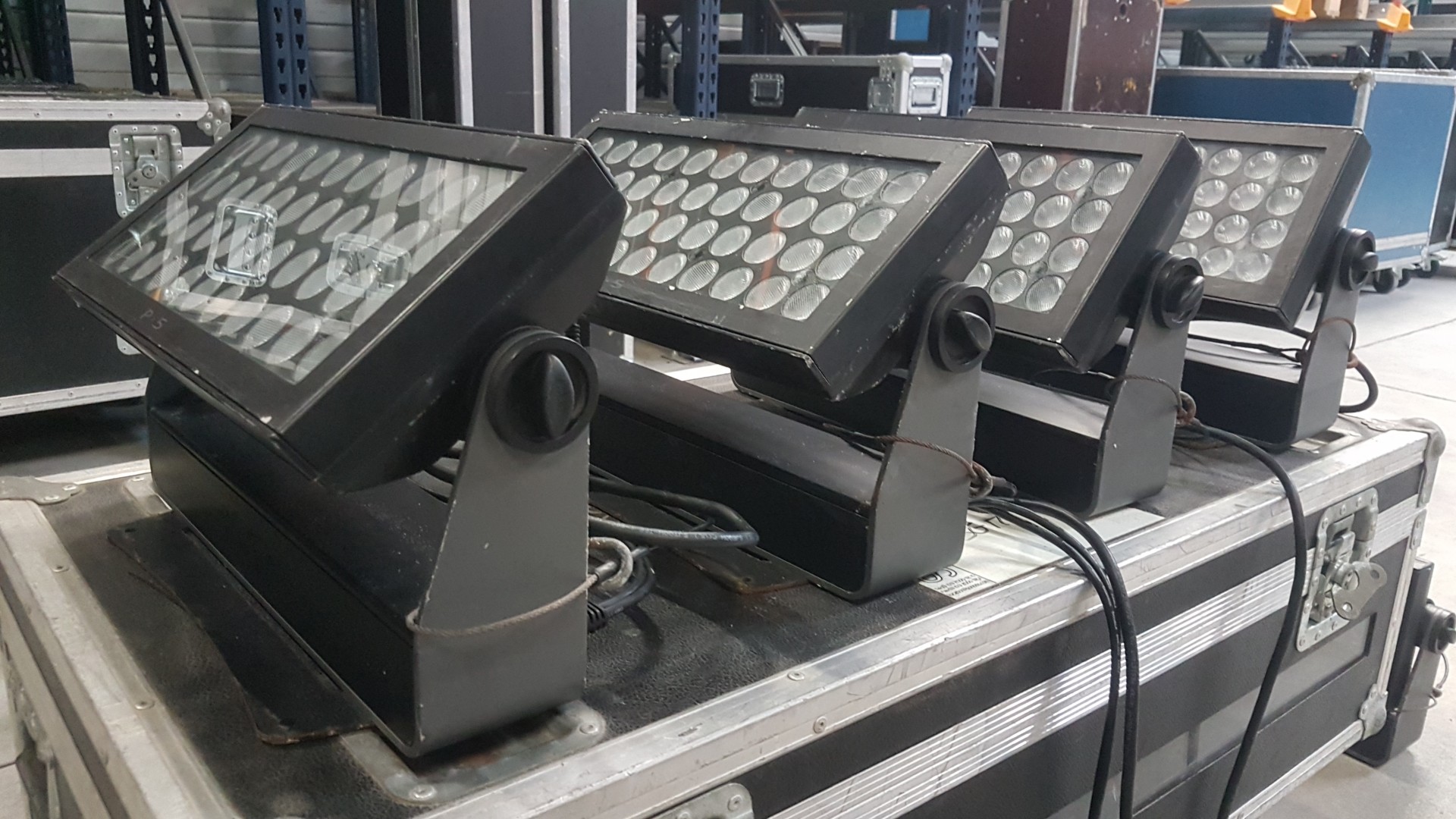

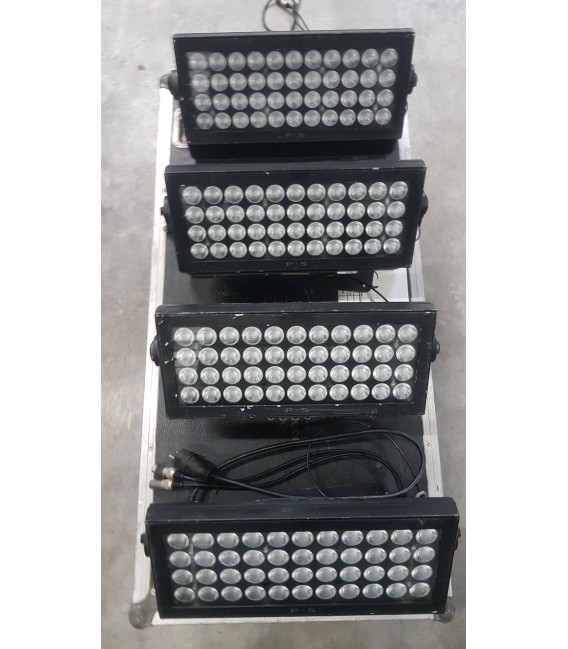

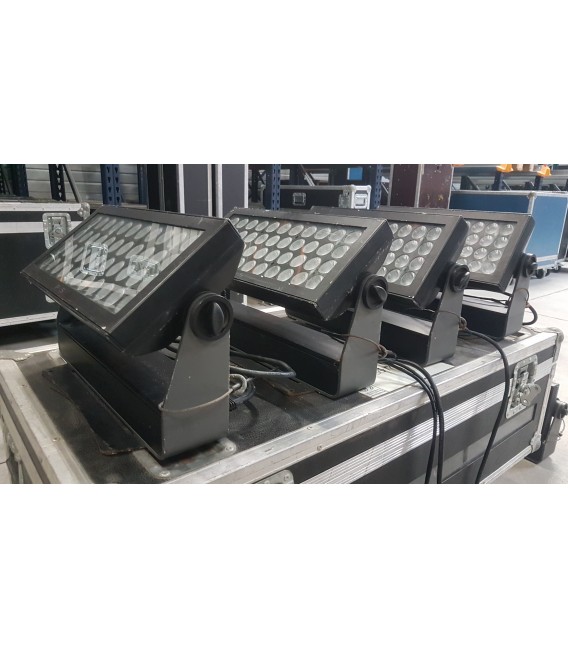

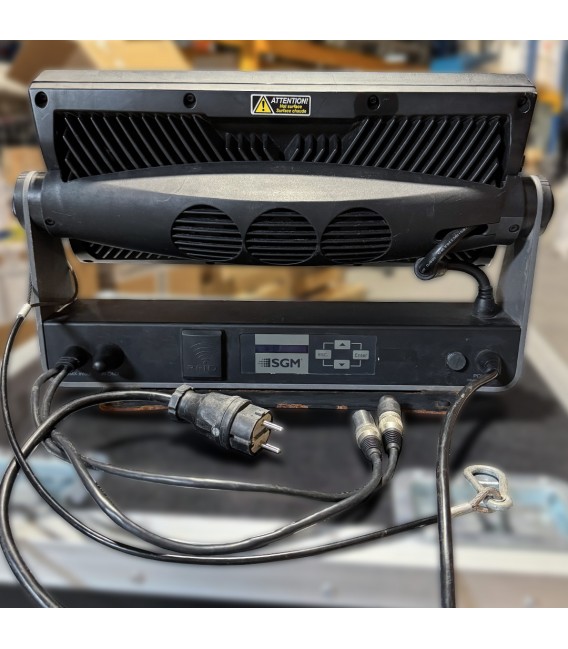

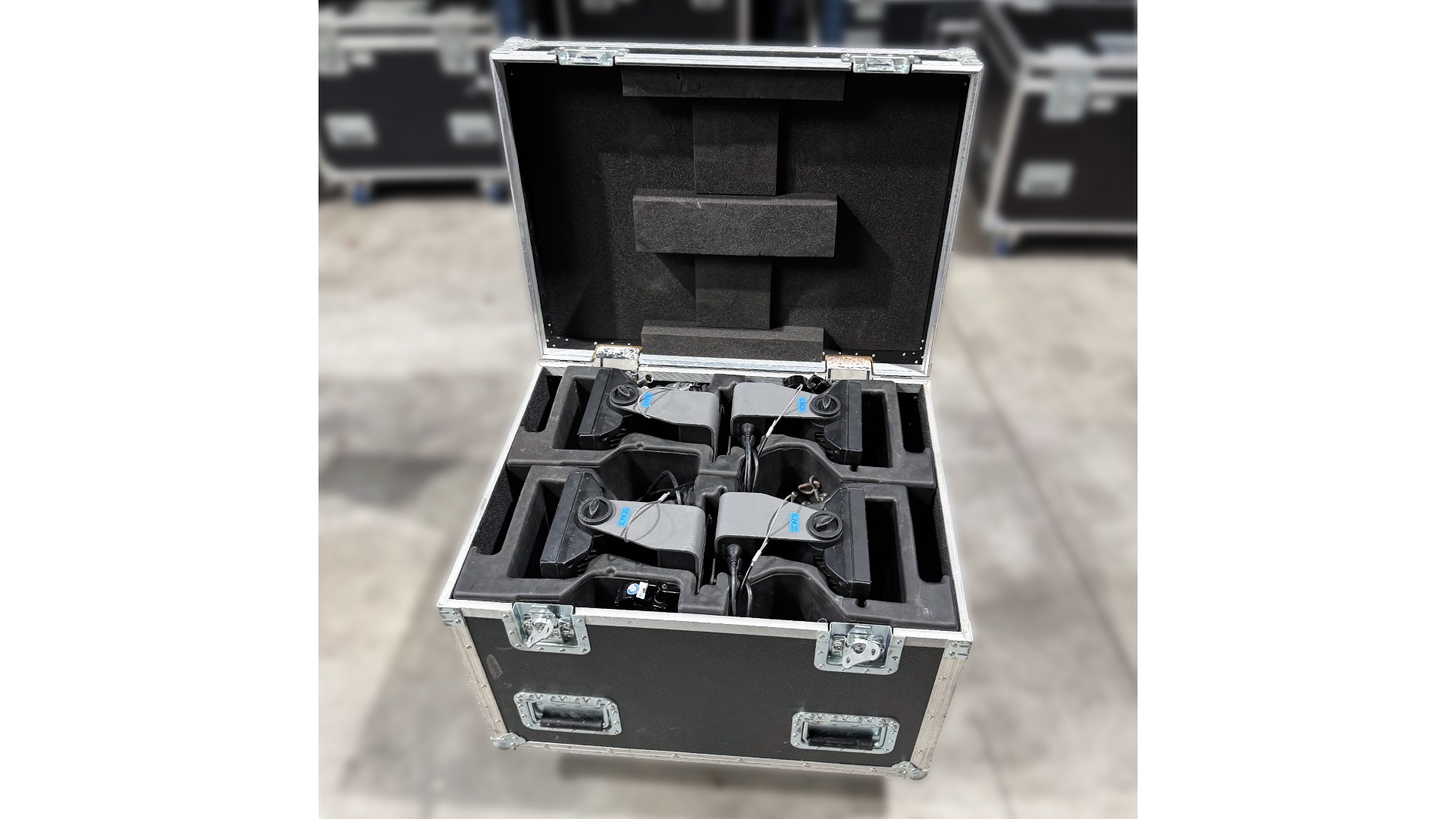

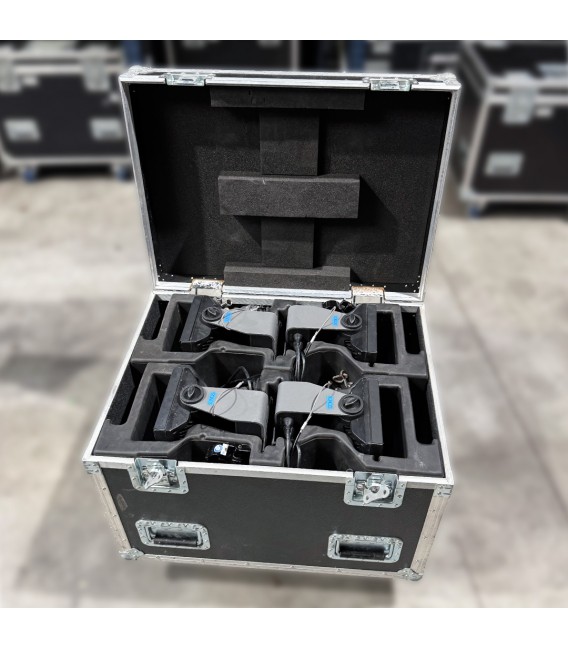

Used condition. Flight case for 4 units available.

Used

SGMP5

Availability: On Order

Used

750,00 €VAT ex.

900,00 €VAT incl.

- +

    • I I I I I

    Specifications
    Optical
    Source lumineuse44 x LEDs RGBW 10W

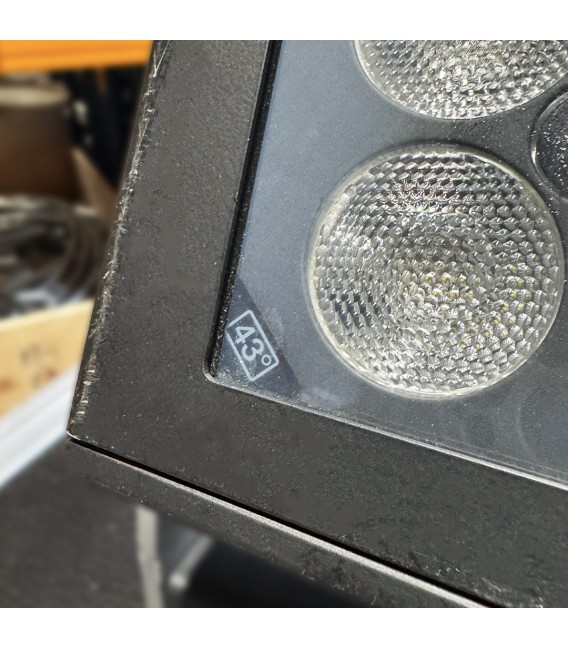

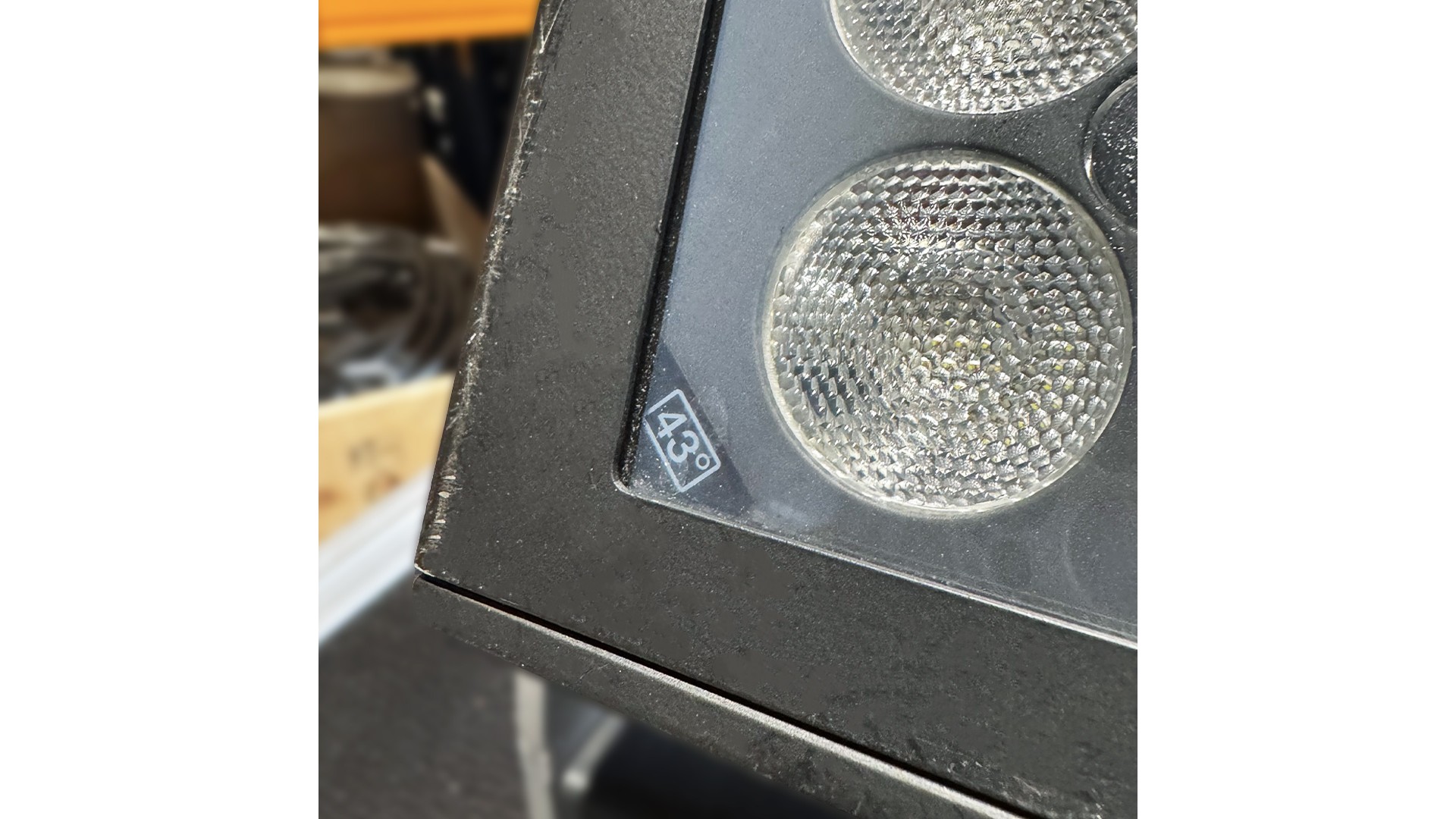

    Beam angle(s)15, 21 ou 43° (via lentille interchangeable)
    Interchangable lens option15°, 21° or 43°
    Photometric
    Total output19 300 lm (43° lens)
    Efficacity46 lm/W
    Colour temperature range2000K - 10000K
    Control & Program
    ProtocolUSITT DMX512A - CRMX - W-DMX™ G2/G3/G4/G4S

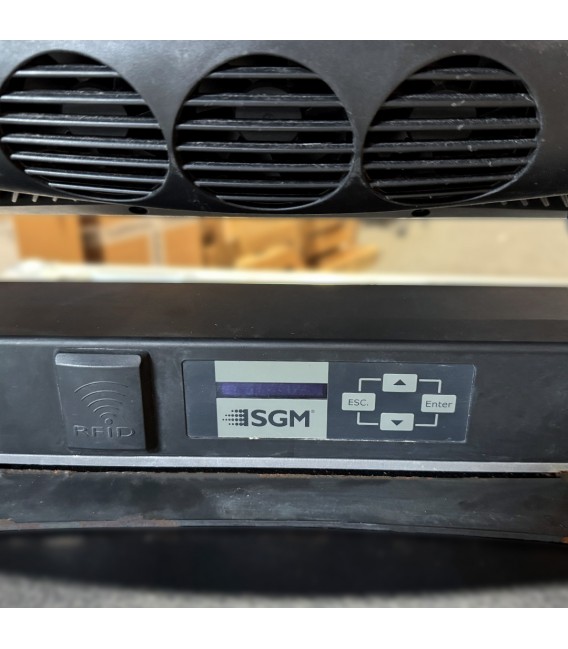

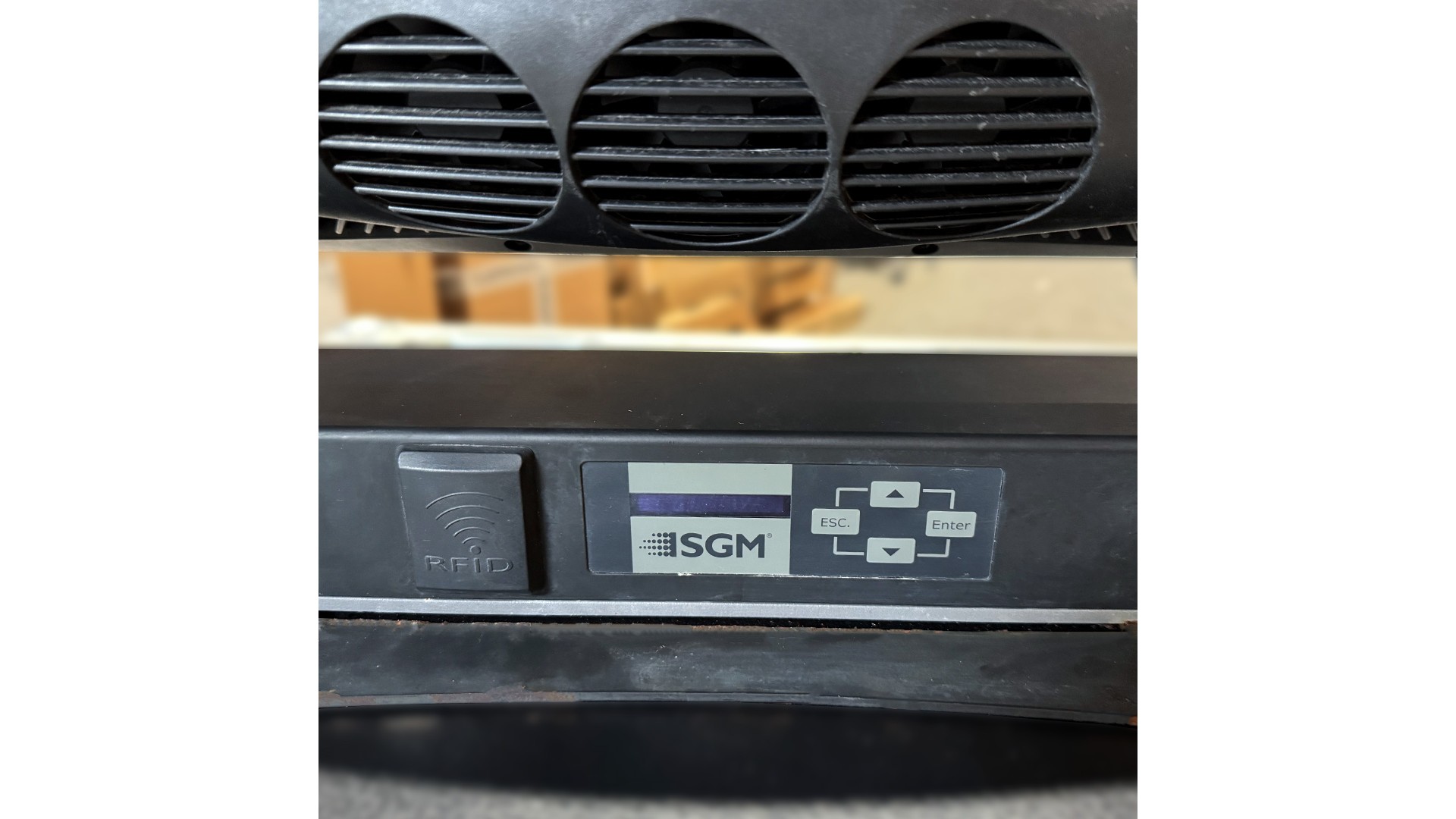

    Setting and addressingControl panel, RDM or RFID
    DMX channels3, 4, 6, 8, 9 or 10
    16-bit controlDimmer & colors
    Colour temperature control2000K - 10000K
    Wireless DMXLumenRadio CRMX
    Standalone modeQuick color - Up to 24 programmable scenes - Standalone mode programmable by RFID
    Connectivity
    Data (DMX)IP65 Neutrik HD locking XLR 5-pin cable, 0.5m
    Rigging possibilitiesFloor stand (included) or hanging (Omega clamps included)
    Mounting pointsFour times two quarter-turn locking points
    OrientationAny
    Minimum distance to combustible materials0.3 metre
    Minimum distance to illuminated surfaces0.3 metre
    Physical characteristics
    Height497 mm
    Width268 mm
    Depth122 mm
    Weight8.9 kg
    IP classIP65
    MaterialAluminium, tempered glass (lens)
    Environment
    Temperature range, Operating−40° to +50°C
    Temperature range, Start-up−20° to +50°C
    Temperature range, Storage−40° to +80°C
    CoolingActive, forced air, temperature-regulated, low noise
    Max. humidity98%
    Approvals
    2014/30/EU: EMC DirectiveEN 55103-1, EN 55103-2, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
    2014/35/EU: Low Voltage DirectiveEN 60598-1, EN 60598-2-17, EN 62471, EN 60529
    RoHS2 Directive2011/65/EU
    ULStandard 1573
    Additional information
    Included itemsTwo Omega brackets with 1/4-turn fasteners - Floor stand and screws - User manual - Wireless DMX antenna
    Fixture features
    Tilt0 - 190°
    DimmingElectronic
    StrobeUltra-high-speed strobe effect (1-50Hz)
    DehumidifierBase / Head
    Power
    Consumption450W
    AC Power, nominal208 - 240VAC 50/60 Hz
    Maximum inrush current @ 240VAC20A
    Power factor0.98 PF (230V)
    PowerPower cable 1m with bare end
